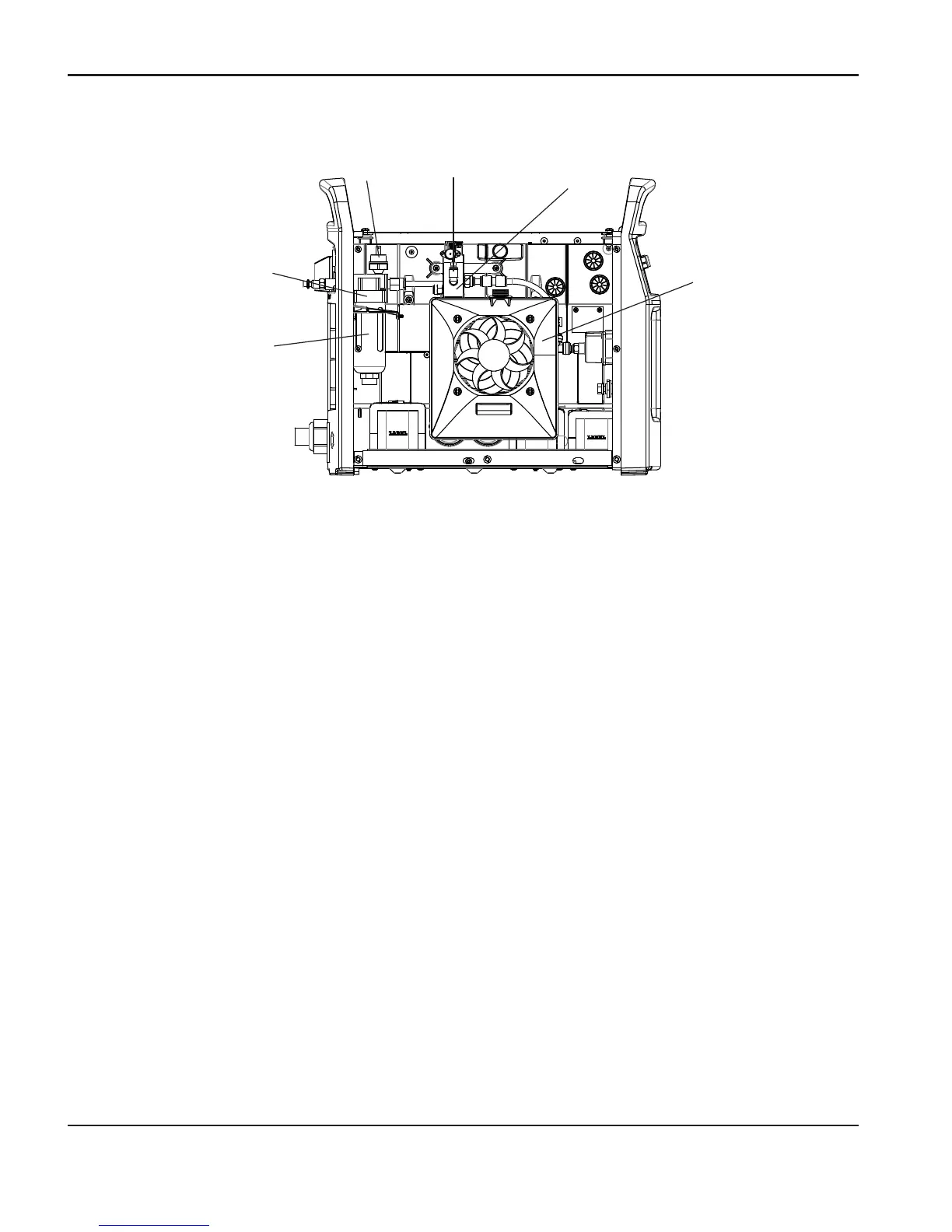

PARTS
6-4
powermax
65/85
Operator Manual
Air filter
Pressure
switch
Pressure
transducer
Solenoid
valve
Air filter element
(inside filter bowl)
Fan subassembly
Part number Description
228686 Kit: Powermax65/85 fan subassembly
228685 Kit: Powermax65/85 air filter
228695 Kit: Powermax65/85 air filter element
228688 Kit: Powermax65/85 pressure switch
228687 Kit: Powermax65/85 solenoid valve
228689 Kit: Powermax65/85 pressure transducer
