Hypertherm powermax45 Service Manual

Parts
powermax 45 Service Manual 7-3

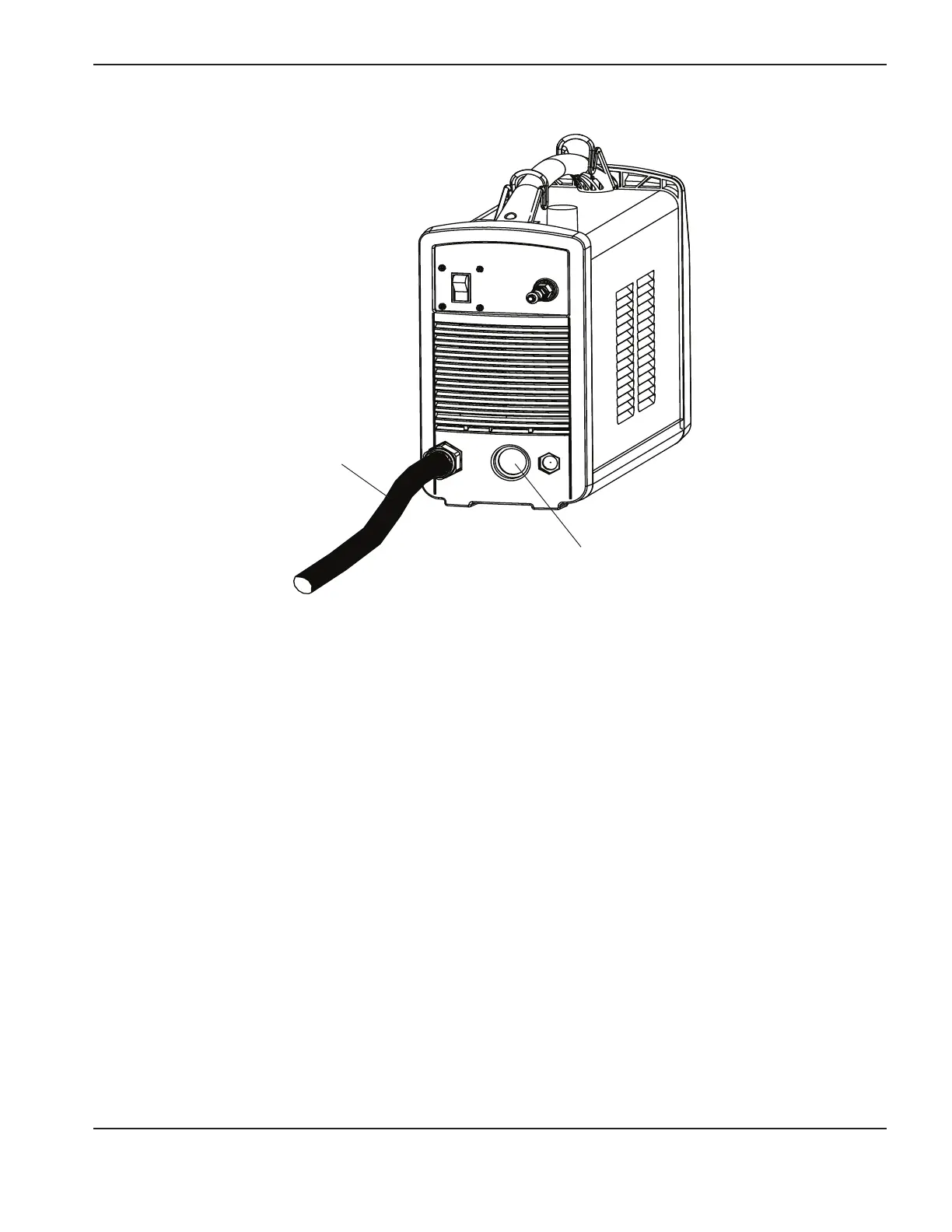

Power cord
Receptacle for machine interface cable
or remote start pendant
Part number Description
228278 Kit: CSA power cord, 1-phase, 200–240V, 3m (10feet)
228277 Kit: CE power cord, 1-phase, 230V, 3 m (10feet)
228276 Kit: CE power cord, 3-phase, 400V, 3 m (10feet)
428077 Kit: CSA power cord, 3-phase, 480V, 3 m (10feet)
023206 Machine interface cable (start plasma, arc transfer, and ground), 7.62m (25feet)
023279 Machine interface cable (start plasma, arc transfer, and ground), 15.24m (50feet)
123966 Powermax45 machine interface cable (start plasma, arc transfer, 50:1 voltage divider, and ground),
7.62m (25feet), spade connectors
123967 Powermax45 machine interface cable (start plasma, arc transfer, 50:1 voltage divider, and ground),
15.24m (50feet), spade connectors
223048 Machine interface cable (start plasma, arc transfer, 50:1 voltage divider, and ground), 7.62m
(25feet), D-sub connector with screws
123896 Machine interface cable (start plasma, arc transfer, 50:1 voltage divider, and ground), 15.24m
(50feet), D-sub connector with screws
