Hypertherm powermax45 Service Manual

PARTS
7-4 powermax 45 Service Manual
TP 19
W
-
+
-
+
TP 18
R
TP 17
B
192 VDC
192 VDC

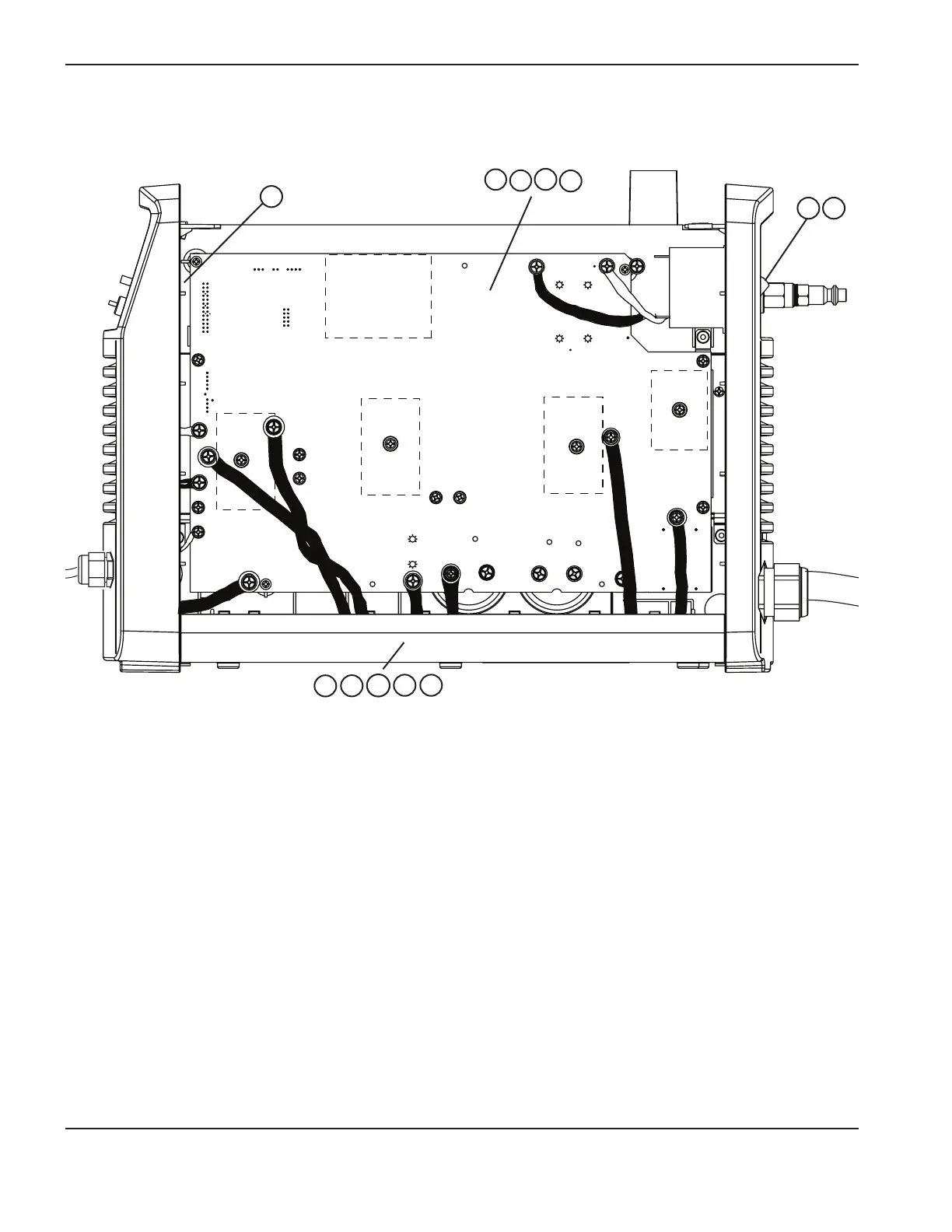

Interior, power board side
1
2
3
4
5
6
8
9
10
7
11
12
Item
Part
number Description Designator Qty.
1 228262 Kit: Control board, 200–240V CSA, 230V CE, 400V CE PCB1 1
428098 Kit: Control board, 480V CSA PCB1 1
2 228266 Kit: Powermax45 power switch, 200–240V CSA and 230V CE 1
3 228288 Kit: Powermax45 power switch, 400V CE and 480V CSA 1
4 228261 Kit: Power board, 200–240V CSA PCB2 1
5 428078 Kit: Power board, 480V CSA PCB2 1
6 228260 Kit: Power board, 400V CE PCB2 1
7 228259 Kit: Power board, 230V CE PCB2 1
8 228258 Kit: Base 1
9 228265 Kit: Magnetics assembly, 200–240V CSA 1
10 228273 Kit: Magnetics assembly, 230V CE 1
11 228263 Kit: Magnetics assembly, 400V CE 1
12 428079 Kit: Magnetics assembly, 480V CSA 1
228279 Kit: Powermax45 insulator (not shown) 1
228290 Kit: Powermax45 wire group (not shown) 1
