Parts

powermax

Service Manual 7-5

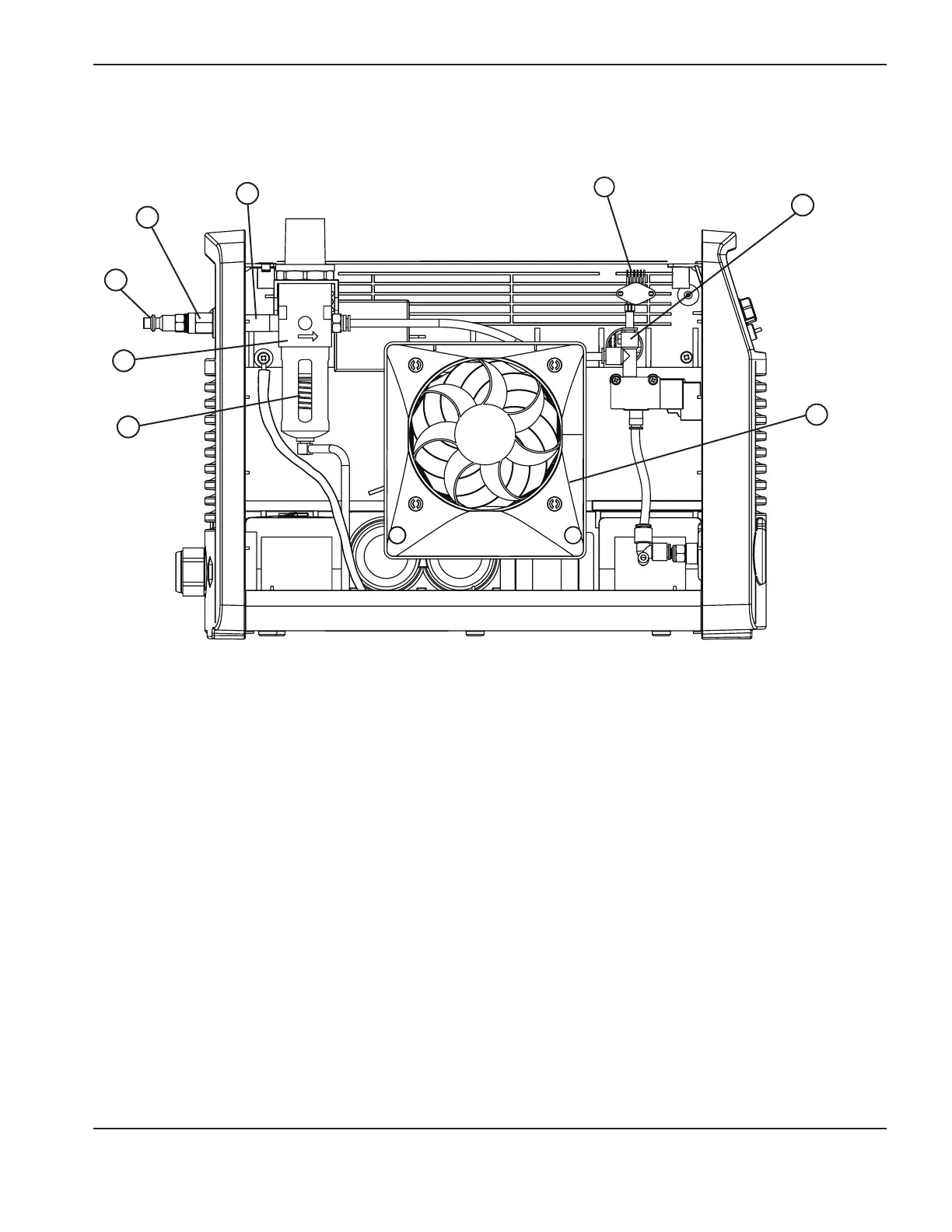

Interior, fan side

Item

Part

number Description Designator Qty.

1 228284 Kit: Pressure sensor cable 1

2 228285 Kit: Solenoid valve V1 1

3 015337 Quick disconnect, 1/4”, NPT, stainless nipple 1

4 015551 1/4” brass coupling 1

5 015511 1/4” X 2” brass nipple 1

6 228287 Kit: Filter and regulator 1

7 228302 Kit: Air filter element 1

8 228286 Kit: Fan assembly M1 1
