Hypertherm powermax45 Service Manual

Parts
powermax 45 Service Manual 7-11

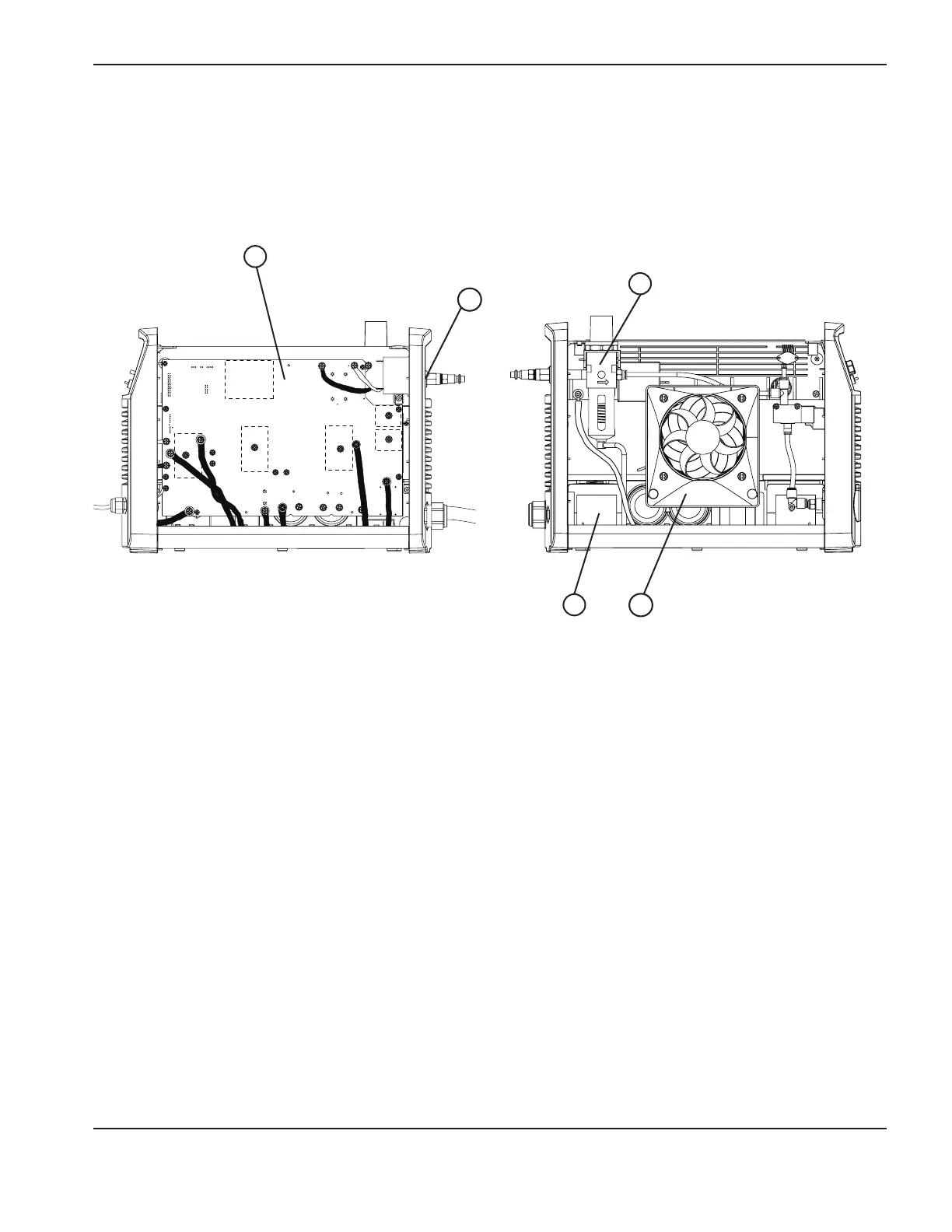

Safety-critical parts
Genuine Hypertherm parts are the factory-recommended parts for your Hypertherm system. Any damage caused by the
use of other than genuine Hypertherm parts may not be covered by the Hypertherm warranty. In addition, the parts listed
below are considered safety-critical parts that must be replaced only with Hypertherm parts to maintain the warranty and
all system certifications, including CE, CSA, GOST, and CCC certification.
1
2
3
4
TP 19
W
-
+
-
+
TP 18
R
TP 17
B
192 VDC
192 VDC
Item Part number Description
1 228261 Kit: Power board (200–240V CSA) and subcomponents
228260 Kit: Power board (400V CE) and subcomponents
228259 Kit: Power board (230V CE) and subcomponents
428078 Kit: Power board (480V CSA) and subcomponents
2 228265 Kit: Magnetics assembly, 200–240V CSA
228273 Kit: Magnetics assembly, 230V CE
228263 Kit: Magnetics assembly, 400V CE
428079 Kit: Magnetics assembly, 480V CSA
3 228287 Kit: Filter and regulator
4 228286 Kit: Fan assembly
5 228266 Kit: Powermax45 power switch, 200–240V CSA and 230V CE
228288 Kit: Powermax45 power switch, 400V CE and 480V CSA
228278 Kit: CSA power cord, 1-phase, 200–240V, 3m (10feet) (not shown)
228277 Kit: CE power cord, 1-phase, 230V, 3m (10feet) (not shown)
228276 Kit: CE power cord, 3-phase, 400V, 3m (10feet) (not shown)
428077 Kit: CSA power cord, 3-phase, 480V, 3m (10feet) (not shown)
5
