Hypertherm powermax45 Service Manual

PARTS
7-2 powermax 45 Service Manual

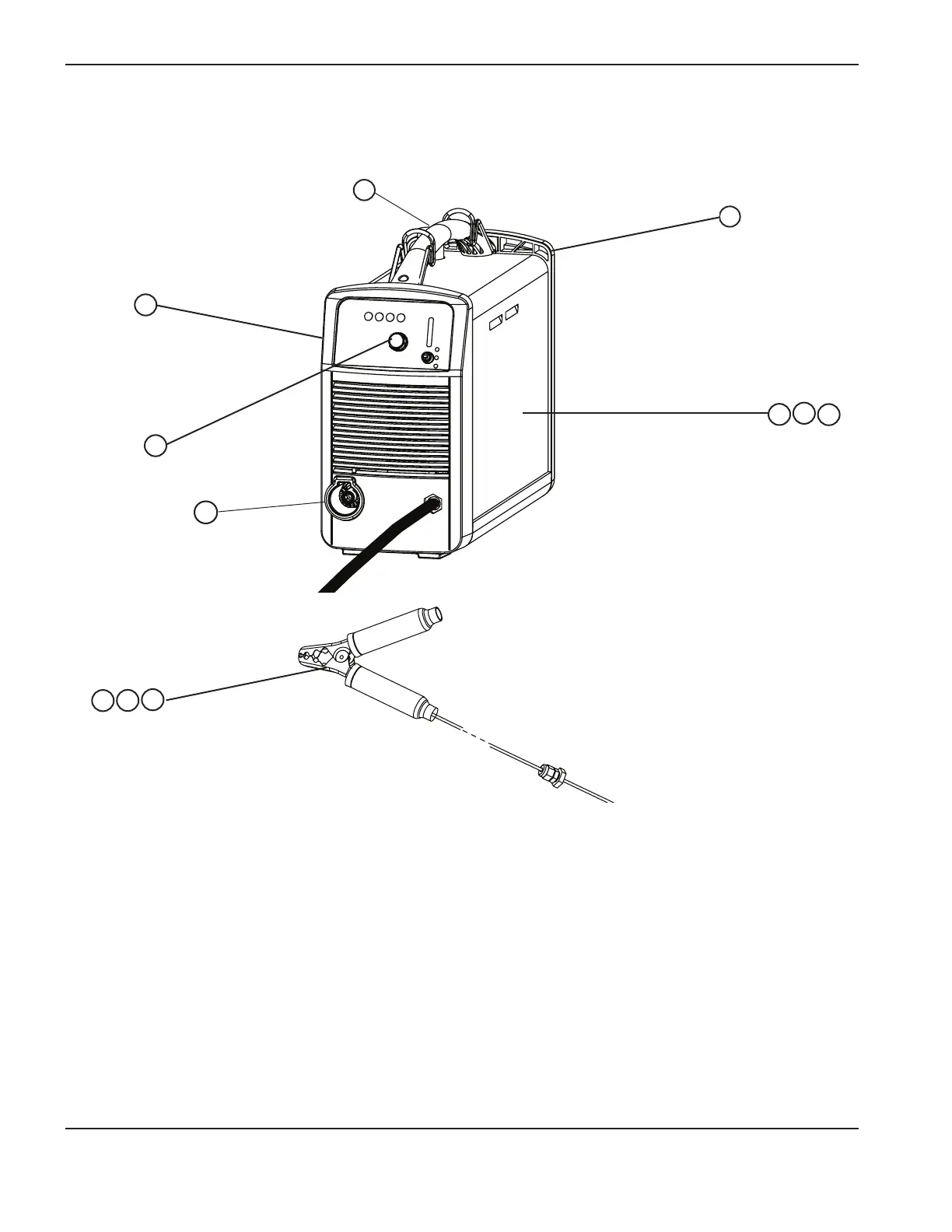

Power supply parts
Exterior
1
2
3
4
5
6
7
8
9
10
11
Item Part number Description Qty.
228270 Kit: Cover screws 1
1 228269 Kit: Front panel 1
2 108616 Current adjustment knob 1
3 228300 Kit: Work lead assembly, 6.1 m (20 feet) 1
4 228307 Kit: Work lead assembly, 15.24 m (50 feet) 1
5 228281 Kit: Power supply cover with labels, 200–240V CSA 1
6 228283 Kit: Power supply cover with labels, CE 1
7 428076 Kit: Power supply cover with labels (Built in America), 480V CSA 1
8 228268 Kit: Rear panel 1
9 228267 Kit: Powermax45 handle and screws 1
10 228282 Kit: FastConnect
TM
replacement (power supply half) 1
11 228561 Kit: Ground clamp 1
