Hypertherm powermax45 Service Manual

torch setup

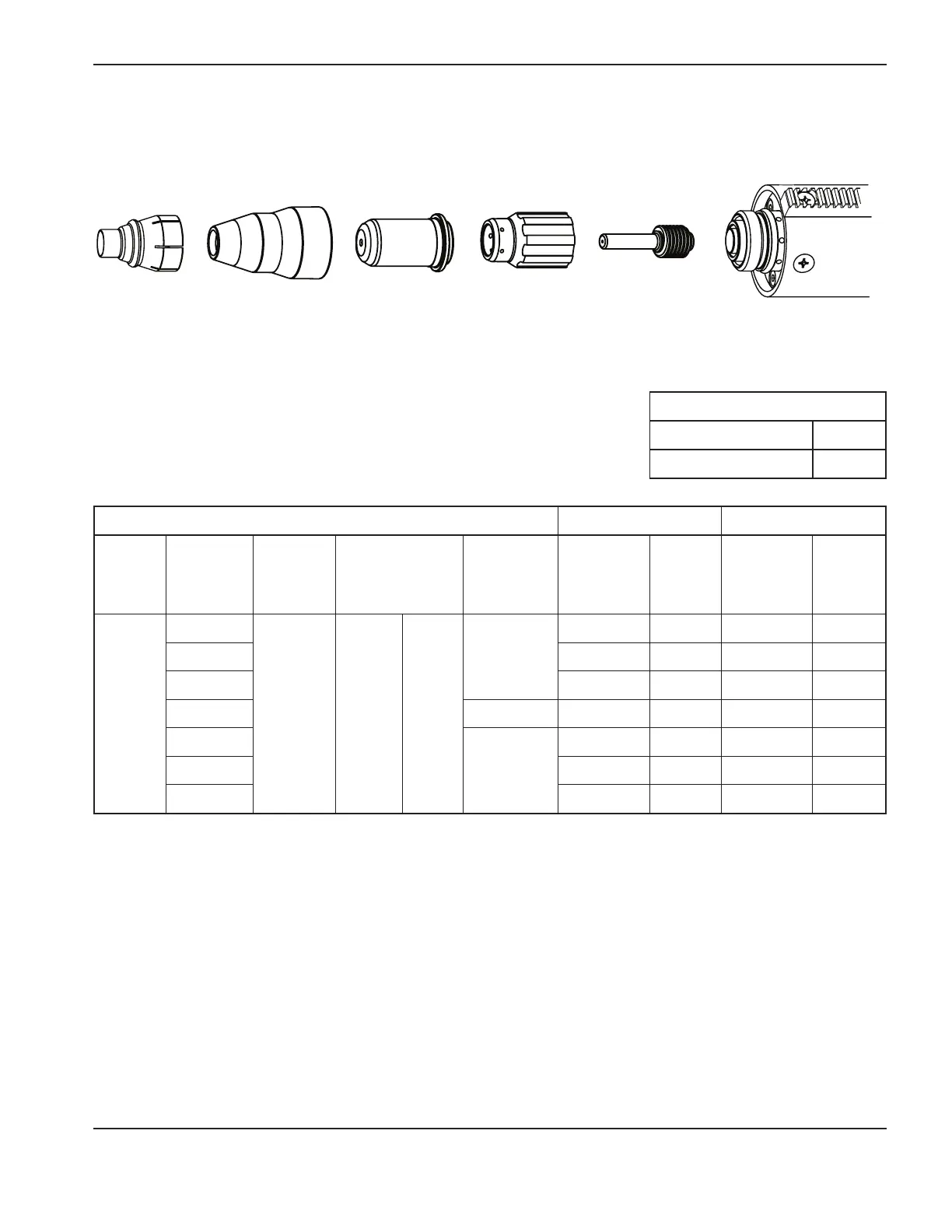

powermax 45 Service Manual 3-21
T30v (Powermax30) 30A consumables
220483
Retaining cap
220480
Nozzle
220478
Electrode
220479
Swirl ring
220569
Optional deflector
Mild steel
Air flowrate (lpm)
Metric
Hot 131.2
Cold 146.3
Recommended Maximum
Arc
current
(amps)
Material
thickness
(mm)
Torch-
to-work
distance
(mm)
Initial pierce
height
Pierce time
delay
(sec)
Cut Speed
(mm/min)
Voltage
(V)
Cut Speed
(mm/min)
Voltage
(V)
30
0.5
0.5 2.5 mm 500%
0.0
8900 105 10160* 98
0.8 8100 102 10160* 103
0.9 7100 101 8900 100
1.5 0.2 4450 97 5600 100
1.9
0.4
3050 98 3800 97
2.7 2050 96 2550 96
3.4 1270 100 1650 101
*Maximum cut speed is limited by the test table’s maximum speed (10160 mm/min).
