Hytera PT580 - Disassembling the Middle Shielding Case; Disassembling the FPC for Earpiece

Service Manual

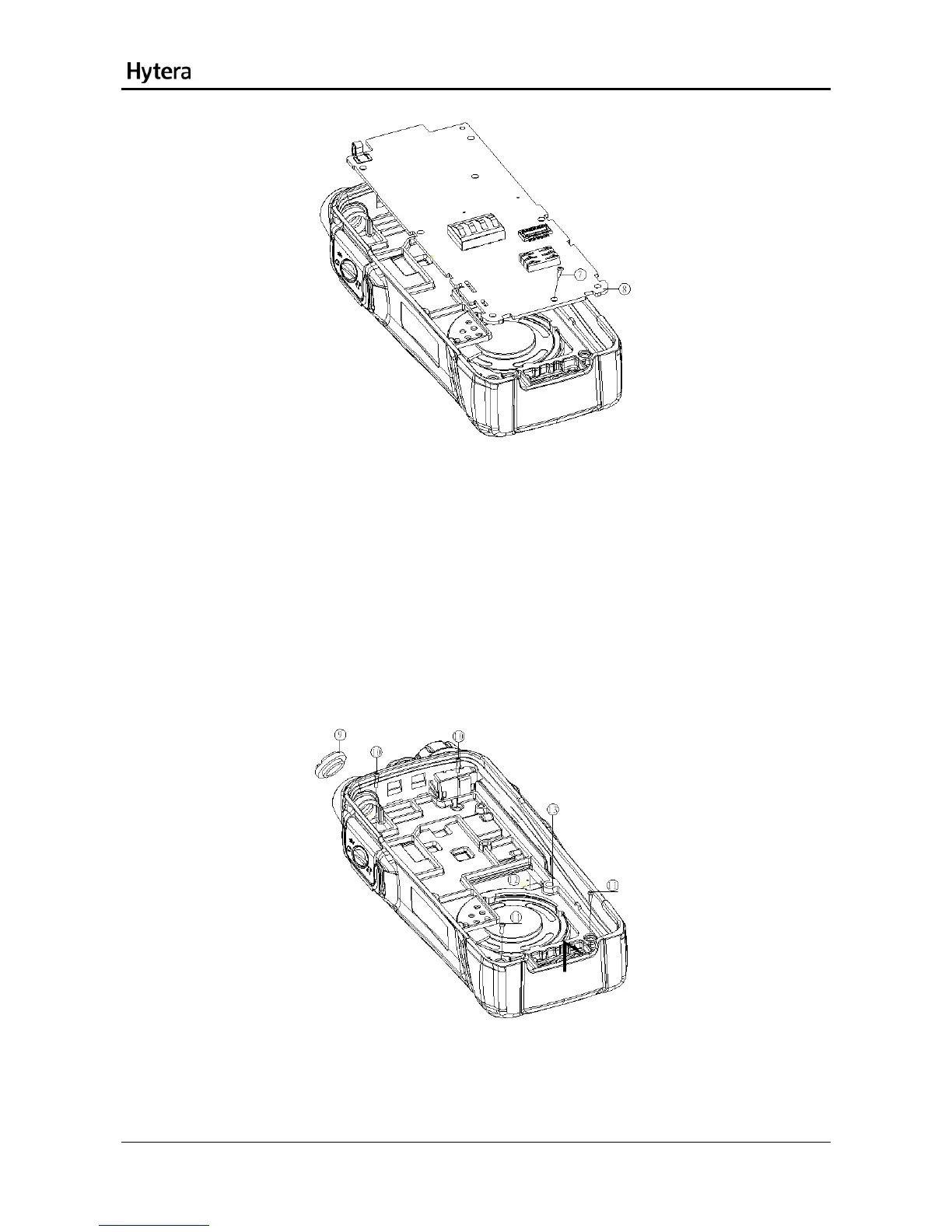

Disassembling the Middle Shielding Case
1. Remove the antenna nut
○
9.
2. Remove the two screws
○
10 .
3. Remove the two screws
○
11 .
4. Remove the board-to-board connector
○
12 .
5. Take the middle shielding case out
○
13 .
Disassembling the FPC for Earpiece
1. Remove the two board-to-board connectors
○
14 .
45
