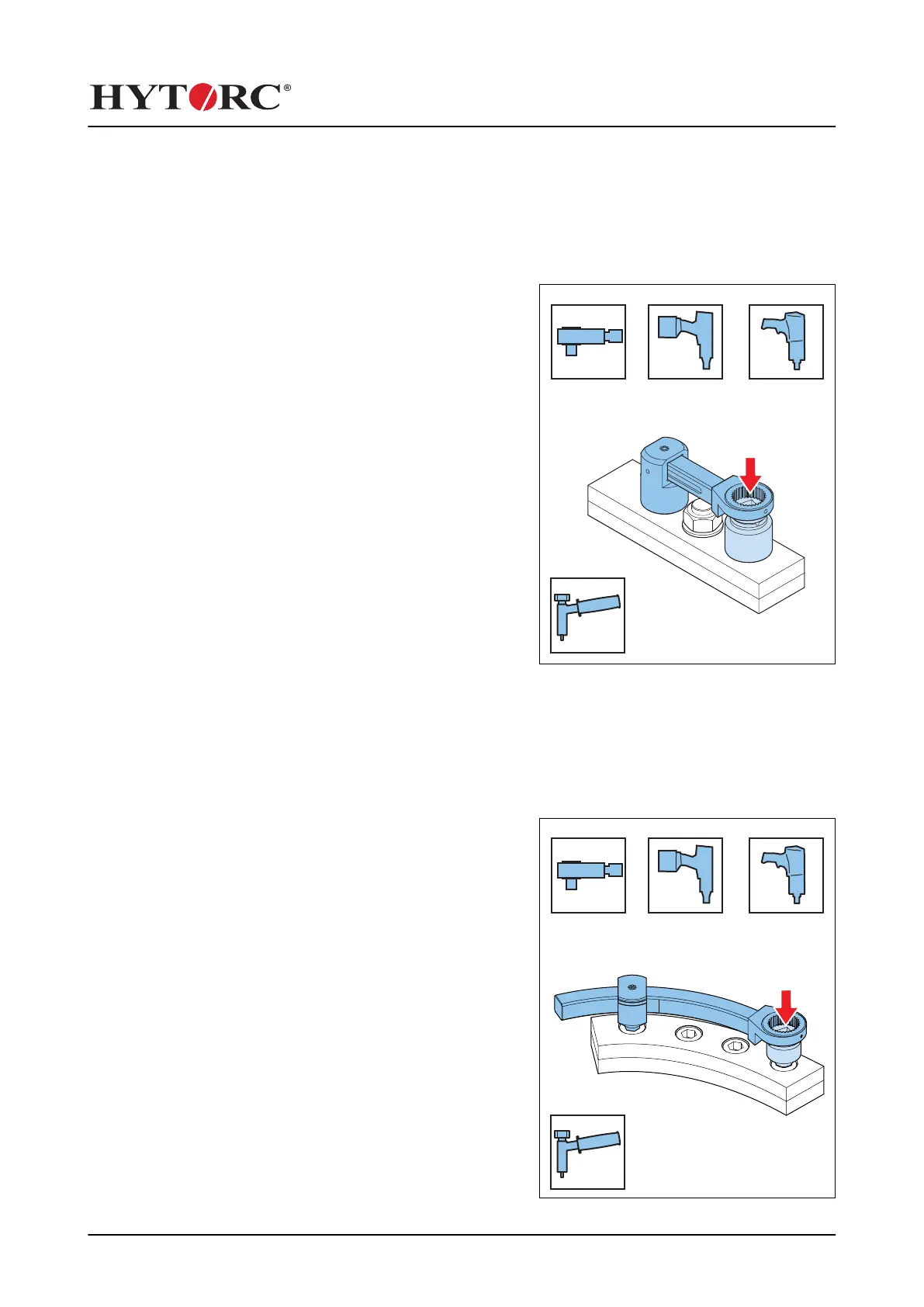

5.4 Straight WTCT reaction arm with reaction cup
The length of the reaction arm is adjustable. One standard heavy-duty socket must be
used together with the reaction arm.
Procedure
1. Place the socket over the nut as far
as possible.
2. Place the reaction arm as shown.
3. For the lowest reaction force,
choose a reaction point as far away
as possible.
4. Make sure that the reaction pin cup
is placed over the reaction point
completely.
5. Place the tool as shown.
6. For more convenience, place the
safety handle as shown.
5.5 Curved WTCT reaction arm with reaction pin cup
The length of the reaction arm is adjustable. One standard heavy-duty hex socket must
be used together with the reaction arm.
Procedure
1. Place the male hex socket in the
bolt head as far as possible.
2. Place the reaction arm as shown.
3. For the lowest reaction force,
choose a reaction point as far away
as possible.
4. Make sure that the reaction pin cup
is placed into the bolt head
completely.
5. Place the tool as shown.
6. For more convenience, place the
safety handle as shown.
+\GUDXOLF (OHFWULF 3QHXPDWLF
+\GUDXOLF (OHFWULF 3QHXPDWLF
Reaction arms
47 - 001 - 23
