7 Operation
7.1 Inspections before use
Make sure that:
• the air supply is correct.
• the air supply is fully unrolled and not kinked, twisted or damaged.
• all couplings and other connections are tight and not damaged or deformed.
• the pneumatic hoses are securely connected and not kinked, twisted or damaged.
• all moving parts of the tool are clean and sufficiently lubricated with a high-quality
lubricating oil (Shell Tellus S2 VX 32).
• the oil level in the oil filter reservoir is between the minimum mark and the maximum
mark.
• the air lubrication knob is set to four drops per 60-90 seconds.
• the reaction arm is placed against a solid reaction point and secured to the tool.
• the socket has the correct size and is secured to the tool.
• all securing clips, securing pins and securing screws are fitted and secured to the air
supply, FRL, the pneumatic hoses, the tool, the reaction arm and the socket.
• all water, if present, is drained from the filter reservoir.
• the pressure gauge does not leak. Signs of leakage are a decrease in the level of
glycerin in the pressure gauge or the pressure gauge filled with lubrication oil.
7.2 Determining the gearbox mode (Dual Speed and Nut Runner)
The tool has a gearbox with two modes that are shown by a sticker:
• Rundown Mode: Select this mode to run a nut into the position for final torqueing.
• Torque Mode: Select this mode for final torqueing.
Procedure

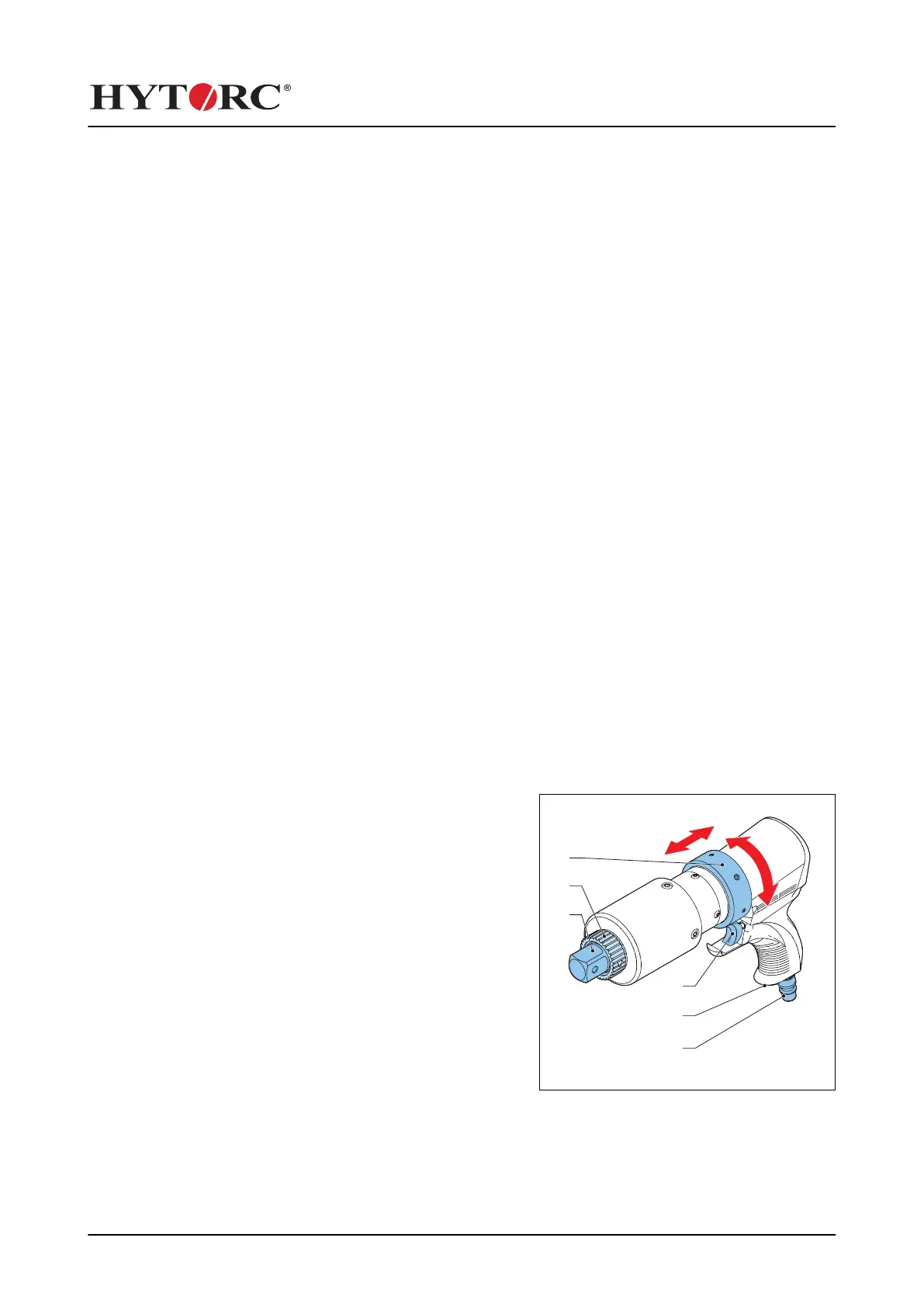

1. To select Rundown Mode, set the
gearbox switch (F) to the
RUNDOWN position.
a) Push and turn the gearbox
switch (F) counterclockwise
towards the square drive (D).
The blue line is shown.
b) When the gearbox switch (F)
does not engage, pull the
trigger switch (A) briefly.
2. To select Torque Mode, set the
gearbox switch (F) to the TORQUE
position.
a) Pull and turn the gearbox
switch (F) clockwise away from
the square drive (D).
The red line is shown.
b) When the gearbox switch (F) does not engage, pull the trigger switch (A) briefly.
