6 Securing the sockets and reaction arms
Sockets and reaction arms must be secured to prevent injuries and damage to the
equipment.
There are different types of heavy-duty sockets to use with the tool:
1. 6-point sockets / 12-point sockets (regular / high)
2. 6-point hex sockets / 12-point hex sockets (regular / high)
3. Eccentric sockets
4. Customized sockets
The heavy-duty sockets are available in the sizes 1/2", 3/4", 1", 1 1/2", 2 1/2" and 3 1/2".
Warning:
• Do not use sockets that are used on impact wrenches.

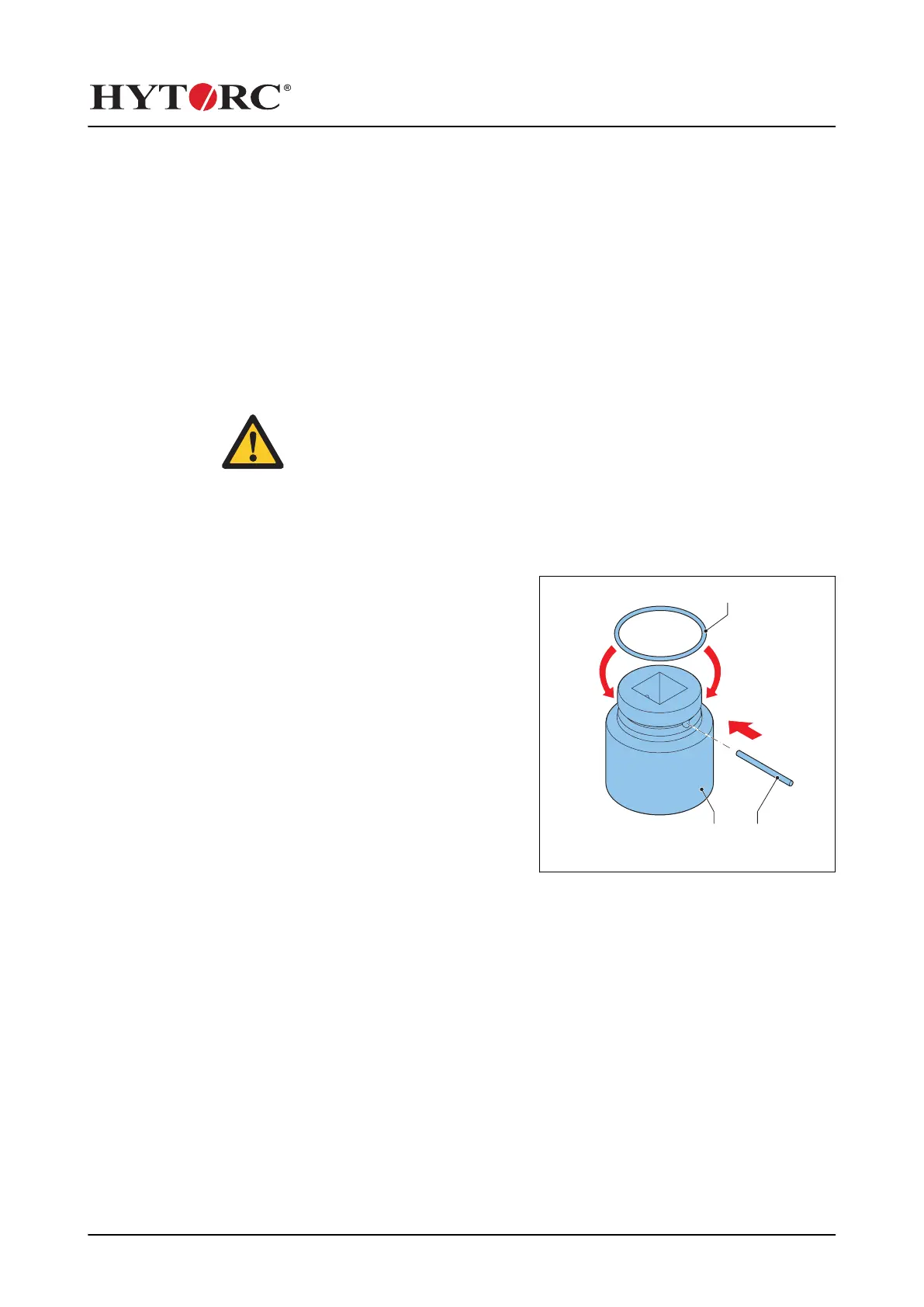

6.1 Securing the socket (type 1)
Procedure
1. Slide the securing pin (B) into the
socket (A) as shown.
2. Fit the rubber ring (C) to the socket
(A) as shown.
Securing the sockets and reaction arms
47 - 001 - 31
