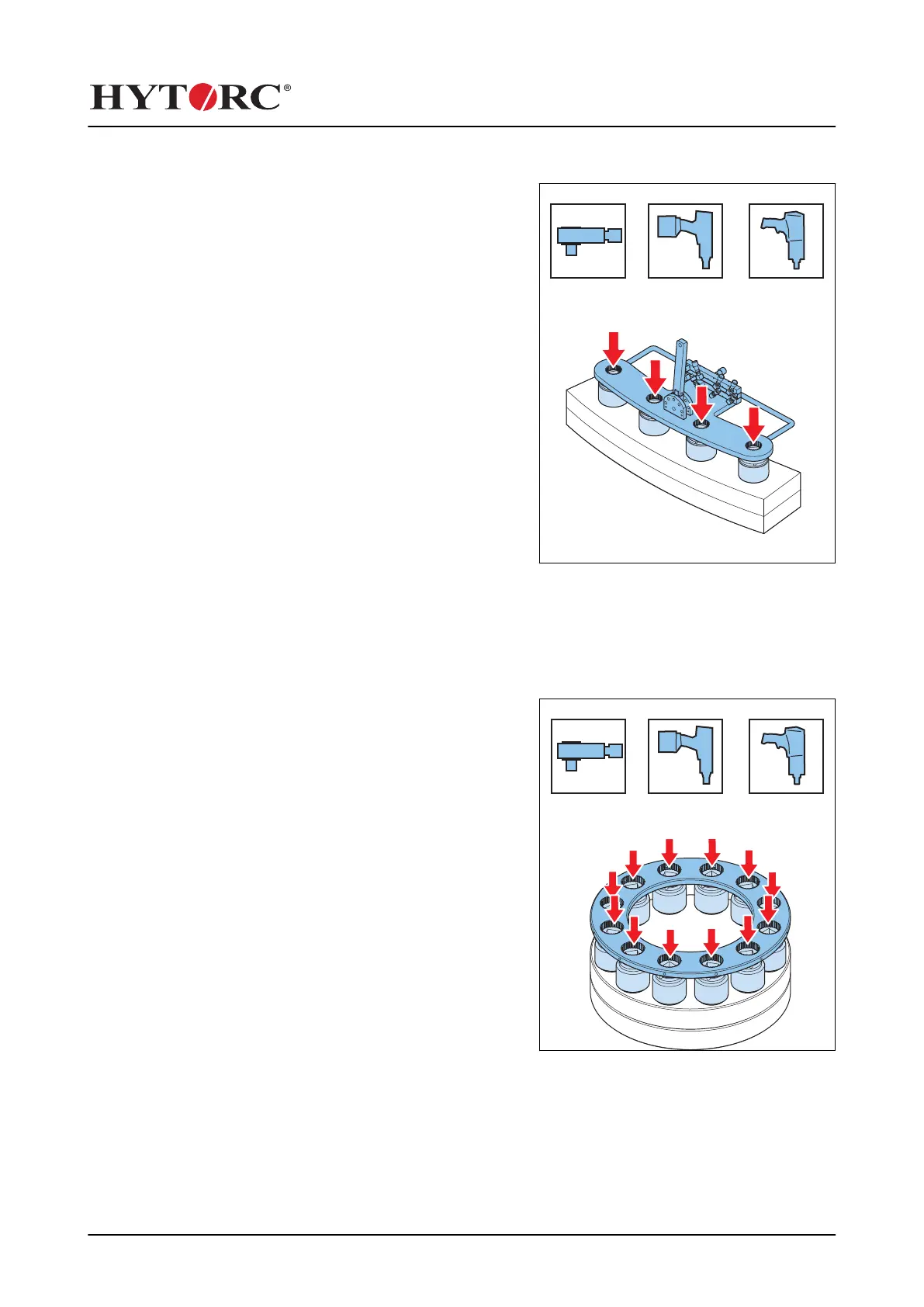

Procedure
1.
Place the sockets over the nuts as
far as possible.
2.
Place the reaction arm as shown.
3.
Place the tools as shown.
5.11
Reaction ring
Multiple standard heavy-duty sockets must be used together with the reaction arm.
Procedure
1.
Place the sockets over the nuts as
far as possible.
2.
Place the reaction arm as shown.
3.
Place the tools as shown.
+\GUDXOLF
(OHFWULF
3QHXPDWLF
+\GUDXOLF
(OHFWULF
3QHXPDWLF
Reaction arms
47 - 001 -
27
26
28
Table of Contents
Default Chapter
3
Table of Contents
3
1 About the Document
6
Purpose of the Document
6
How to Work with the Document
6
Languages
6
Illustrations
6
Safety Symbols in the Document
6
Related Documents
7
Revision History
7
Contact Information
7
2 Safety
8
General Safety Instructions
8
Personnel
8
Work Area
8
Equipment
8
Additional Safety Instructions
9
Frl
9
Pneumatic Hoses
9
Reaction Arms
9
Sockets
10
Safety Symbols on the Tool
11
Qualified Personnel
11
Liability
11
3 Description
12
Intended Use
12
Overview
12
Filter Regulator Lubricator (FRL)
12
Pneumatic Socket Wrench
14
Accessories
14
Safety Lever
14
Low-Noise Muffler
15
Silencer System
16
Boltsafe Load Tester
16
4 Installation
18
Pneumatic Hoses
18
Pneumatic Hose Connections
18
Connecting the Pneumatic Hoses
18
Disconnecting the Pneumatic Hoses
19
Connecting the Air Supply
19
5 Reaction Arms
21
Standard Reaction Arm (360°)
21
Standard Reaction Arm (360° X 360°)
21
Straight TPF Reaction Arm
22
Straight WTCT Reaction Arm with Reaction Cup
23
Curved WTCT Reaction Arm with Reaction Pin Cup
23
Curved Reaction Arm with Dual-End Reaction Cup
24
Reaction Arm for Recessed Installation
24
Fixed Length
24
Adjustable Length
25
Straight Dual-Tool Interconnect Reaction Arm
25
U-Shaped Dual-Tool Interconnect Reaction Arm
26
Multi-Tool Interconnect Reaction Arm
26
Reaction Ring
27
Reaction Strip (Recessed Bolt Heads)
28
HYTORC Washer ™ Double-Drive Socket
28
HYTORC Loaddisc ™ Double-Drive Socket
28
HYTORC Nut ™ Drive
29
Offset-Link
30
6 Securing the Sockets and Reaction Arms
31
Securing the Socket (Type 1)
31
Securing the Sockets (Type 2)
32
Securing the Reaction Arm Onto the Spline Shaft
32
7 Operation
33
Inspections before Use
33
Determining the Gearbox Mode (Dual Speed and Nut Runner)
33
Torque
34
Pressure/Torque Chart
34
Setting the Torque
34
Direction of Rotation
35
Determining the Direction of Rotation
35
Changing the Direction of Rotation
35
Tightening and Loosening a Bolted Flange Connection
35
Tightening a Bolted Flange Connection
36
Loosening a Bolted Flange Connection
36
8 Maintenance
37
Preventive Maintenance
37
Maintenance by HYTORC
37
Filling the Oil Filter Reservoir
37
Draining the Water Filter Reservoir Manually
37
9 Troubleshooting
39
10 Technical Data
40
Single Speed
40
Jgun J-.25
40
Jgun J-.5
40
Jgun J-1
41
Jgun J-2
41
Jgun J-3
41
Jgun J-5
41
Jgun J-8
42
Dual Speed
42
Jgun DSP-5
43
Jgun DSP-1
43
Jgun DSP-2
43
Jgun DSP-3
43
Jgun DSP-8
44
Nut Runner
44
Jgun J-A1-AP-WG
44
Jgun A1-Z
45
Physical Conditions
45
Maximum Torque Values (Male Hex Sockets)
45
11 Declaration of Conformity
47
