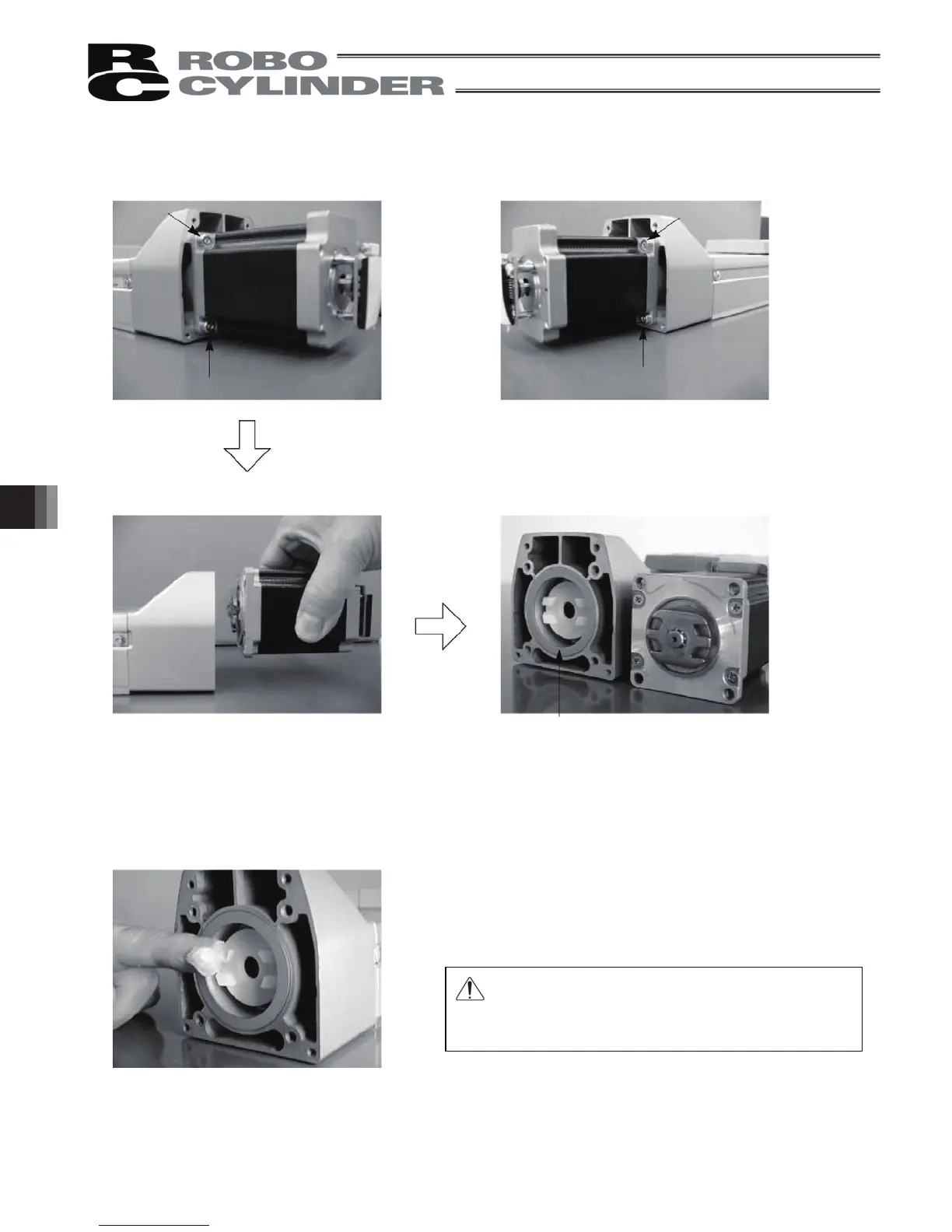

9. Maintenance and Inspection
Pilot alignment metal
If this metal is attached on the decoupled
motor, put it back to the pilot on the actuato
side.
Kyodo Yushi’s Multemp LRL3 has been
applied before shipment.
5) Remove the motor.
䈄
Remove the affixing bolts (M4 × 15, 4 pcs.) using an Allen wrench of 3 mm across flats.
• Decoupled motor
6) Apply grease to the coupling on the actuator side.
• Pull out the motor by hand.
Warning: Never use any fluorine-based grease.
It will chemically react with lithium-based
grease and damage the actuator
To Next Page
