64
9. Maintenance and Inspection
9.9 Reduction Belt [Motor Reversing Type]:
SA5R, SA6R, SA7R, SS7R, SS8R, HS8R
9.9.1 Inspecting the Belt
Remove the pulley cover and visually inspect the belt.
Durability of the reduction belt is affected significantly by the operating condition, and there is no standard
guideline as to when the belt should be replaced.
Generally, the belt is designed to withstand several millions of flexing loads.
As a practical guideline, replace the reduction belt when any of the conditions listed below are observed:
• The teeth and end faces of the belt have worn significantly.
• The belt has swollen due to deposits of oil, etc.
• Cracks and other damages are found on the teeth or back of the belt.
• The belt has broken.
9.9.2 Applicable Belt
Supplier: Bando Chemical Industries
60S2M184R 16mm wide: Rubber STS clean type specification
60S2M184R 16mm wide: Rubber STS clean type specification
150S3M255U 15mm wide: Polyurethane rubber specification
100S3M219U
10mm wide: Polyurethane rubber specification

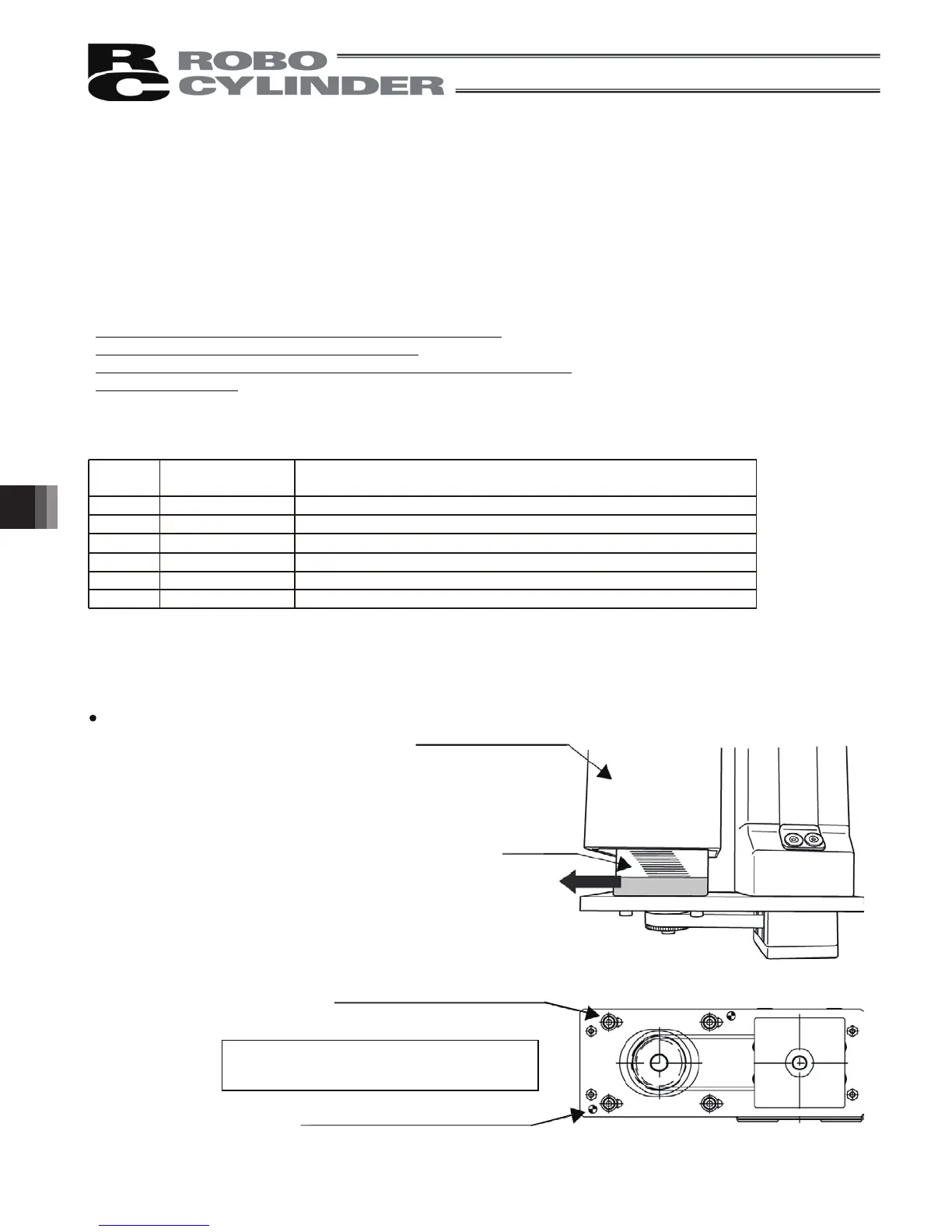

9.9.3 Adjusting the Belt Tension
Remove the pulley cover and loosen the four tension adjusting bolts. Apply a tensile load to the belt by moving the
motor to the left and tighten the tension adjusting bolts.
SA5R, SA6R
Move the motor cover.
Motor
Tensile load:
Tension adjusting bolts (4 pcs.)
Use an Allen wrench of 2.5mm
across flats.
Motor-cover affixing bolts (2 pcs.)
Tension adjusting bolt tightening torque:
162N･cm (16.5Kgf･cm)
2.5Kgf
IAI Maintenance
Parts Model
Supplier ModelModel
TB-RCP2-SA5RSA5R
TB-RCP2-SA6RSA6R
TB-RCP2-SA7RSA7R
TB-RCP2-SA8RSA8R
150S3M252U 15mm wide: Polyurethane rubber specification
150S3M252U 15mm wide: Polyurethane rubber specification
TB-RCP2-SS8RSS8R
TB-RCP2-HS8RHS8R
To Next Page
