9. Maintenance and Inspection

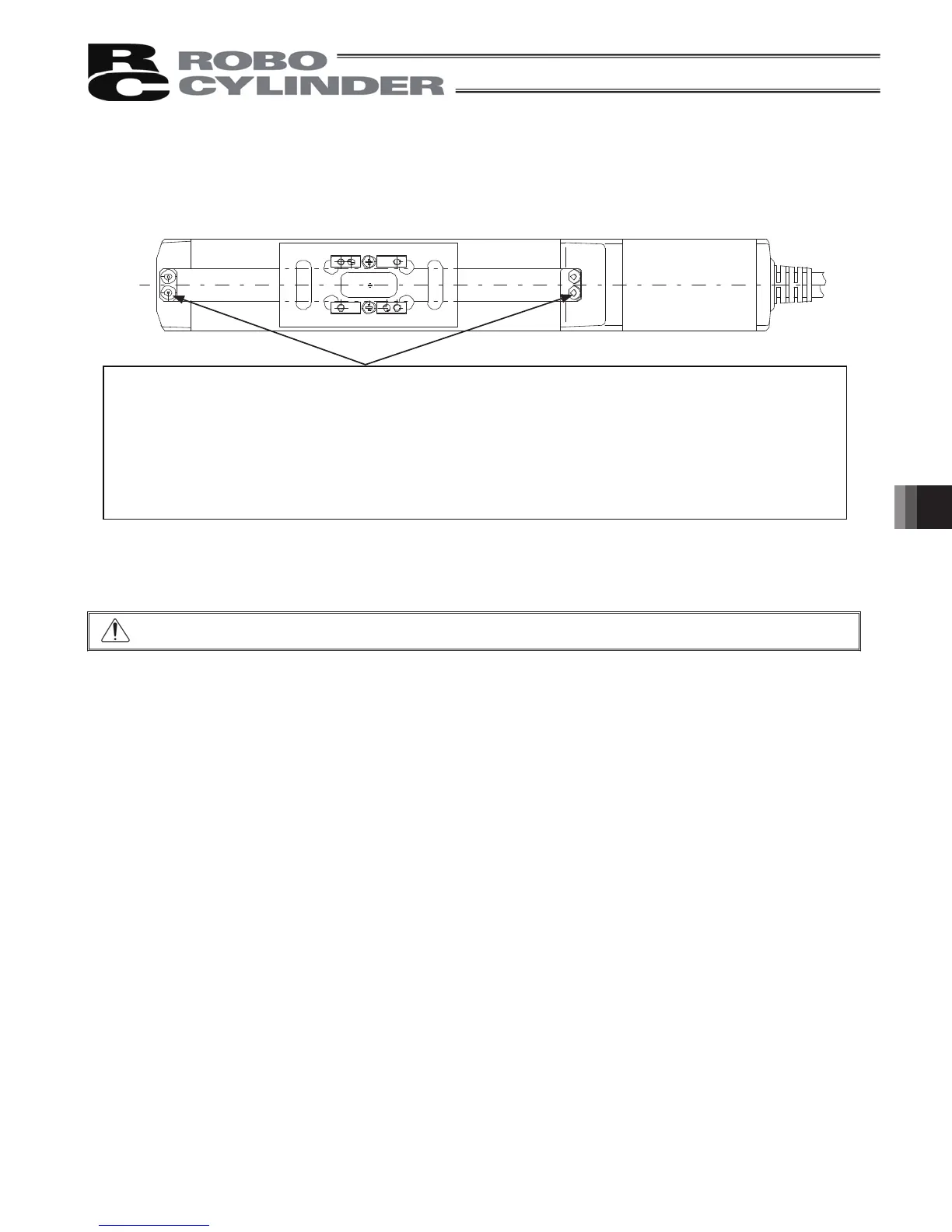

[4] When proper clearances are obtained between the slider body and stainless sheet and an absence of contact
between the two is confirmed, tighten the two screws on the loose end alternately, and then finally tighten all
screws to a uniform torque to securely affix the stainless sheet. If the screws are not tightened uniformly, the
sheet may meander or lift.
[5] Remove the clearance-checking tool and install the slider covers.
Caution: Again, make sure not to lose the coil springs and spacers.
Apply additional torque to the screws on both ends until the stainless sheet no longer moves.
Tightening torque: SA5C/SA6C/SA7C/SS7C: 87.2 N·cm (8.90 kgf·cm) (Standard)
45.5 N·cm (4.64 kgf·cm) (Cleanroom specification, Slider roller
specification (optional)) [Reference value]
SS8C/HS8C: 204 N·cm (20.8 kgf·cm) (Standard)
106 N·cm (10.8 kgf·cm) (Cleanroom specification, Slider roller
specification (optional)) [Reference value]
To Next Page
