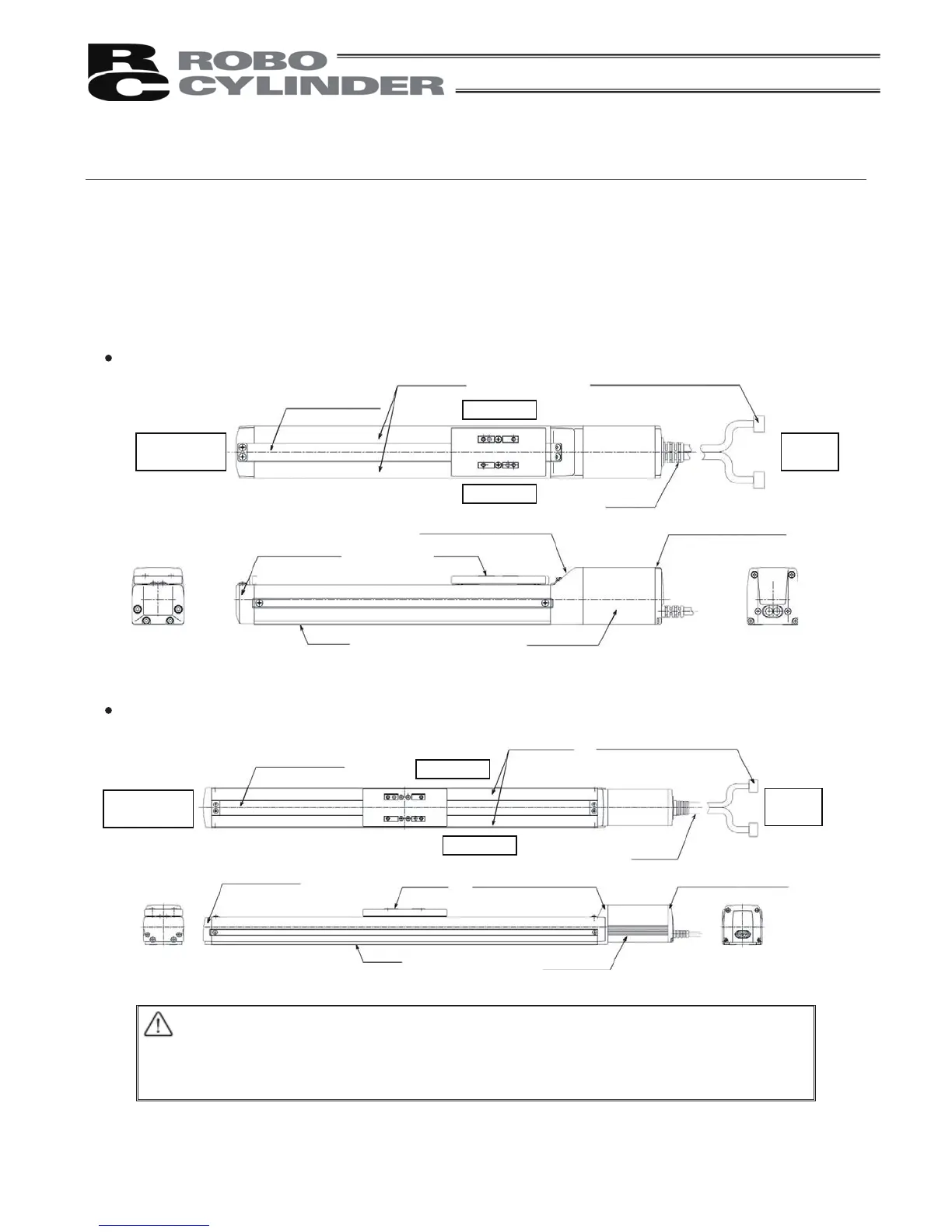

Names of Parts
The names of the actuator parts are indicated below.
The left and right sides are indicated by looking at the actuator from the motor end with the actuator set down
horizontally. Front end means the side opposite the motor end.
1. Motor Coupling Type (Standard) RCP2
SA5C, SA6C, SA7C
SS7C, SS8C, HS8C
Caution: The cable directly connected to the actuator is not a robot cable even when
ordered with a robot cable option. When designing, please make sure not to give
repeated bending loads to this cable.
The robot cable is applicable only to the connecting cables.
Stainless Sheet
Opposite
Motor End
Side Cover
Right Side
Left Side
Cable Joint Connector
A
ctuator Cable
Motor
End
Front Cove
r
Base
Bearing Housing
Slider
Motor End Cap
Motor Cove
r
Opposite
Motor End
Motor
End
Stainless Sheet
Side Cover
Cable Joint Connector
Right Side
Left Side
Front Cove
r
Slider
Bearing Housing
Motor End Cap
Motor Cove
r
Base
A
ctuator Cable
