9. Maintenance and Inspection
SA7R
SS7R, SS8R, HS8R

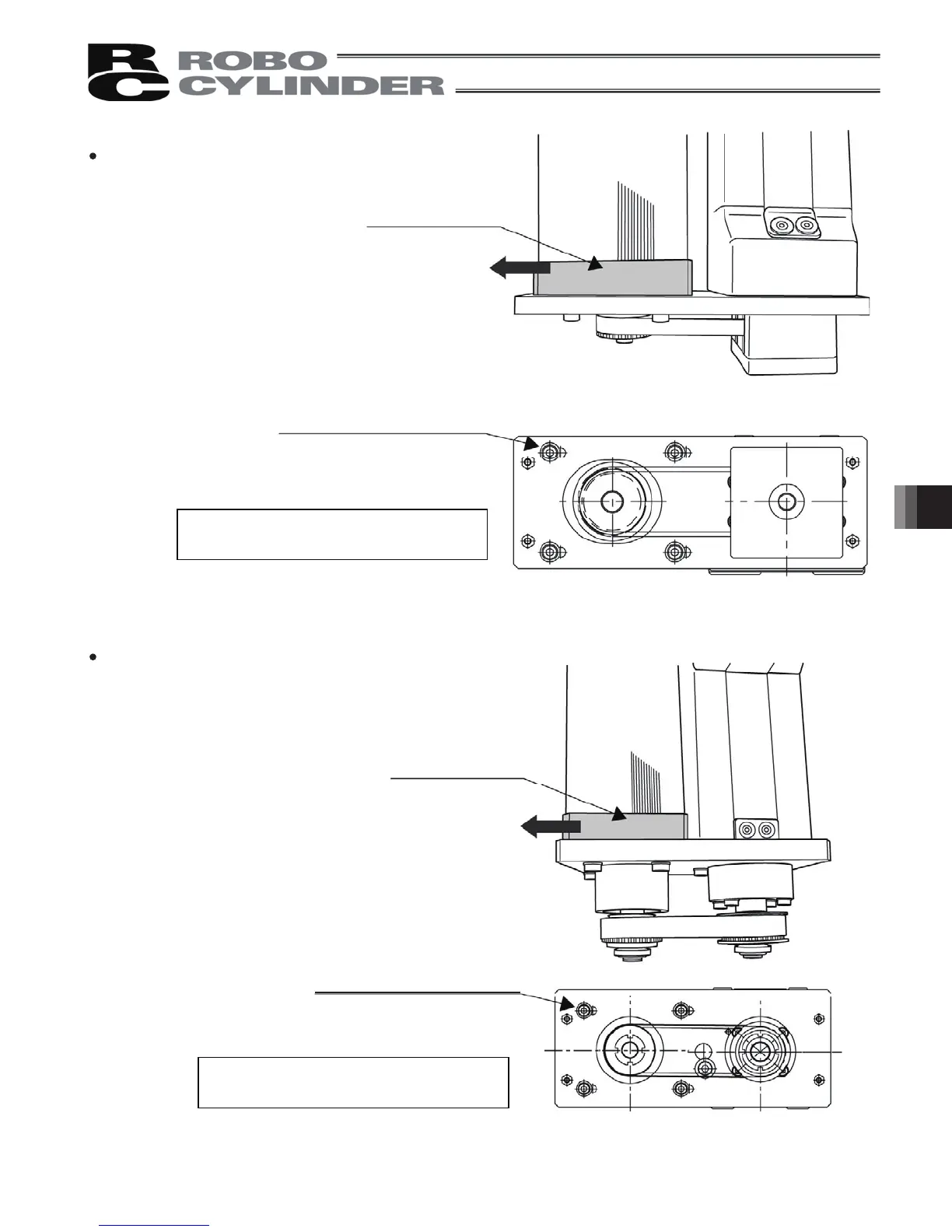

Tension adjusting bolts (4 pcs.)
Use an Allen wrench of 3mm
across flats.
Motor bracket
Tensile load:
Tension adjusting bolts (4 pcs.)
Use an Allen wrench of 3mm
across flats.
Motor bracket
Tensile load:
Tension adjusting bolt tightening torque:
323N･cm (33Kgf･cm)
Tension adjusting bolt tightening torque:
323N･cm (33Kgf･cm)
SS7R: 7.3Kgf
SS8R: 11.6Kgf
8Kgf
