83
9. Maintenance and Inspection
SS7C

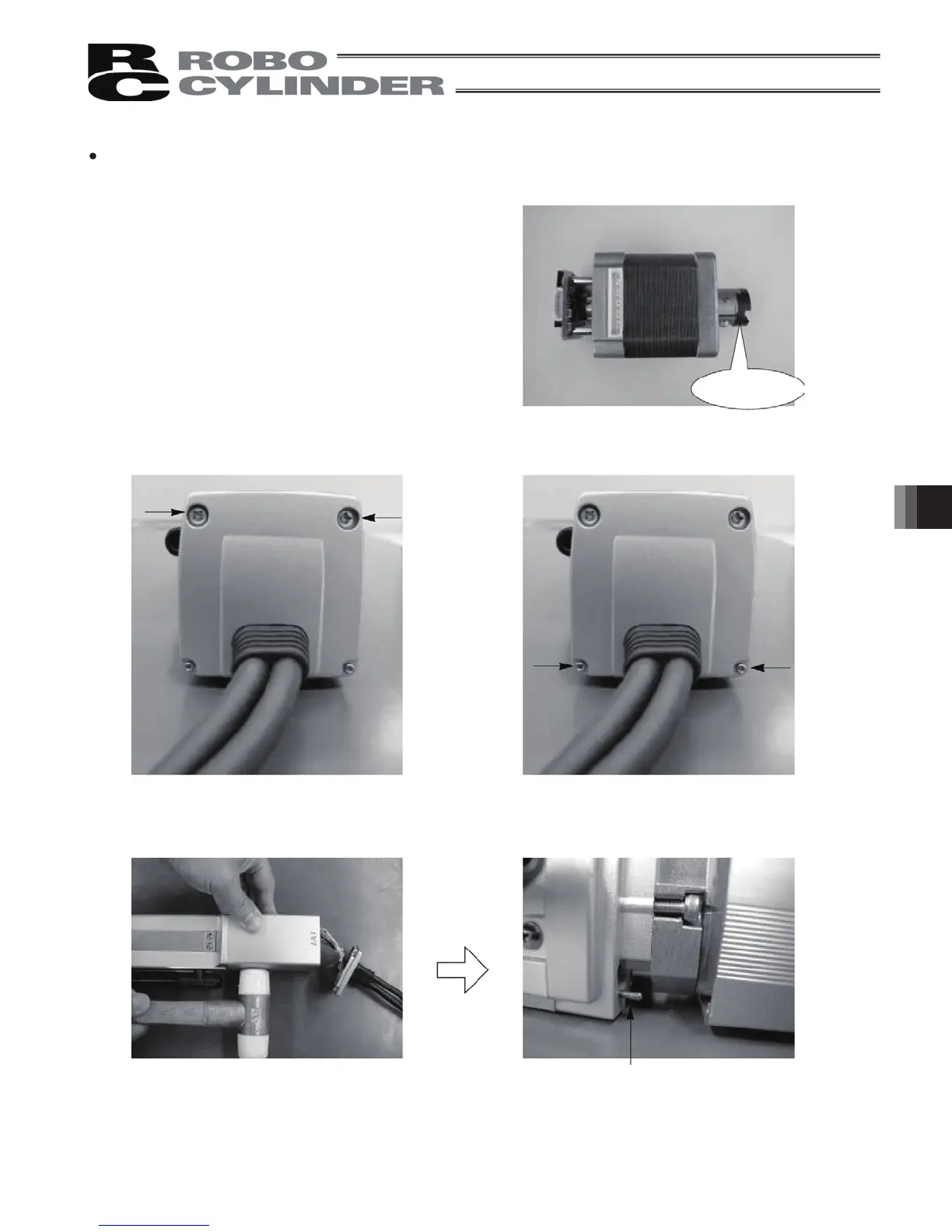

[Items Required for Replacement]
• Replacement motor M-P2SS7C-IAP42N-MB-CO
(with a coupling on the motor shaft; see the photograph
right.)
• Allen wrench set • Phillips screwdriver
• Plastic hammer
[Procedure]
1) Remove the pan-head screws affixing the motor-end cap.
2) Remove the motor cover.
The motor cover is engaged with a positioning pin. If the cover does not come off easily, use a plastic hammer
to gently tap the motor cover from the side, and pull out the cover.
• Pan-head screws (M2 × 10, 2 pcs.)
• Pan-head screws (M3 × 95, 2 pcs.)
Coupling
Positioning pin
To Next Page
