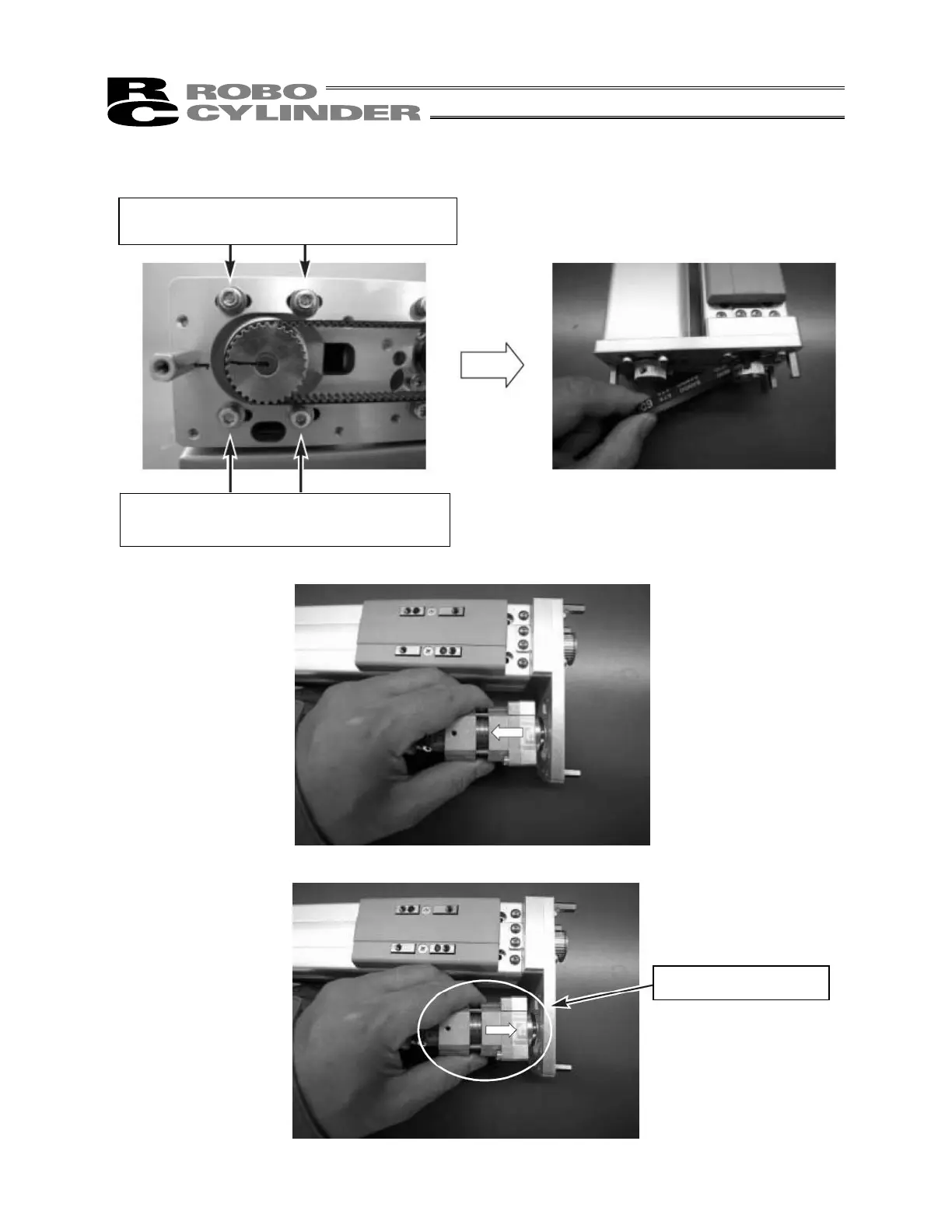

7) Loosen the motor-unit affixing bolts using an Allen wrench of 2.5 mm across flats. Slide the motor, and

loosen and remove the belt. After the belt has been removed, remove the motor-unit affixing bolts.

8) Take out the motor.

9) Install the replacement motor. Loosely tighten the motor-unit affixing bolts.

Motor-unit affixing bolts

(Use an Allen wrench of 2.5 mm across flats.)

Motor-unit affixing bolts

(Use an Allen wrench of 2.5 mm across flats.)

Replacement motor
