by a node that you must consider before you install your SAN Volume Controller
2145-8F2 or SAN Volume Controller 2145-8F4:
Dimensions and weight
Height Width Depth Maximum weight
43 mm
(1.69 in.)
440 mm
(17.32 in.)
686 mm
(27 in.)
12.7 kg
(28 lb)
Additional space requirements
Location
Additional space
requirements Reason
Left and right sides 50 mm
(2 in.)
Cooling air flow
Back Minimum:
100 mm (4 in.)
Cable exit
Heat output of each SAN Volume Controller 2145-8F4 or SAN
Volume Controller 2145-8F2 node
Model Heat output per node
SAN Volume Controller 2145-8F4 450 W (1540 Btu per hour)
SAN Volume Controller 2145-8F2 450 W (1540 Btu per hour)
SAN Volume Controller 2145-8F4 and SAN Volume Controller 2145-8F2
controls and indicators

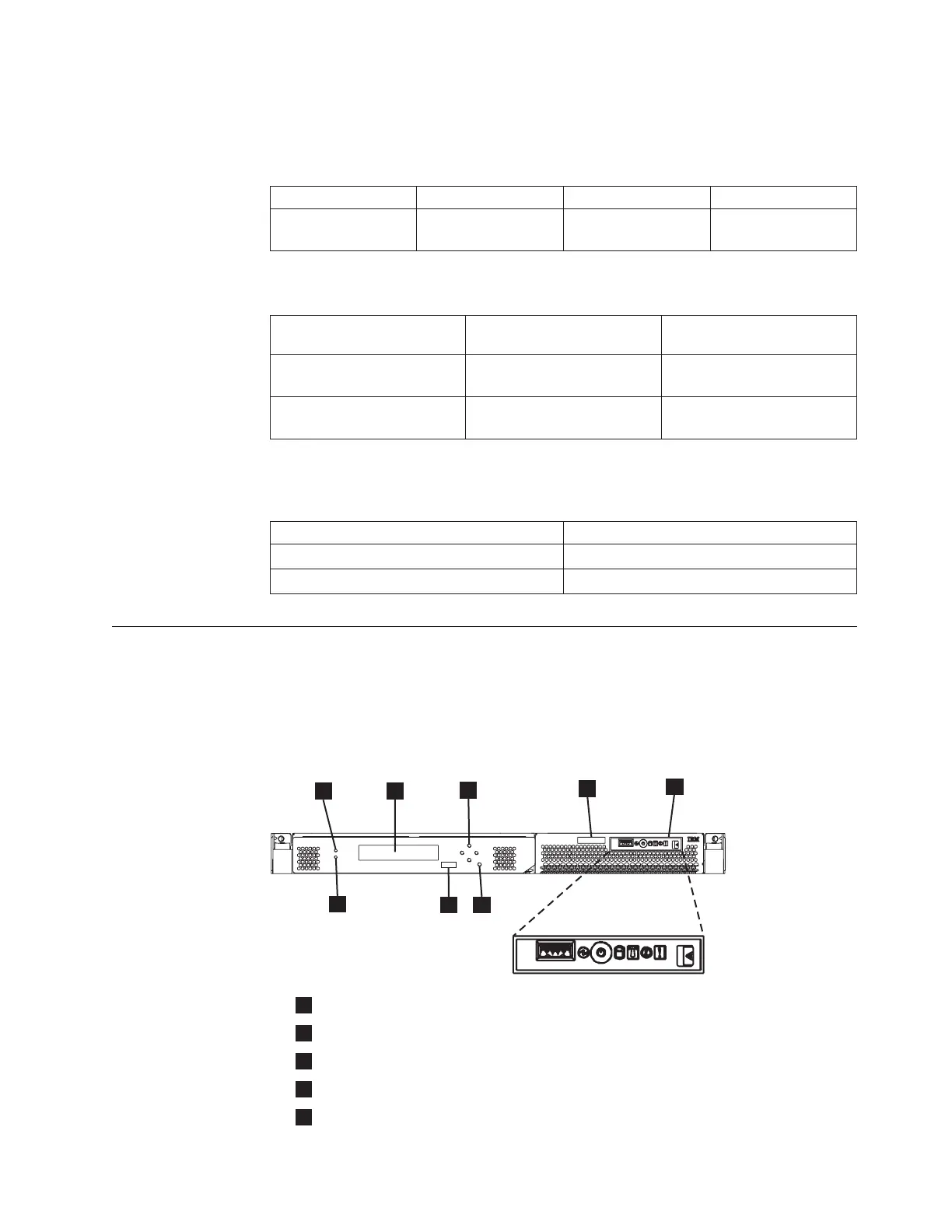

The following figure shows the controls and indicators on the front panel of the
SAN Volume Controller 2145-8F4 and SAN Volume Controller 2145-8F2.
1
Cache LED
2
Front panel display
3
Navigation buttons
4
Serial number label
5
Operator information panel (see the operator information panel topic)
svc00075
5
6
8
1
2
3
4
7
Appendix A. SAN Volume Controller 2145-8F4 and SAN Volume Controller 2145-8F2 67
