the flange. Insert the left slide rail in the same way.
5. Attach one latch strike
1
to the front of the right rail
2
, as shown in
Figure 29, using the captive screw
3
. The screw should be only finger tight.
Attach the other latch strike to the front of the left rail in the same way.
6. Attach the slide rail to the left rear mounting flange
1
with a single screw
2
, as shown in Figure 30 on page 52. The screw should be only finger tight.
Likewise, attach the other slide rail to the right rear mounting flange.
2
svc00239

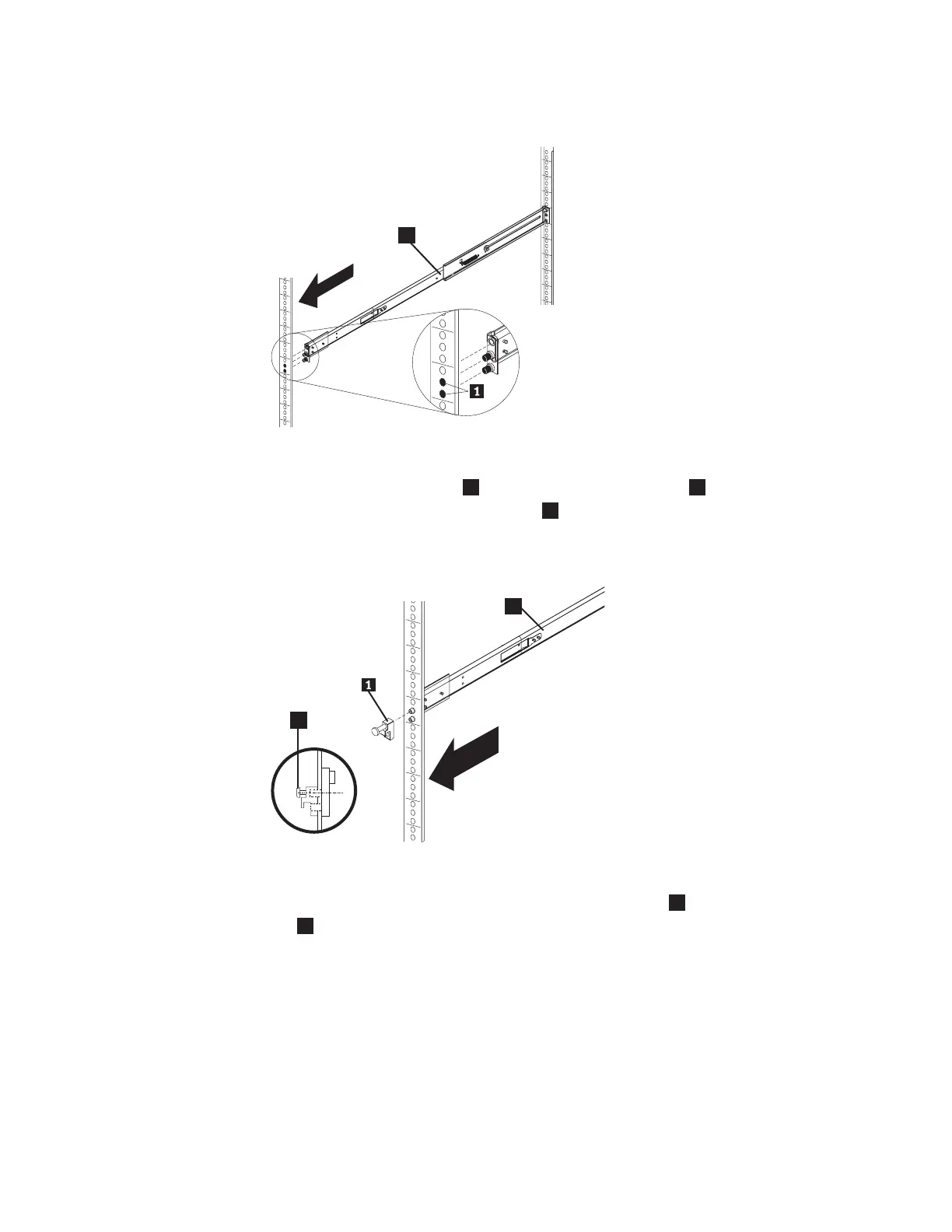

Figure 28. Extending the right slide rail
2
3
svc00238
Figure 29. Attaching the latch strike to the front of the rail
Chapter 6. Installing the SAN Volume Controller 2145-8G4 hardware 51
