Installing the SAN Volume Controller 2145-8F4 or the SAN
Volume Controller 2145-8F2
There are several steps that you must perform to install the SAN Volume
Controller 2145-8G4 node.
Installing the SAN Volume Controller 2145-8F4 or the SAN Volume Controller
2145-8F2 consists of the following tasks:
1. Installing the support rails in the rack cabinet.
2. Installing the SAN Volume Controller 2145-8F4 or the SAN Volume Controller
2145-8F2.
3. Connecting the SAN Volume Controller 2145-8F4 or the SAN Volume Controller
2145-8F2 to the UPS.
4. Installing the cable retention bracket on the SAN Volume Controller 2145-8F4.
Installing the support rails for the SAN Volume Controller
2145-8F4 or the SAN Volume Controller 2145-8F2
You must install the support rails that hold the SAN Volume Controller 2145-8F4
or the SAN Volume Controller 2145-8F2.
When you are ready to install the support rails, perform the following tasks:
v Refer to the Hardware Location Chart to determine where the SAN Volume
Controller is to be installed in the rack.
v Refer to the Electronic Industries Alliance (EIA) markings on the rack and decide
where you are going to install the support rails.
Perform
the following steps to install the support rails:
svc00200

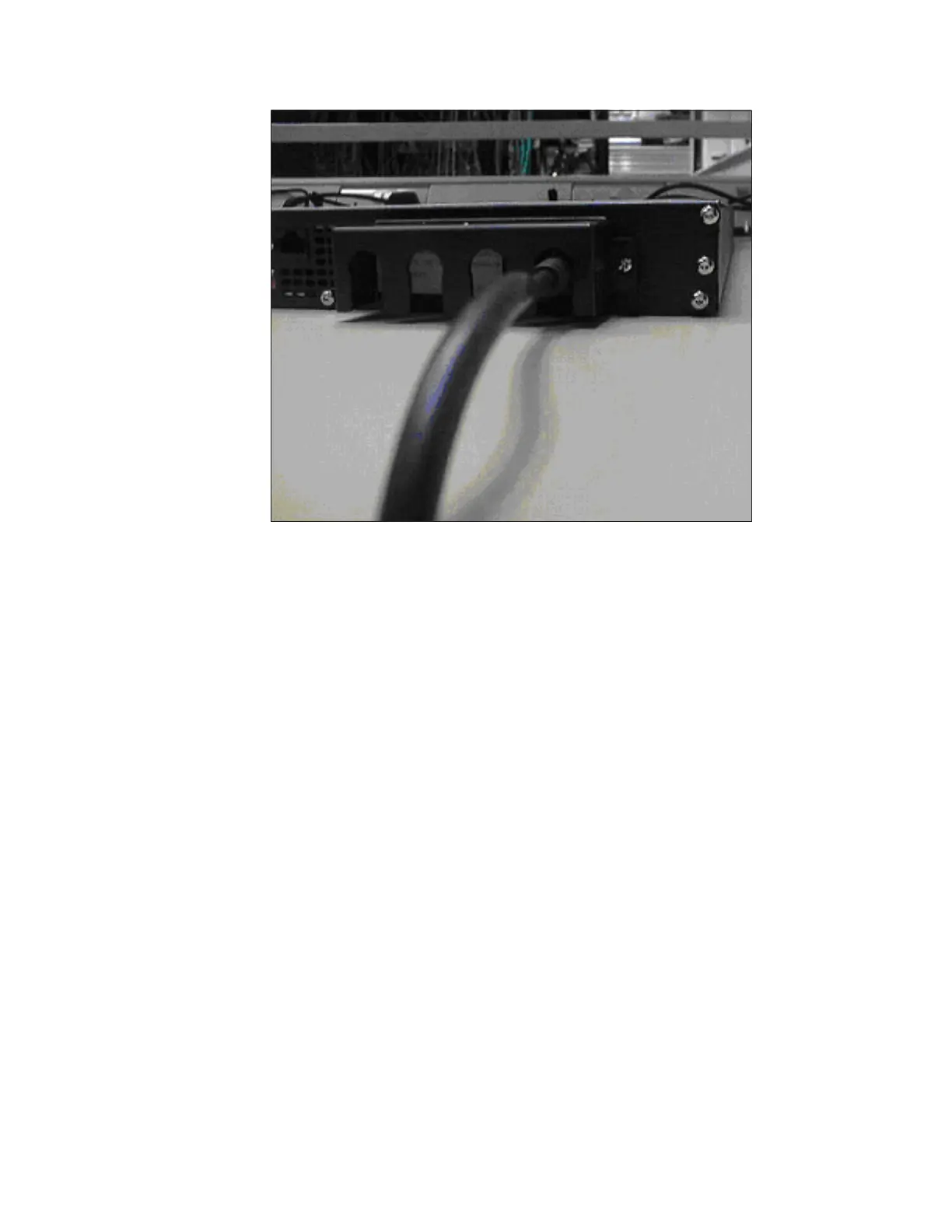

Figure 59. 2145 UPS-1U power cable retention bracket
Appendix A. SAN Volume Controller 2145-8F4 and SAN Volume Controller 2145-8F2 87
|
