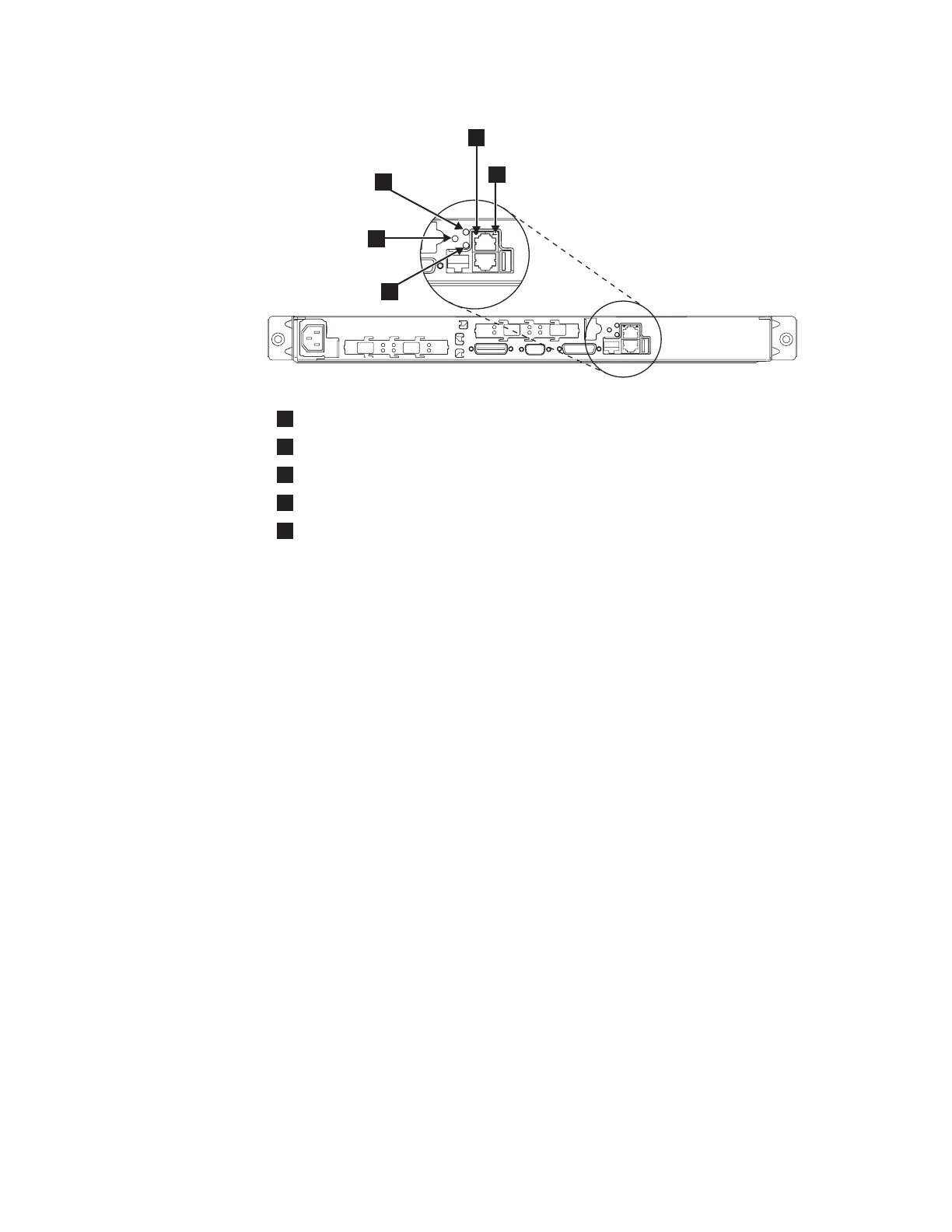

1
System board power LED
2
System board fault LED
3
Monitor LED (not used)
4
Lower Ethernet link LED
5
Upper Ethernet link LED
System board power LED
The system board power LED indicates the power supply status that is detected by
the system board.
System board fault LED
The amber system board fault LED indicates that the system board has detected a
critical failure.
You can view the system board fault LED in the documentation on the rear panel
indicators.
Monitor LED
The green monitor LED is not used on the SAN Volume Controller.
You can view the monitor LED in the documentation concerning the rear panel
indicators.
Lower Ethernet link LED
The lower Ethernet link LED indicates the operational status of Ethernet port 1.
This LED is illuminated when a good Ethernet connection exists between the SAN
Volume Controller 2145-4F2 and the Ethernet network.
Upper Ethernet link LED
The upper Ethernet link LED indicates the operational status of Ethernet port 2.
This LED is illuminated when a good Ethernet connection exists between the SAN
Volume Controller 2145-4F2 and the Ethernet network.
Ethernet port 2 is not used on the SAN Volume Controller.
5
1
2
3
4
1nla9h
106 IBM System Storage SAN Volume Controller: Hardware Installation Guide
|
