1
Fibre-channel ports
2
Power connector
3
Serial connector
4
Ethernet ports
5
Main power connector
6
Communication port
7
Load segment 2 receptacle
2.
Place the other end of the power cable into the rightmost load segment 2
receptacle
7
on the 2145 UPS-1U.
DANGER
You
have already switched on the 2145 UPS-1U. The output sockets of the
2145 UPS-1U are live.
3. Plug the signal cable into the serial connector
3
that is located on the SAN
Volume Controller 2145-4F2.
4. Place the other end of the signal cable into the communication port
6
on the
2145 UPS-1U.
The SAN Volume Controller 2145-4F2 power is now connected to the 2145 UPS-1U.
Connecting the SAN Volume Controller 2145-4F2 to the 2145
UPS
Connecting the SAN Volume Controller 2145-4F2 node to the 2145 uninterruptible
power supply (2145 UPS) requires that you first review the restrictions that exist
between the two systems.
Each SAN Volume Controller 2145-4F2 of a pair must be connected to a different
2145 UPS. Each 2145 UPS can support up to two SAN Volume Controller
2145-4F2s.
svc00366
5
6
ATTENTION
CONNECT ONLY IBM SAN VOLUME
CONTROLLERS TO THESE OUTLETS.
SEE SAN VOLUME CONTROLLER
INSTALLATION GUIDE.
7
1
3
42

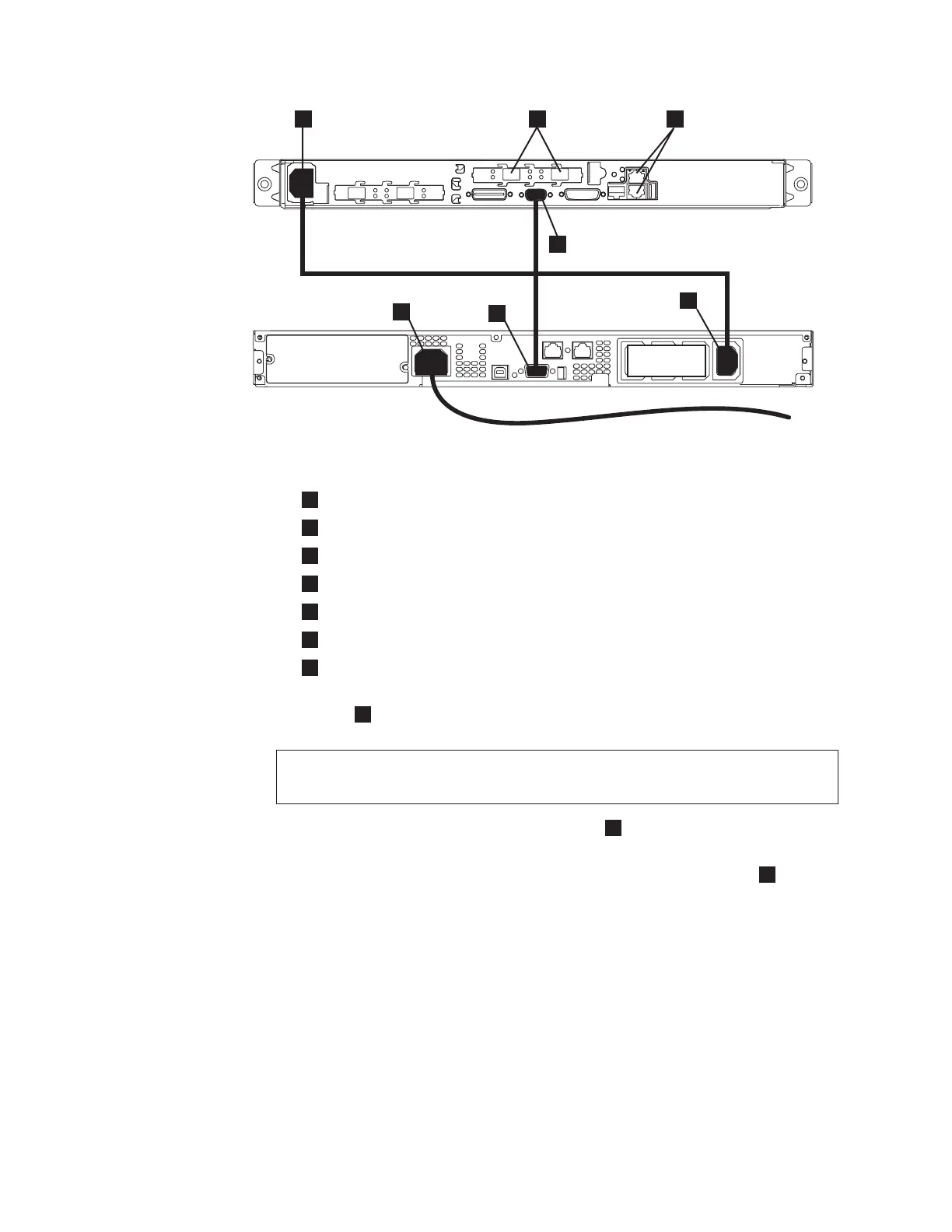

Figure 97. Connecting the SAN Volume Controller 2145-4F2 power cable to the 2145
UPS-1U
134 IBM System Storage SAN Volume Controller: Hardware Installation Guide
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
