Multipathing software
See the following Web site for the latest support and coexistence information:
http://www.ibm.com/servers/storage/software/virtualization/svc
User interfaces
The SAN Volume Controller provides the following user interfaces through the
master console:
v The SAN Volume Controller Console, a Web-accessible graphical user interface
(GUI) that supports flexible and rapid access to storage management information
v A command-line interface (CLI) that uses Secure Shell (SSH)
Application programming interfaces
The SAN Volume Controller provides an application programming interface called
the Common Information Model (CIM) agent, which supports the Storage
Management Initiative Specification (SMI-S) of the Storage Network Industry
Association.
SAN Volume Controller 2145-8G4 controls and indicators

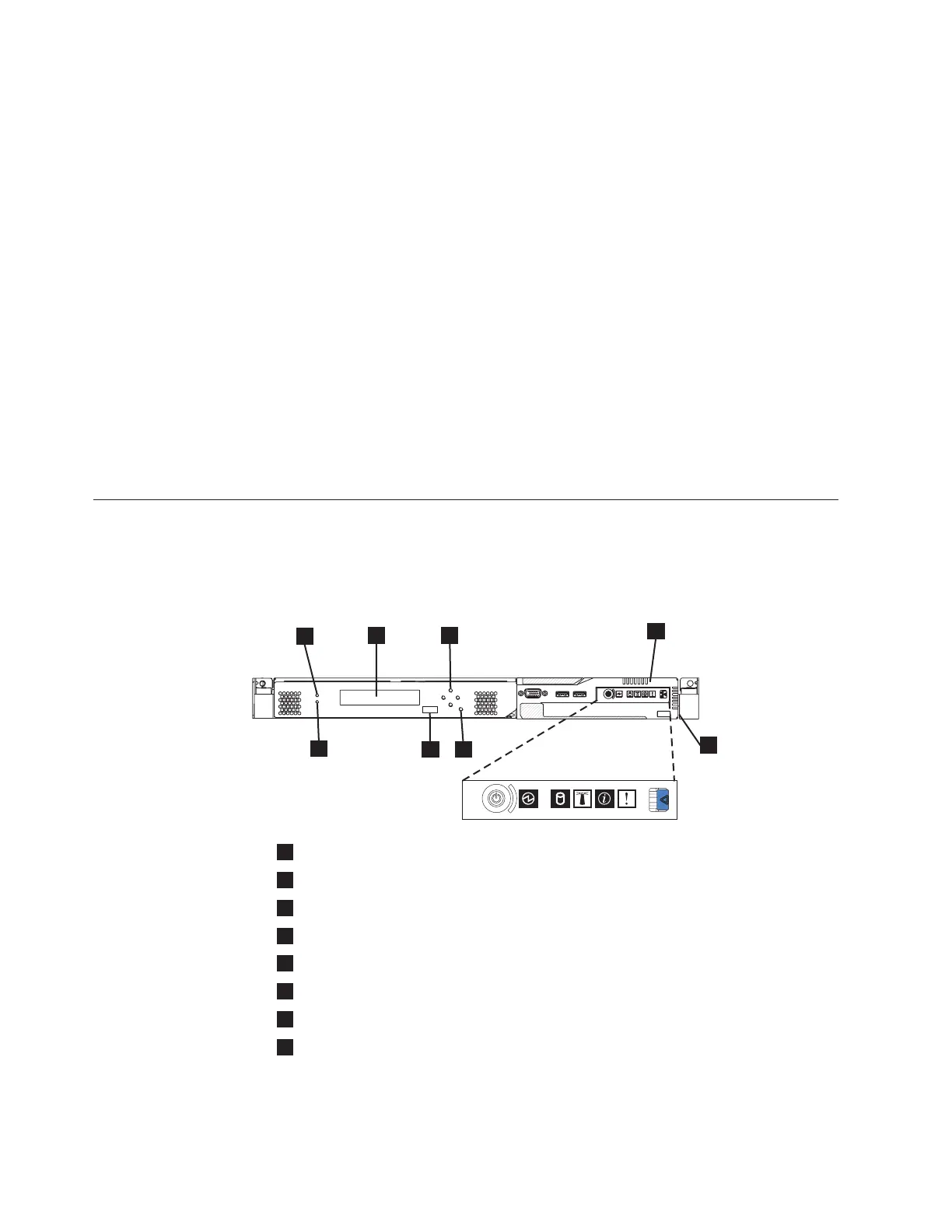

The following figure shows the controls and indicators on the front panel of the
SAN Volume Controller 2145-8G4.
1
Cache LED
2
Front panel display
3
Navigation buttons
4
Serial number label
5
Operator information panel (see the operator information panel topic)
6
Select button
7
Node identification label
8
Error LED
Cache LED
System activity is indicated through the green, cache LED.
svc00216
5
6
8
1
2
3
4
7
6 IBM System Storage SAN Volume Controller: Hardware Installation Guide
