Perform the following steps to install the 2145 UPS-1U in the rack:
Note:
You might have already completed steps 3 through 6 on page 84 if you used
the Read Me First pamphlet, which is included with the 2145 UPS-1U.
1. Stand at the front of the rack and place the back of the 2145 UPS-1U onto the
support rails, and then slide the 2145 UPS-1U into the rack.
Note: The 2145 UPS-1U weighs 16 kg. If you feel unsure about lifting the UPS
to its location in the rack, seek assistance or remove the battery to reduce
its weight.
2. At the front of the 2145 UPS-1U, install the two mounting screws
1
.
3. If you have not already connected the internal battery connector, remove the
2145 UPS-1U front panel.
1
svc00008
svc00063

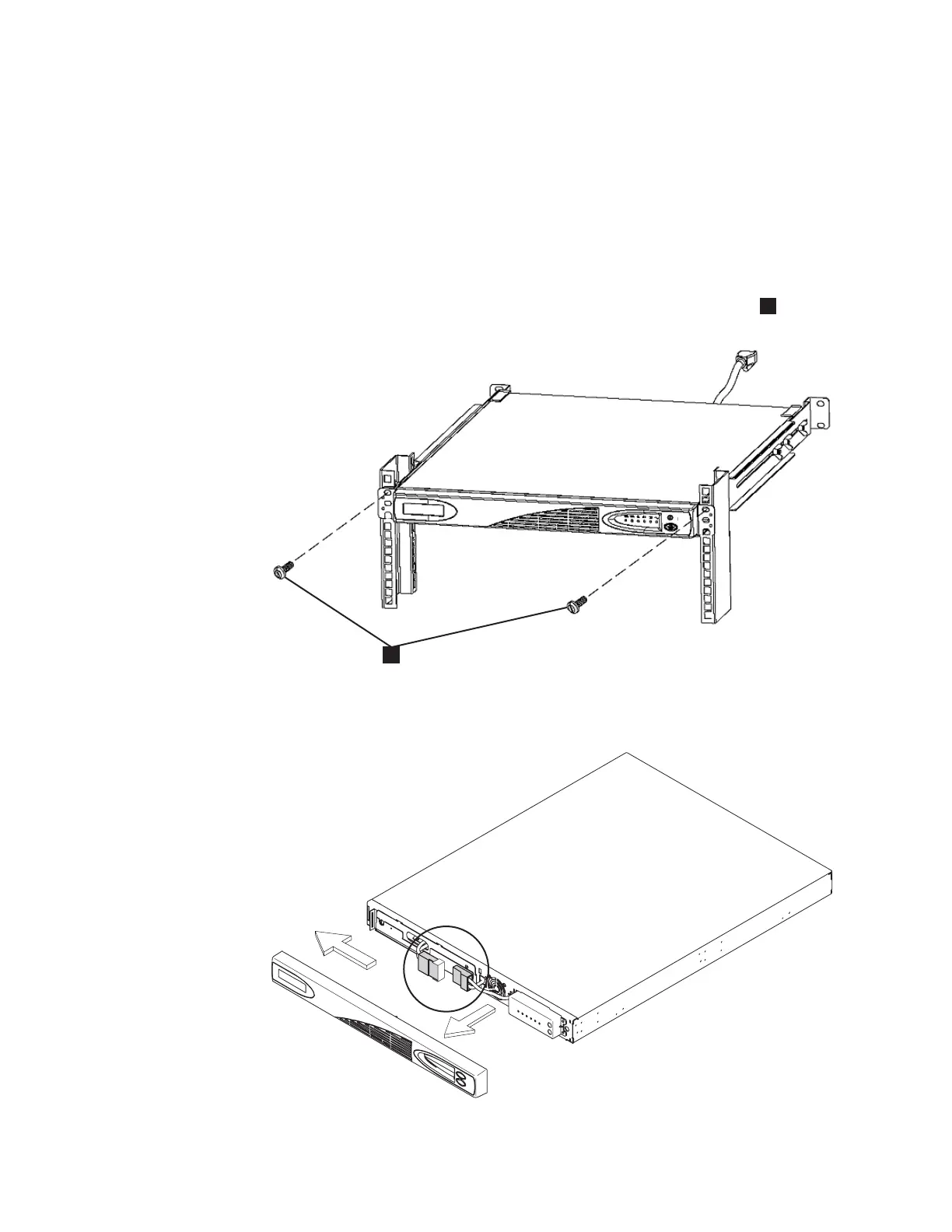

Figure 53. Removing the 2145 UPS-1U front panel
Appendix A. SAN Volume Controller 2145-8F4 and SAN Volume Controller 2145-8F2 83
|
|
|
|
|
