6. Select the holes in the rail where you want to position the 2145 UPS-1U.
Note: The bottom flange of the support rail must align with the EIA mark on
the rack.
7. Using two M6 × 10 screws (
1
in Figure 51 on page 81) and two clip nuts
2
, attach the rail to the rear of the rack. The customer’s rack might be
different than the one shown here, and if so, might require different clip nuts
or fasteners.
8. Attach only the bottom hole of the rail to the front of the rack with one M6 ×
10 screw and one clip nut (
1
in Figure 52 on page 82).
9. Install a clip nut in the top hole of the rail
3
.
10. Repeat step 7 on page 81 through step 9 on page 82 for the other rail.
11. Tighten the assembly wing nuts on both rail assemblies.
1
2
svc00034

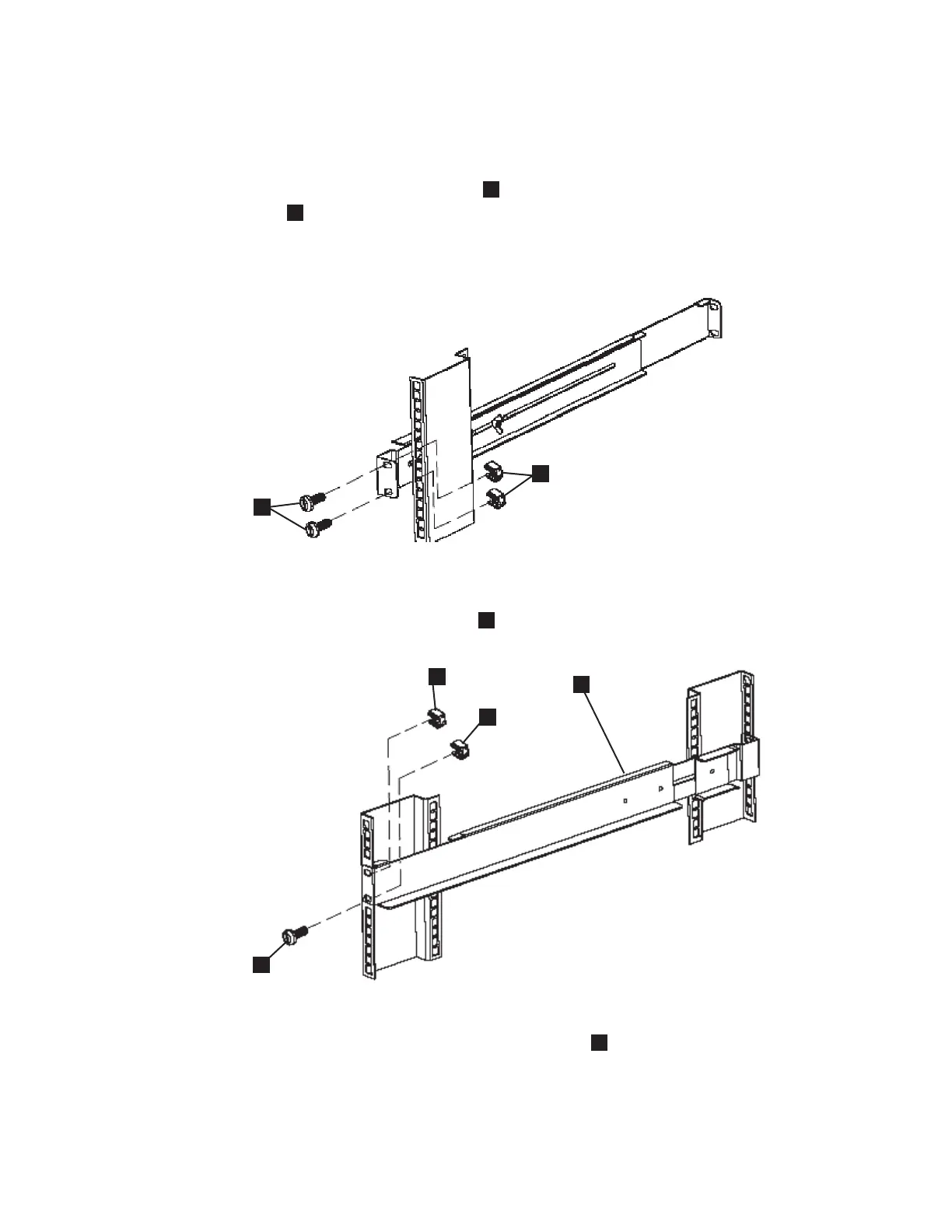

Figure 76. Securing the rear rail on the 2145 UPS-1U
svc00032
1
2
3
4
Figure 77. Securing the front rail on the 2145 UPS-1U
116 IBM System Storage SAN Volume Controller: Hardware Installation Guide
