3. If you have not already connected the internal battery connector, remove the

2145 UPS-1U front panel.

4. Remove the protective label from the internal battery connector.

svc00008

svc00063

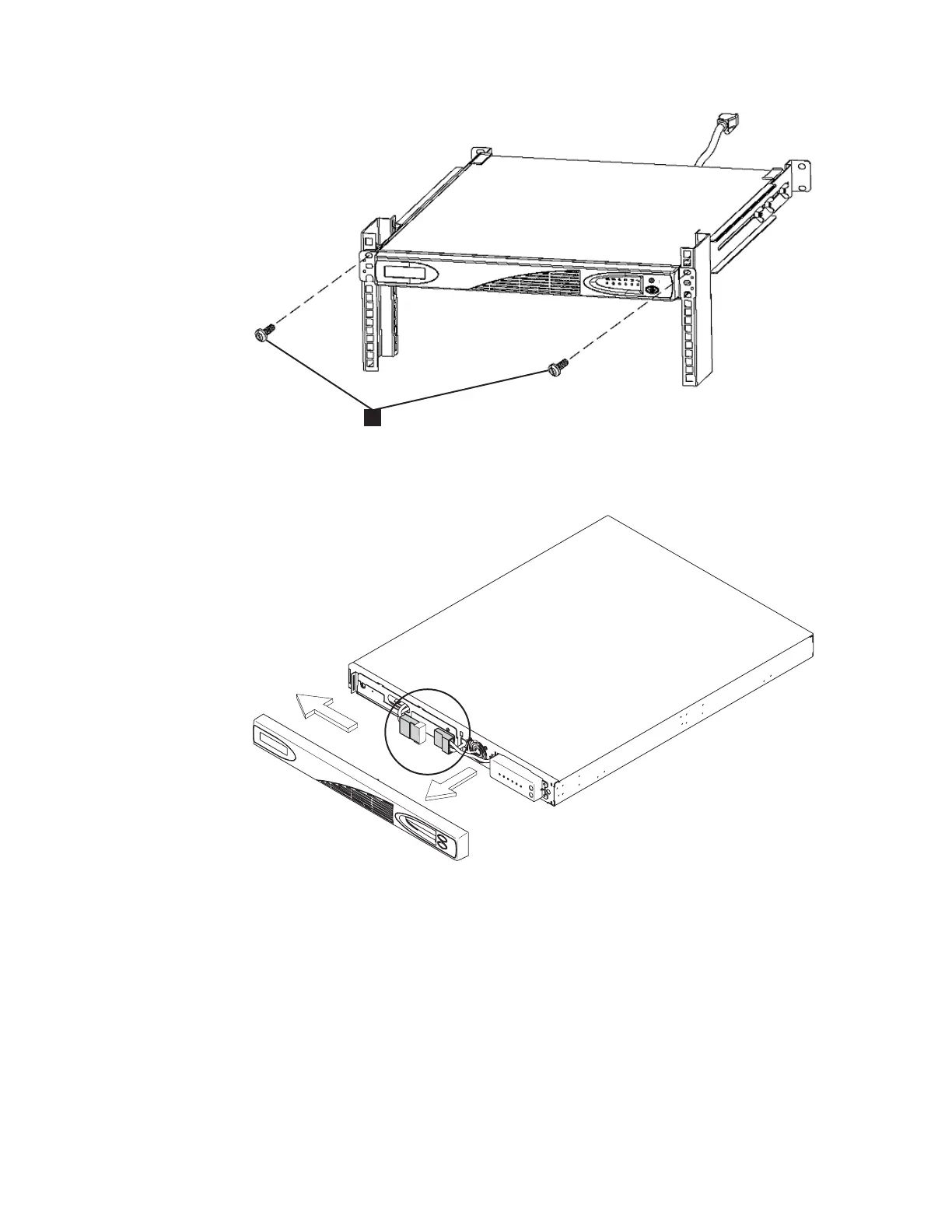

Figure 78. Removing the 2145 UPS-1U front panel

118 IBM System Storage SAN Volume Controller: Hardware Installation Guide
