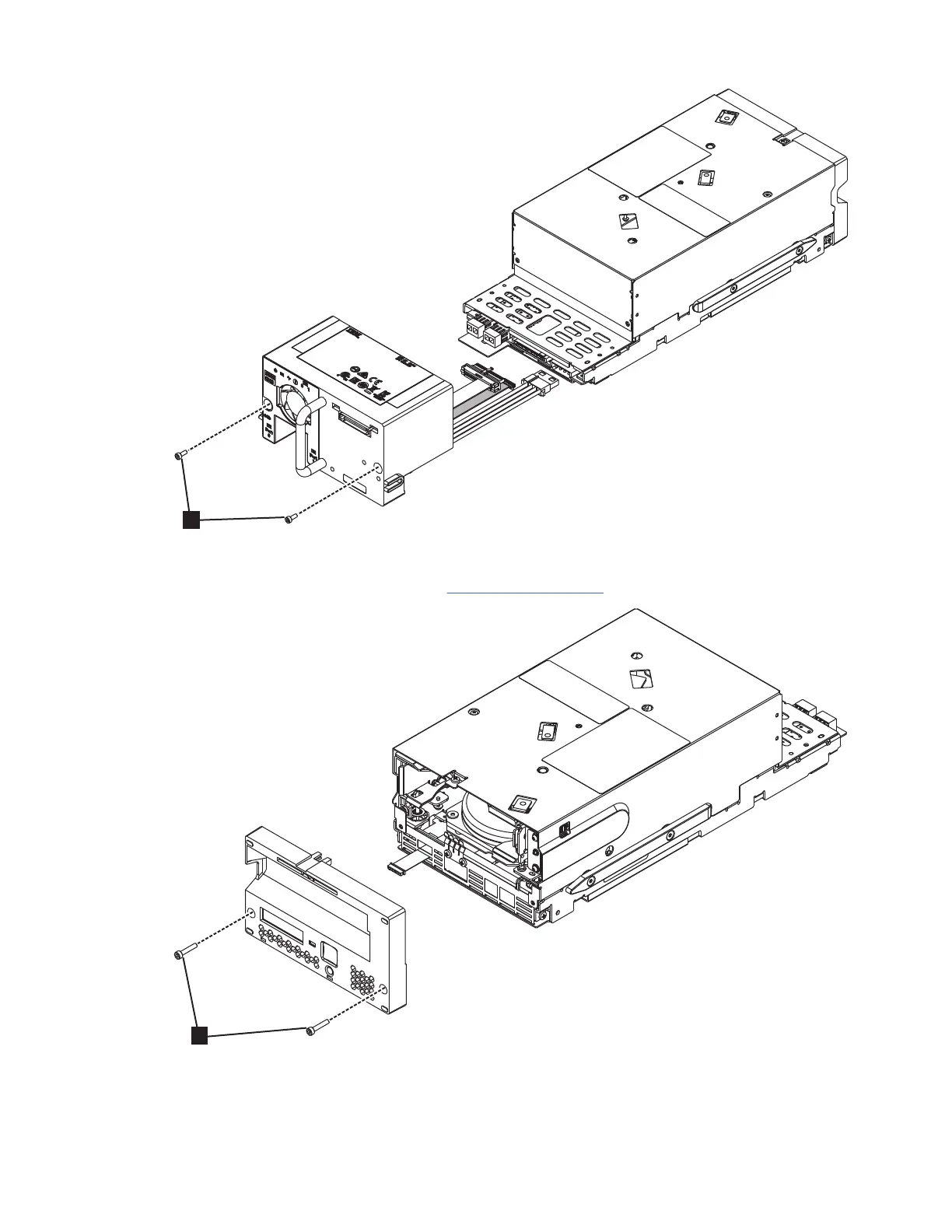

Figure 68: Drive canister - canister screws

2. Remove the drive from the enclosure. See Figure 68 on page 197.

a05m0236

Figure 69: Drive canister - bezel screws

3. Place the drive on a sturdy, work surface.

4. Ground yourself to the drive by using the ESD Kit.

Procedures

197
