Screws

a05m0380

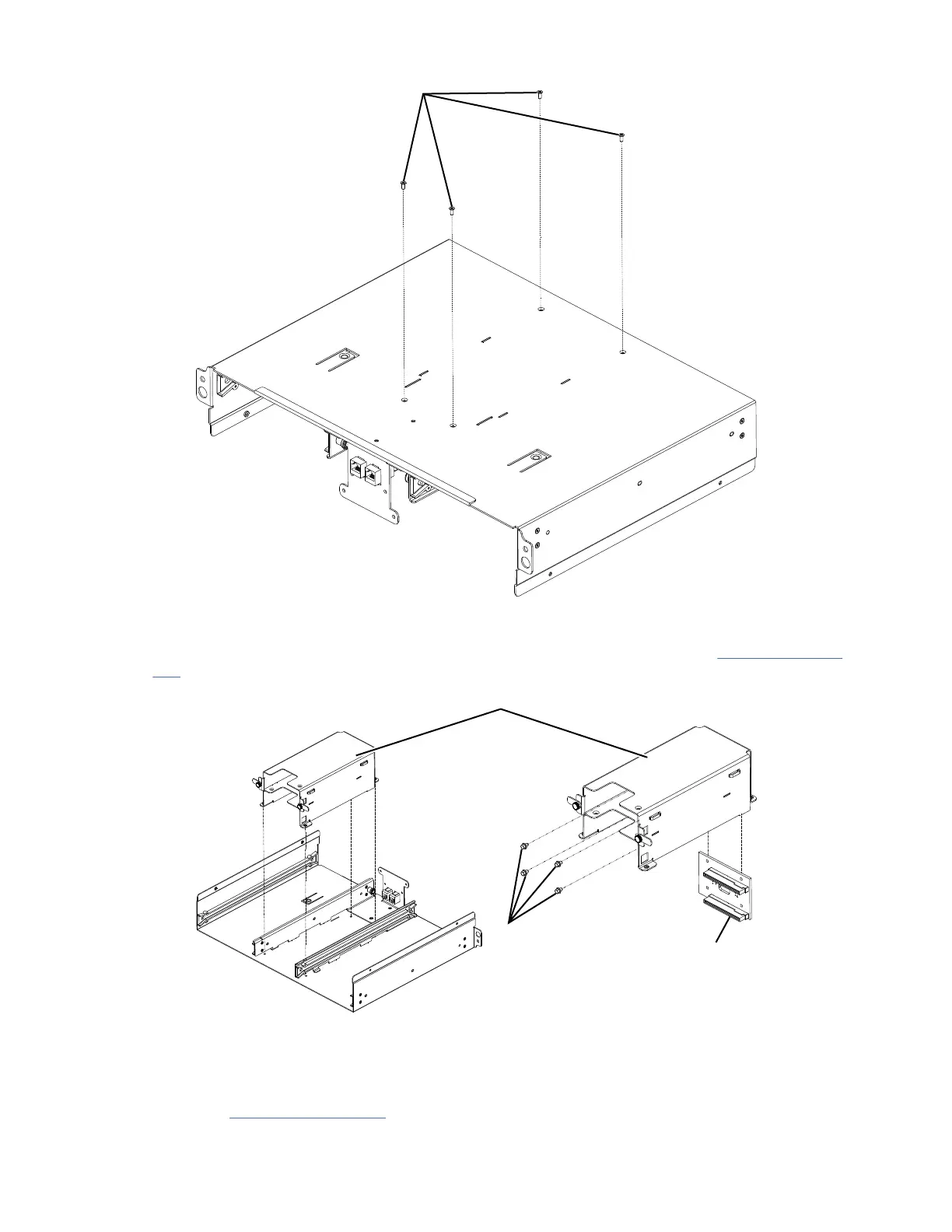

Figure 85: Unscrewing the power supply bracket

8. Turn the enclosure upright and remove the power supply bracket. See Figure 3 in Figure 86 on page

257.

Figure 3

Figure 4

Power supply bracket

Screws

RMC

Card

a05m0381

Figure 86: Removing the power supply bracket

9. Remove the four screws that fasten the card to the power supply bracket and remove the card. See

Figure 4 in Figure 86 on page 257.

Locations, checks, adjustments, removals, and replacements

257
