Chapter 9. Parts catalog information

This parts catalog provides information about the EH7/EH8/55F/60F FRU list. Also, see “Special tools and

customer supplies” on page 35.

3592 EH7/EH8/55E/55F/60F Rack FRU list

LEFT RAIL

FRONT RAIL SCREWS

ENCLOSURE ASM

JAG TAPE DRIVE

FILTER ASM SCREWS

FILTER ASM

FRONT RAIL SCREWS

ENCLOSURE ASM SCREWS

RIGHT RAIL

(2X) REAR RAIL

REAR RAIL SCREWS

POWER SUPPLIES

a05m0372

BEZEL

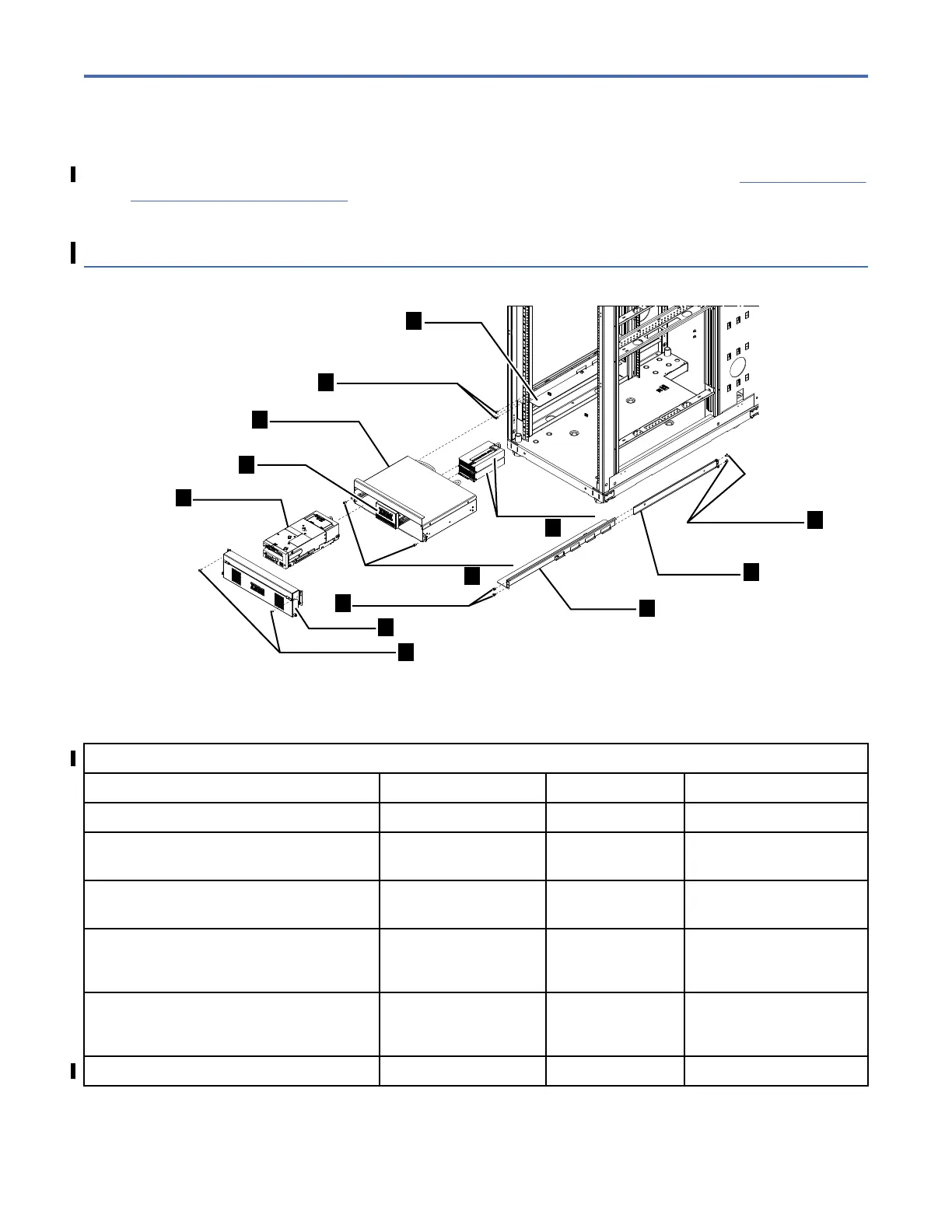

Figure 87: Exploded Rack Mount view

Table 158: 3592 EH7/EH8/55F/60F Rack FRU list

FRU name ASM Index Part Number Description

Rail assembly 1 2727429 Rack Mount Rail Kit

Enclosure assembly 3 NP Non-orderable P/N:

38L7515

Power supply 5 69Y5949 Power supply - Quantity

of 2 per enclosure

EHx tape drive 6

EH7 - 00VJ449

EH8 - 00VJ453

EH7 drive

EH8 drive

55x tape drive 6

55F - 01PL500 55F drive

60x tape drive 6 60F - 02FJ974 60F drive
