• Attention messages

• Status messages

• Mount messages

See “Intervention messages description” on page 86 for information about message types.

Drive rear layout

The rear of the drive has the functional areas that are shown in Figure 3 on page 30

and listed and

identied in Table 15 on page 30.

a14m0239

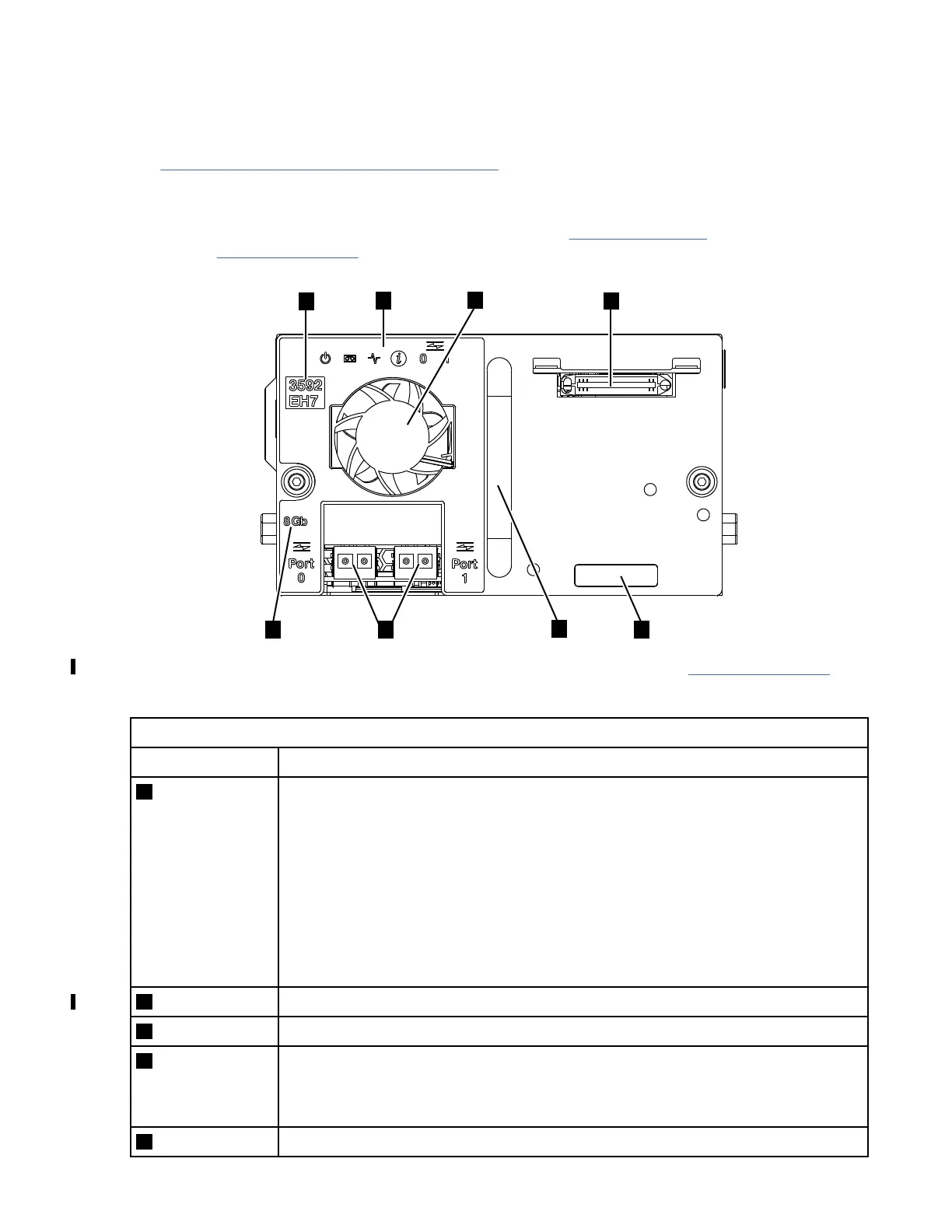

Figure 3: Drive rear layout - Models EH7/EH8/55F/60F (Fibre Channel) . Use with Table 15 on page 30.

Table 15: Drive rear layout

Item number Item name and details

1 LED array (described from left to right)

• Power

• Drive status

• Library communications

• Information (error messages)

• Port 0 Fibre

• Port 1 Fibre

Green LEDs flash at half-second intervals. Yellow LEDs flash at 1-second intervals.

2 Model number label (EH7/EH8/55F/60F)

3 Fan

4 Canister cable port

The cable from this port connects to the Ethernet port and power supply on the

front enclosure behind the enclosure bezel.

5 MTM/Serial number label

30 IBM 3592 TS1140, TS1150, TS1155, and TS1160 Tape Drives: Maintenance Information
