380 Power Stacker
7. Close the top cover, remove four cables from the stacker control panel,
and remove the stacker control panel. (See Figure 61.)
Logic Cable (P104)
Power Cable
Frame Cable (P102)
Rail Cable (P107)

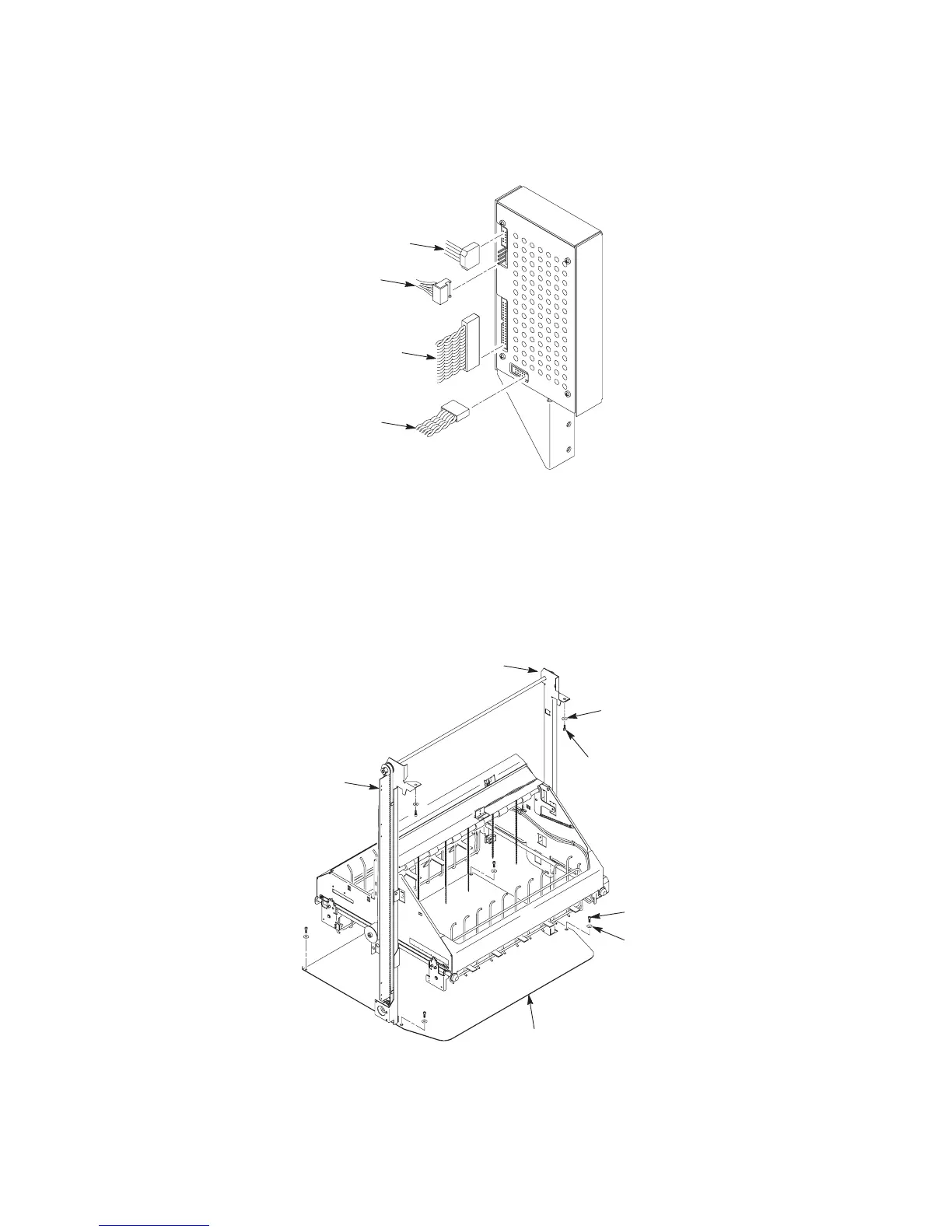

Figure 61. Removing Cables from the Stacker Control Panel
8. Remove the two 5/32 x 3/4 inch screws and washers securing the
vertical rails to the upper frame cross-member at the rear of the cabinet.
(See Figure 62.)
Stacker Base
Vertical Rail
Washer (2)
Screw (2)
Screw (4)
Washer (4)
Vertical Rail
Figure 62. Preparing the Stacker for Removal
