381Power Stacker
9. Raise the elevator assembly.
10. Loosen the screws securing the vertical rails to the stacker base one
turn—do not remove the screws. Each rail is secured by two screws.
(See Figure 63.)
Vertical Rail
Stacker Base
Washer (2)
Screw (2)
Screw (2)
Washer (2)
Elevator
Assembly
NOTE: Hardware exploded to show
location. Loosen, but do not remove,
these screws and washers.

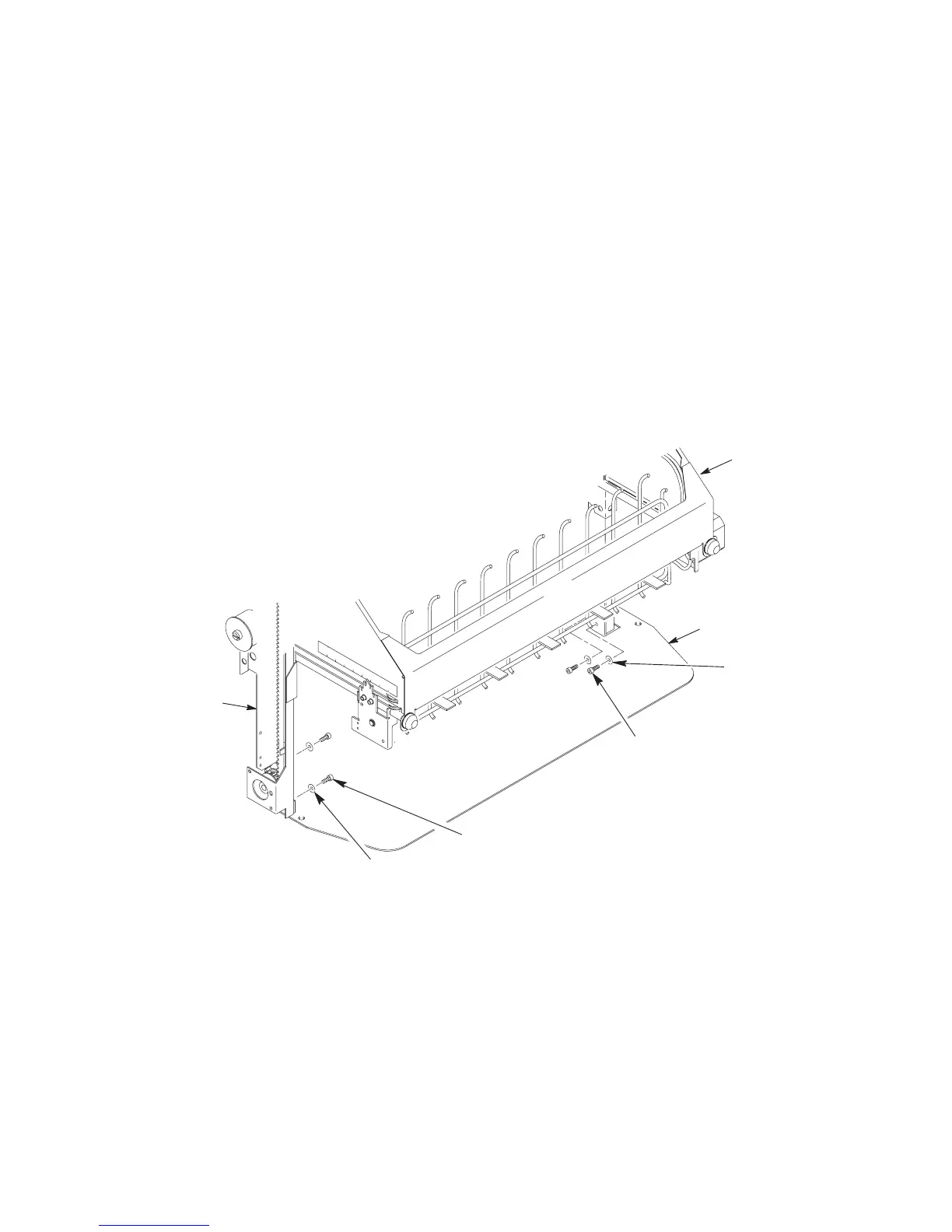

Figure 63. Loosening the Lower Screws in the Vertical Rails
