394 Power Stacker
CAUTION:
The constant force spring is a high tension spring. To avoid pinching
your fingers, coil the spring slowly and carefully. Do not let the spring
twist or crimp.
3. Remove the shoulder screw, washers, and spacer from the constant
force spring and drum. Let the spring coil itself up until it reaches the
screw that secures it to the vertical rail. (See Figure 75.)
4. Firmly gripping the spring and drum, remove the screw securing the
spring to the vertical rail. (See Figure 75.)
Rail Screw
Drum
Washer
Shoulder Screw
Washers
Spacer
Constant Force Spring

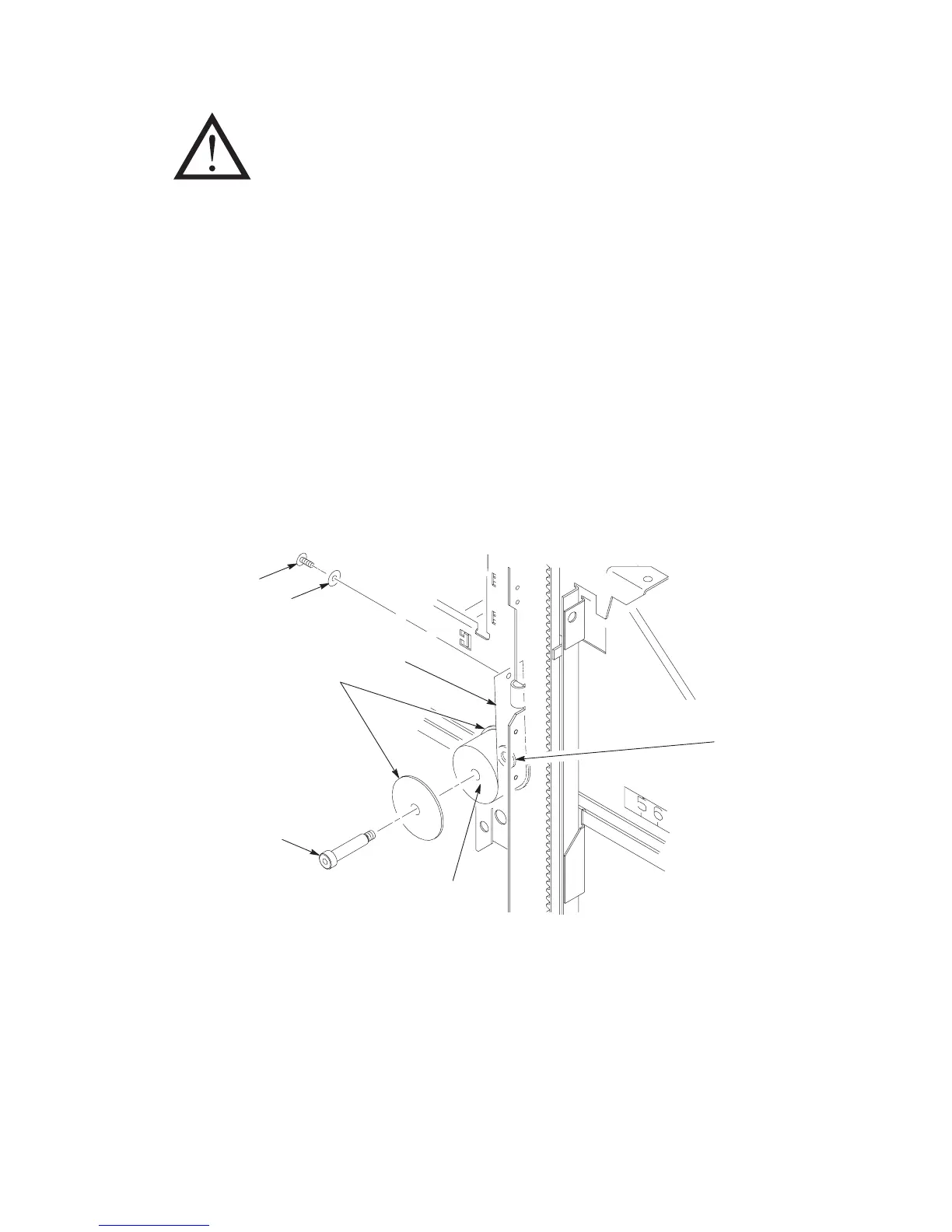

Figure 75. Removing the Constant Force Spring
To Next Page
