Attention: Do not drop or damage the metal connectors on the cable. If the metal
connectors are bent or damaged, they need to be replaced.
3. Refer to the following information to determine the point-to-point cabling for SMP cables.
• If you have a two node system conguration, use Figure 27 on page 29 and Table 2 on page 29
to determine the point-to-point cabling for SMP cables.

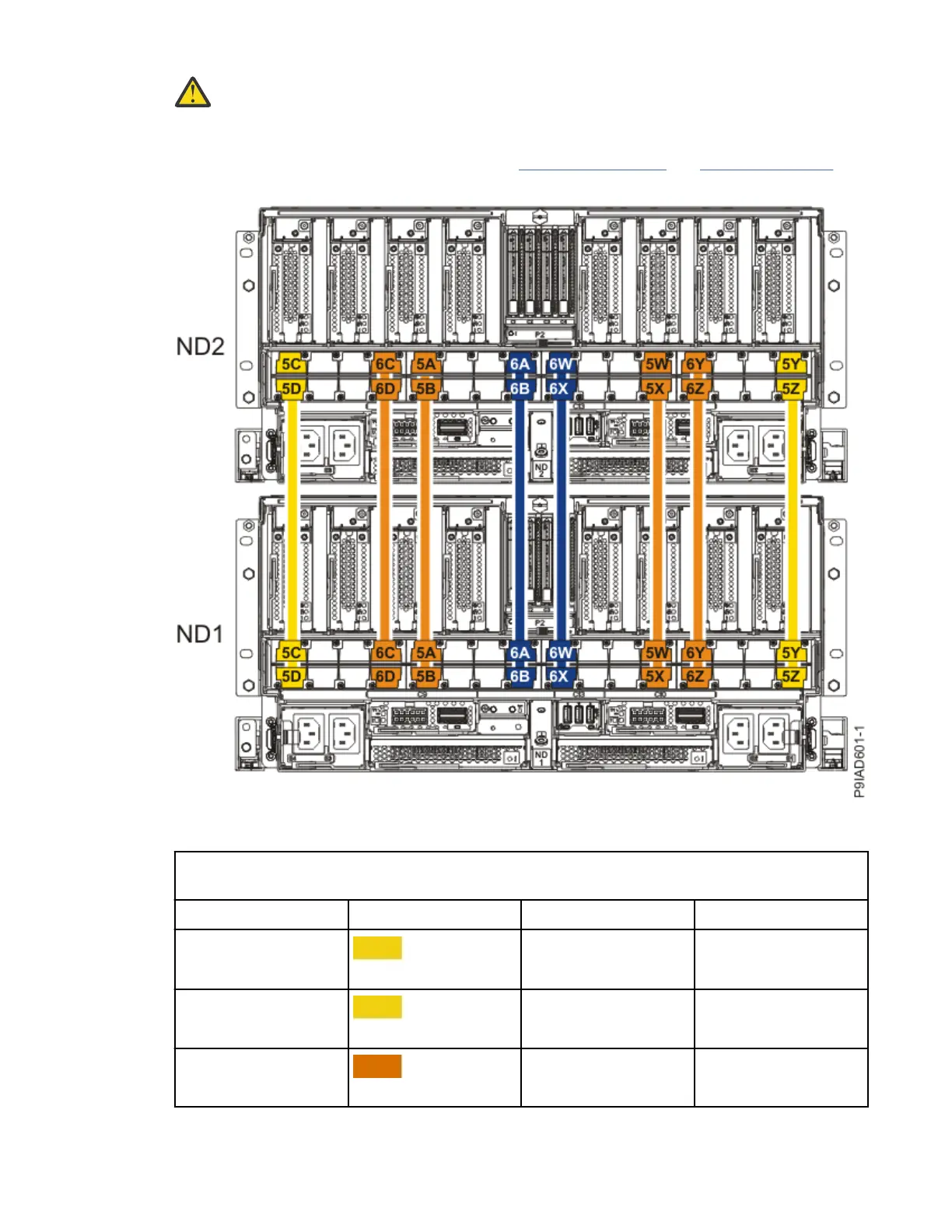

Figure 27. Cabling a Two Node
Conîš³guration
Table 2. Cabling a Two Node
Conîš³guration. Each connection that is shown in the diagram
represents a pair of SMP cables.
Cable Cable type and length From To
5C 880 mm (2.9
ft)
ND1-P1-T1 ND2-P1-T1
5D 880 mm (2.9
ft)
ND1-P1-T2 ND2-P1-T2
6C 1005 mm (3.3
ft)
ND1-P1-T7 ND2-P1-T7
Cables 29
