Chapter 6. IBM System x3850 X5 and x3950 X5 273
2. In the Loading VMware Hypervisor panel, press Shift+O when the progress bar is
displayed.
3. Enter the following command at the prompt:
esxcfg-advcfg -k TRUE allowInterleavedNUMAnodes
4. After the system boots, connect to the system using the vSphere Client.
5. Select the Configuration tab of the host and click Advanced Settings under Software, as
shown in Figure 6-51.

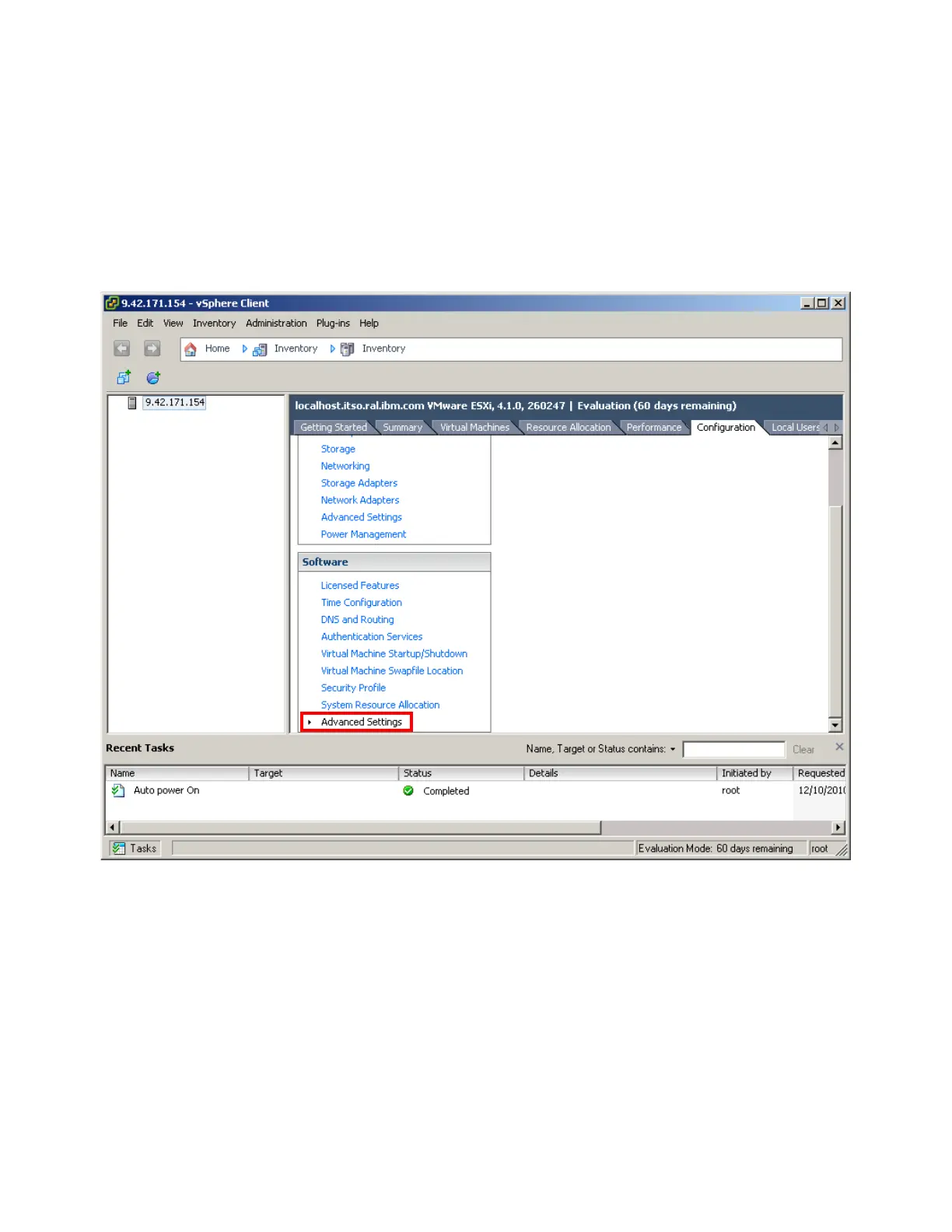

Figure 6-51 Advanced Settings in vSphere Client
6. Click VMkernel and select the check box next to VMkernel
Boot.allowInterleavedNUMAnodes, as shown in Figure 6-52 on page 274.
