Chapter 6. IBM System x3850 X5 and x3950 X5 281

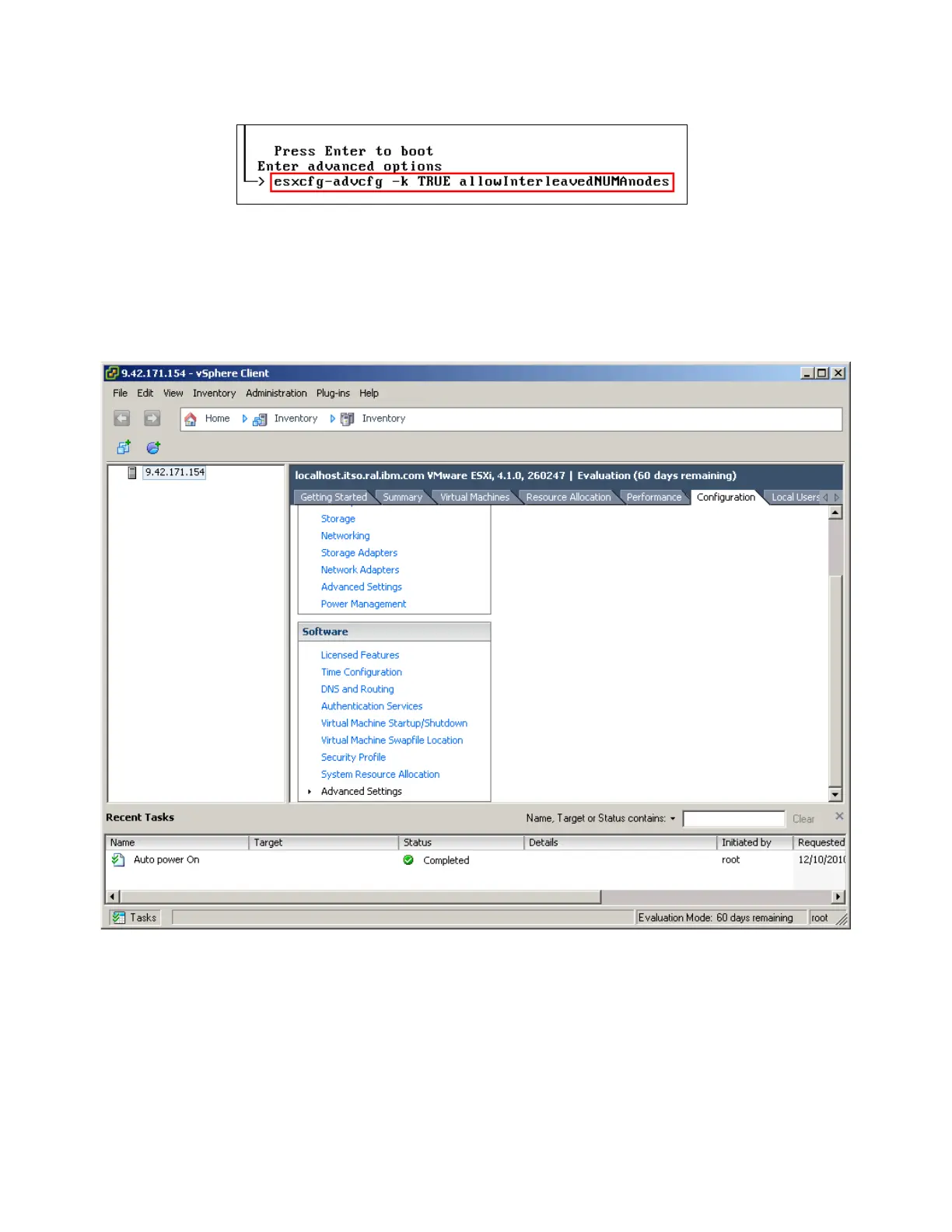

Figure 6-63 Loading VMware Hypervisor boot command
13.Press Enter after the command has been entered. Press Enter again to continue to boot.
14.After the system boots, connect to it using the vSphere Client.
15.Select the Configuration tab of the host and click Advanced Settings under the
Software panel, as shown in Figure 6-64.
Figure 6-64 Advanced Settings in vSphere Client
16.Click VMkernel in the left pane and select
VMkernel.Boot.allowInterleavedNUMAnodes, as shown in Figure 6-65 on page 282.
Click OK when finished. This step concludes the installation process.
