Chapter 9. Management 489

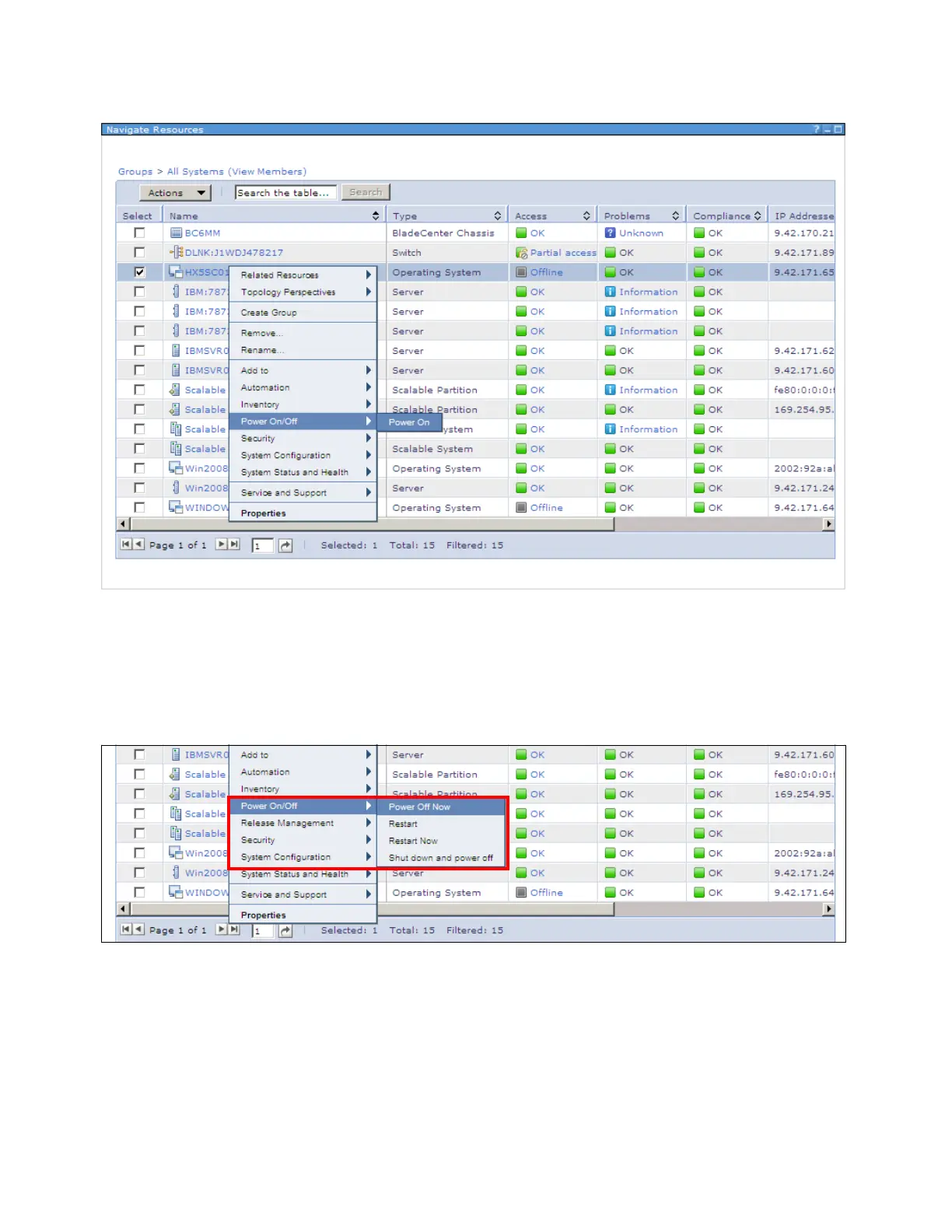

Figure 9-40 Powering on a complex via the operating system object
2. Click OK when the Task Launch Dialog pane appears to run the task immediately.
The system powers on normally. The power control menus within IBM Systems Director are
adaptive, which means that they change based on the power state of the system. Figure 9-41
shows the available options when the same system is powered on.
Figure 9-41 Power off controls for the operating system object
Viewing the installed hardware and software on a complex
Complete these steps to view information pertaining to the hardware and software
components that are installed in a complex:
1. Select Navigate Resources ï‚® All Systems in the Groups (View Members) view.
2. Right-click the respective scalable partition object, select Related Resources, and select
the hardware component for which you want to view the information.
