Chapter 7. Advanced maintenance, troubleshooting, and diagnostics 337
There is another check box at the bottom of the window (Transfer files but do not activate
them (transfer later). Check this check box if you want to activate the new firmware at a
later time. Then click Transfer... to continue. You will see the window shown in Figure 7-7.

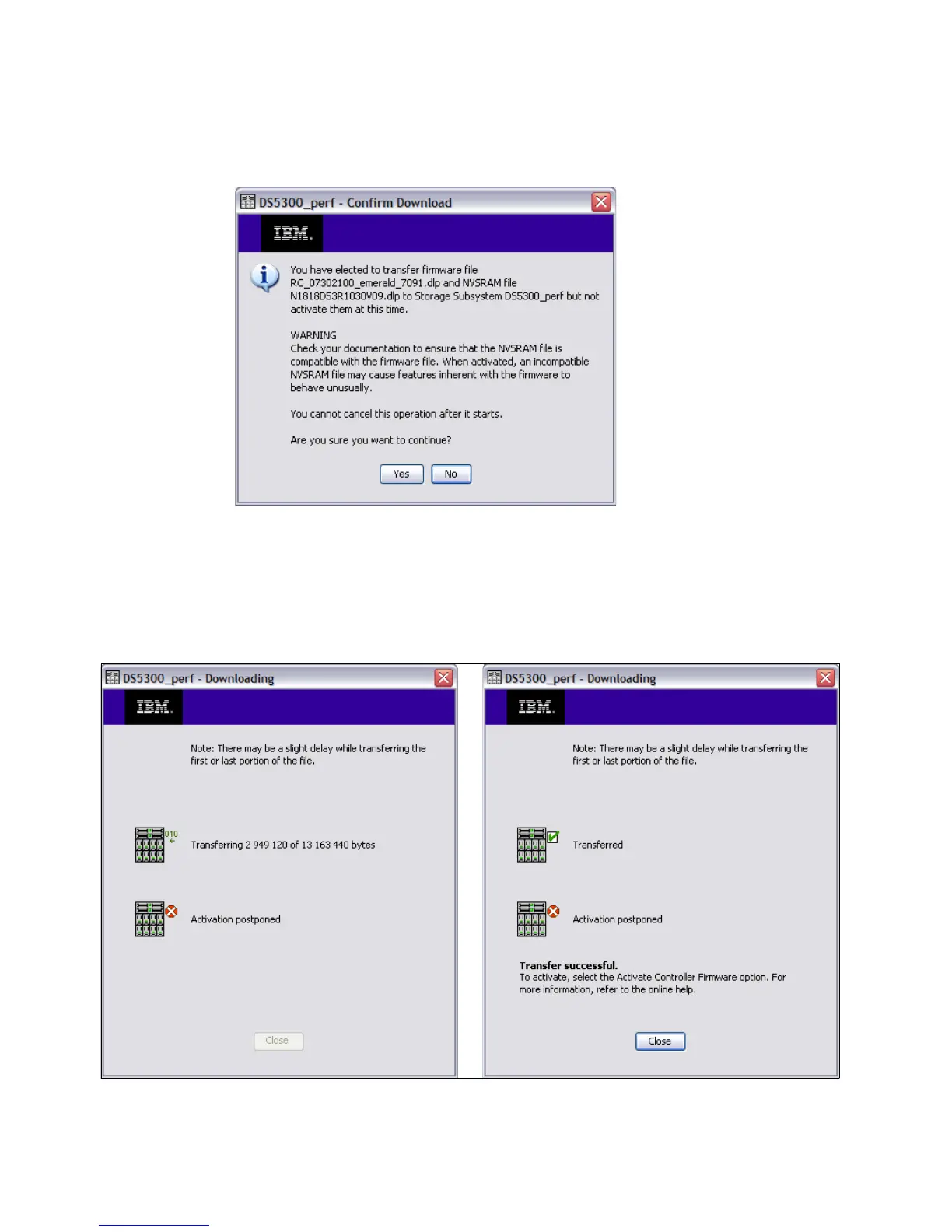

Figure 7-7 Firmware download confirmation
This window instructs you to confirm the firmware and NVSRAM download (because the
process cannot be cancelled after it begins). Confirm by clicking Yes. The
firmware/NVSRAM transfer begins and you can watch the progress. When the process
finishes, the Transfer Successful message is displayed, as shown in Figure 7-8. Click
Close.
Figure 7-8 Firmware/NVSRAM download finished
3. After clicking Close, you are back in the Subsystem Management window.
