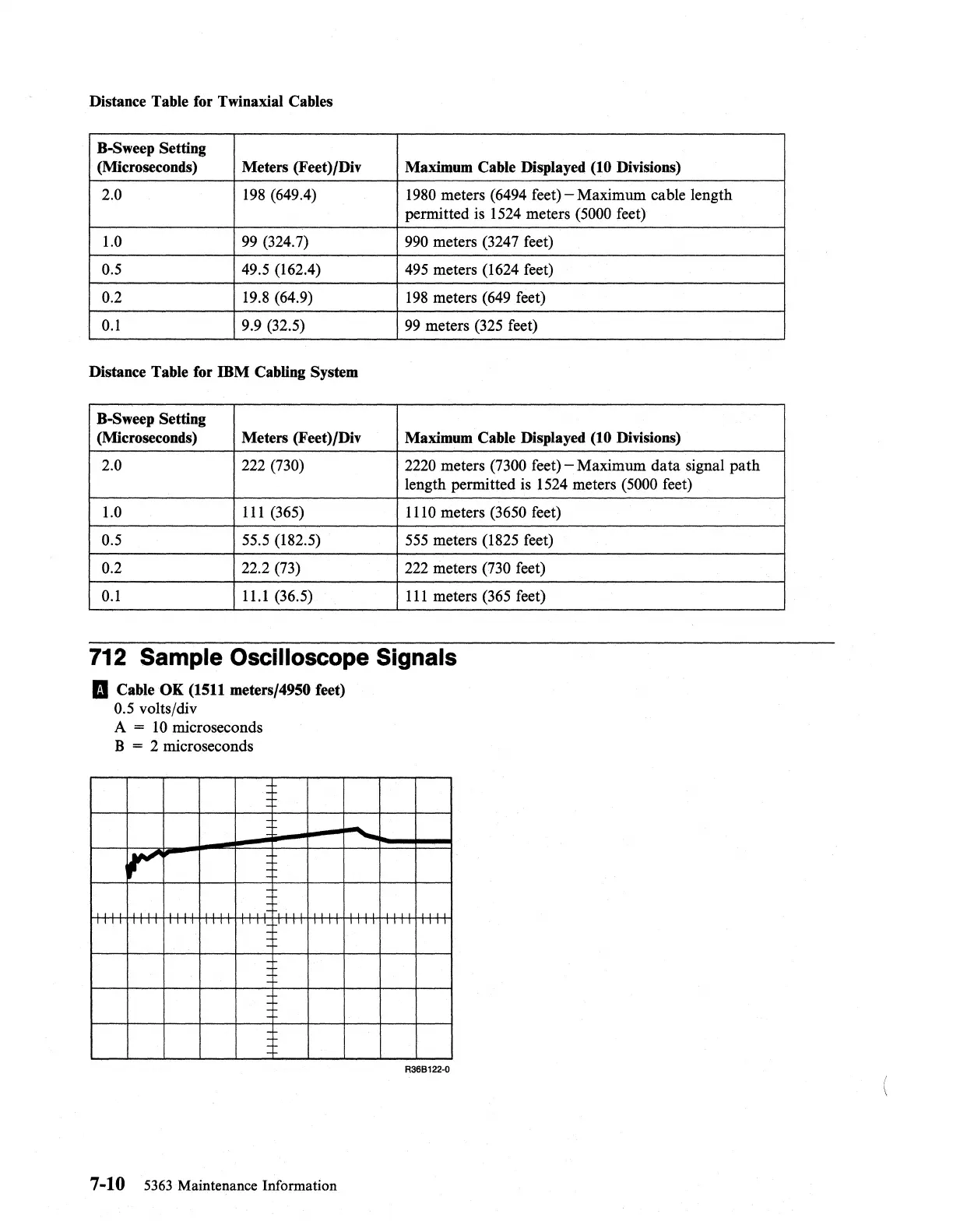

Distance
Table
for
Twinaxial
Cables
B-Sweep
Setting
(Microseconds)
Meters
(Feet)/Div
Maximum
Cable
Displayed
(10
Divisions)
2.0
198
(649.4)
1980 meters (6494 feet) - Maximum cable length
permitted is 1524 meters
(5000 feet)
1.0
99 (324.7)
990 meters (3247 feet)
0.5
49.5 (162.4) 495 meters (1624 feet)
0.2
19.8 (64.9)
198
meters (649 feet)
0.1
9.9 (32.5) 99 meters (325 feet)
Distance
Table
for
mM
Cabling
System
B-8weep Setting
(Microseconds)
Meters
(Feet)/Div
Maximum
Cable
Displayed
(10
Divisions)
2.0 222 (730) 2220 meters (7300 feet) - Maximum
data
signal
path
length permitted is 1524 meters (5000 feet)
1.0
III
(365)
1110 meters (3650 feet)
0.5
55.5 (182.5)
555 meters (1825 feet)
0.2 22.2 (73) 222 meters (730 feet)
0.1
11.1
(36.5)
111
meters (365 feet)
712 Sample Oscilloscope Signals
II
Cable
OK
(1511
meters/4950 feet)
0.5 volts/div
A
=
10
microseconds
B
= 2 microseconds
"
I-~I
'_~'
7-10
5363
Maintenance Information
-
~
R36B122-O
