IBM System/36 Maintenance Information Manual

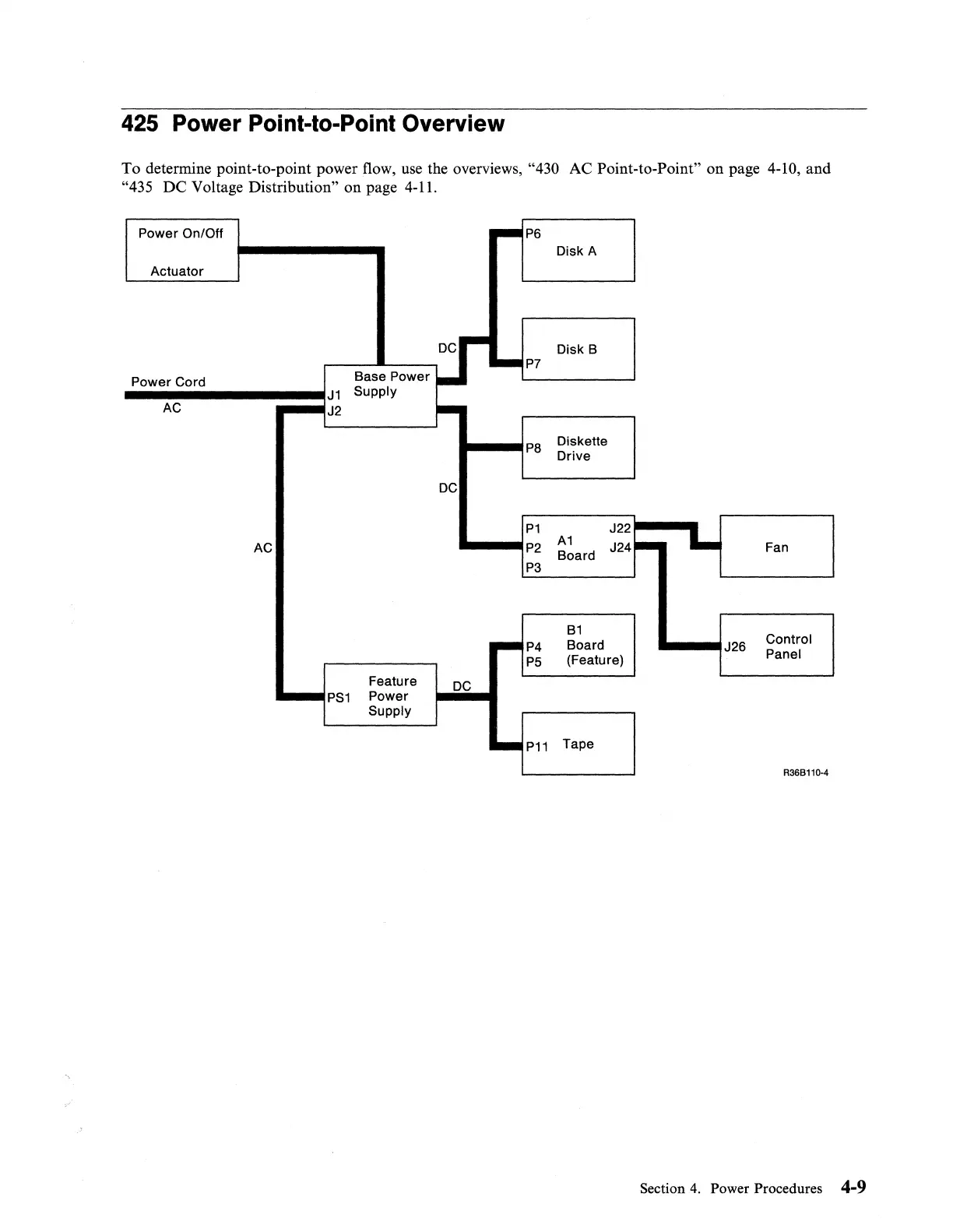

425 Power Point-to-Point Overview
To determine point-to-point power flow, use the overviews, "430 AC Point-to-Point" on page 4-10, and
"435 DC Voltage Distribution" on page 4-11.
Power OnlOff
-
P6
Disk A
Actuator
DC ,..
Disk B
-
P7
Power Cord
Base
Power
-
J1
Supply
AC
J2
-
P8
Diskette
Drive
DC
P1
J22
L-
AC P2
A1
J24
~
Fan
Board
P3
B1
Control
-
P4
Board
J26
Panel
P5
(Feature)
Feature
DC
PS1
Power
Supply
-
P11
Tape
R36B110-4
Section 4. Power Procedures 4-9
