IBM System/36 Maintenance Information Manual

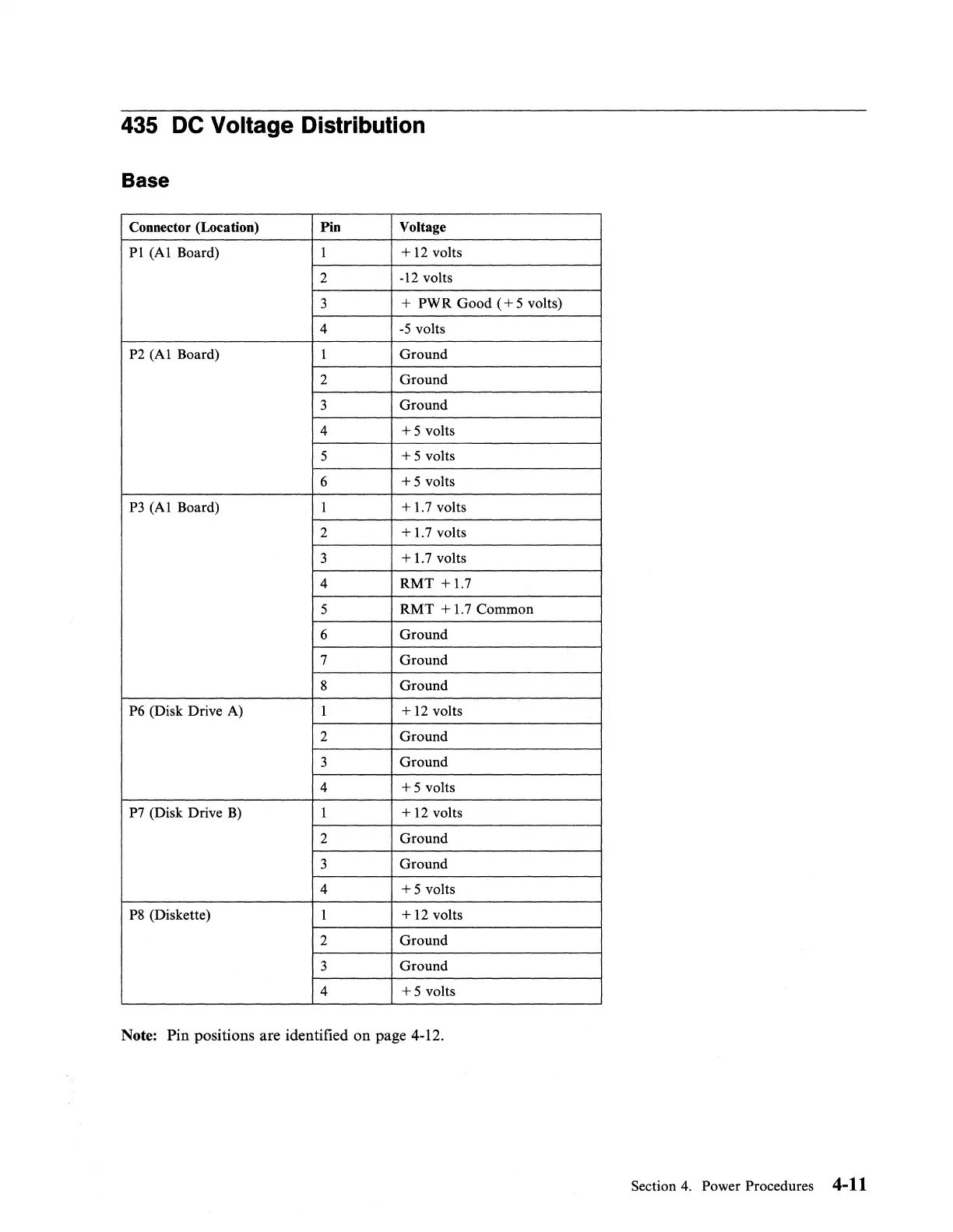

435 DC Voltage Distribution
Base
Connector (Location) Pin Voltage
PI (AI Board) 1 + 12 volts
2
-12 volts
3
+ PWR Good ( + 5 volts)
4 -5 volts
P2 (AI Board) 1 Ground
2 Ground
3
Ground
4 + 5 volts
5
+ 5 volts
6
+ 5 volts
P3 (AI Board) 1 + 1.7 volts
2
+ 1.7 volts
3
+ 1.7 volts
4
RMT +1.1
5 RMT + 1.7 Common
6 Ground
7 Ground
8
Ground
P6 (Disk Drive
A) 1 + 12 volts
2
Ground
3
Ground
4 + 5 volts
P7 (Disk Drive B) 1 + 12 volts
2
Ground
3
Ground
4 + 5 volts
P8 (Diskette) 1 + 12 volts
2
Ground
3
Ground
4 + 5 volts
Note: Pin positions are identified on page 4-12.
Section 4. Power Procedures 4-11
