IBM System/36 Maintenance Information Manual

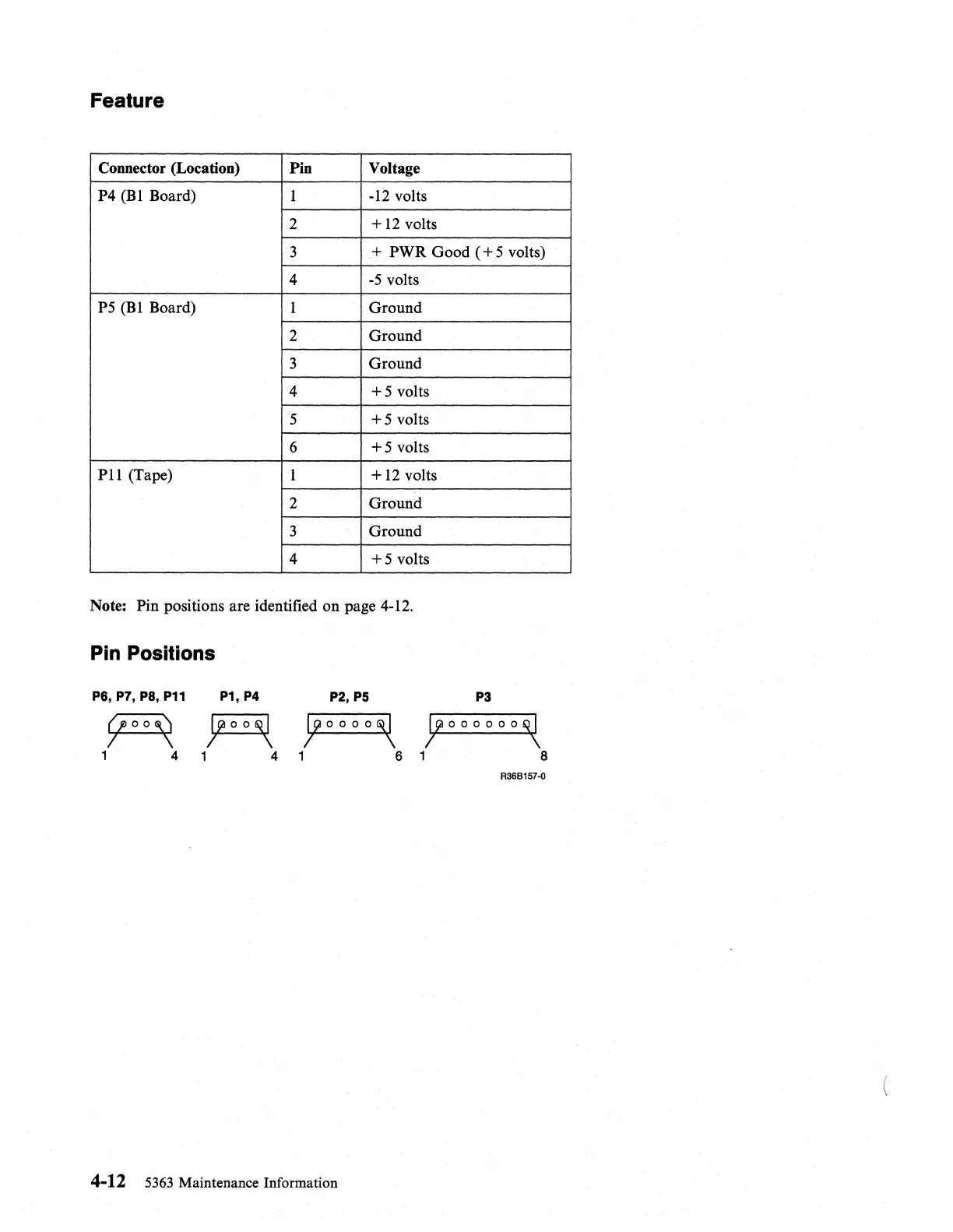

Feature
Connector (Location)
Pin
Voltage
P4 (BI Board)
I
-12 volts
2 +
12 volts
3
+ PWR Good ( + 5 volts)
4
-5 volts
P5 (BI Board) I Ground
2 Ground
3
Ground
4
+5 volts
5
+5 volts
6
+5 volts
PH (Tape)
1
+
12 volts
2 Ground
3 Ground
4
+5 volts
Note: Pin positions are identified on page
4-12.
Pin Positions
P6, P7, P8, P11 P1,P4
P2,P5
P3
~R
yoooo~ yoooooo~
144
1 6 1 8
R36B157·0
4-12 5363 Maintenance Information
