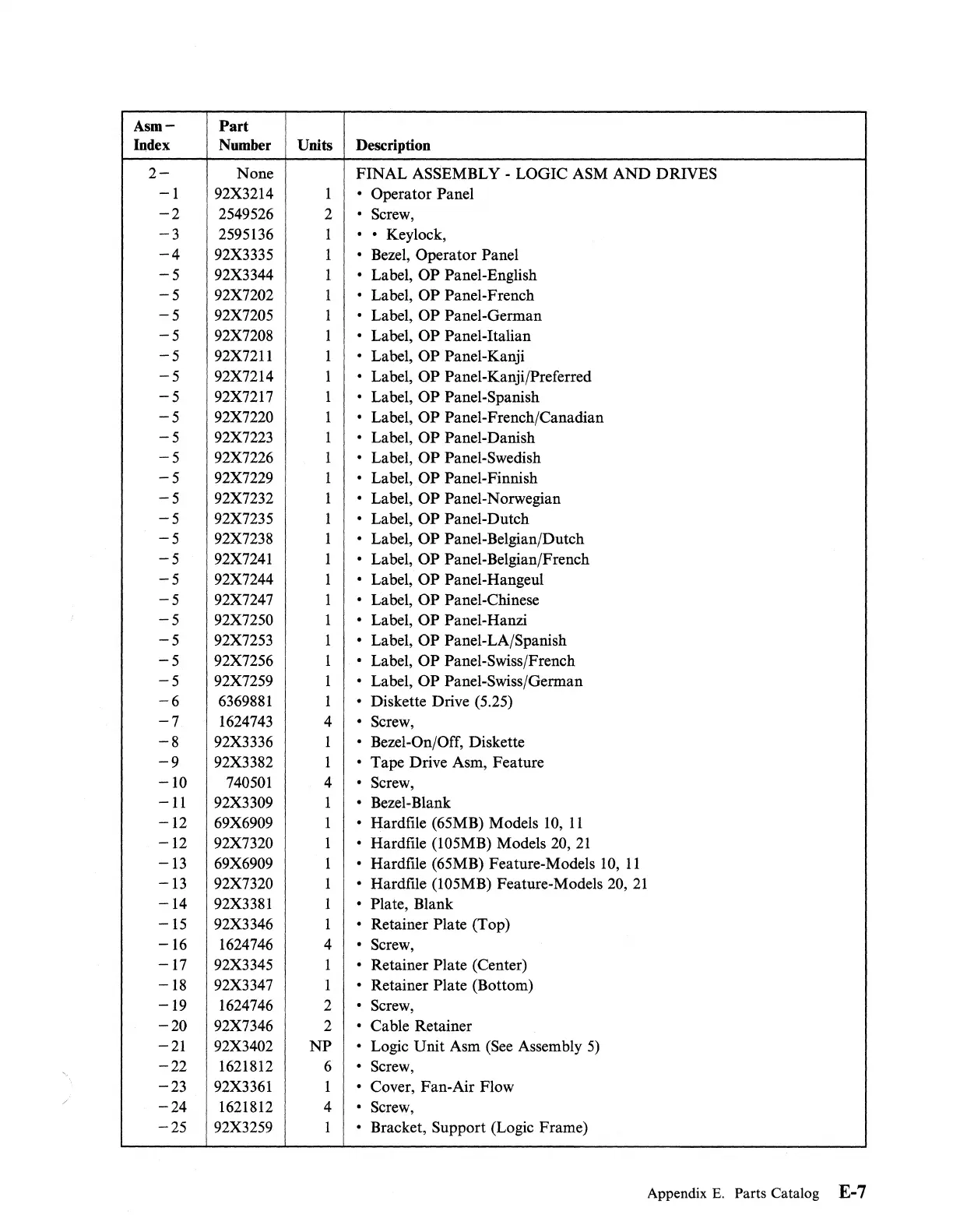

Asm-
Part
Index
Number Units Description
2-
None
FINAL
ASSEMBLY -
LOGIC
ASM
AND
DRIVES
-1
92X3214 1
• Operator Panel
-2
2549526 2
• Screw,
-3
2595136 1 • • Keylock,
-4
92X3335 1
• Bezel,
Operator
Panel
-5
92X3344
1
• Label,
OP
Panel-English
-5
92X7202 1
• Label,
OP
Panel-French
-5
92X7205 1
• Label,
OP
Panel-German
-5
92X7208 1
• Label,
OP
Panel-Italian
-5
92X7211 1
• Label,
OP
Panel-Kanji
-5
92X7214 1
• Label,
OP
Panel-Kanji/Preferred
-5
92X7217 1
• Label,
OP
Panel-Spanish
-5
92X7220 1
• Label,
OP
Panel-French/Canadian
-5
92X7223 1
• Label,
OP
Panel-Danish
-5
92X7226 1
• Label,
OP
Panel-Swedish
-5
92X7229 1
• Label,
OP
Panel-Finnish
-5
92X7232 1
• Label,
OP
Panel-Norwegian
-5
92X7235 1
• Label,
OP
Panel-Dutch
-5
92X7238 1
• Label,
OP
Panel-Belgian/Dutch
-5
92X7241 1
• Label,
OP
Panel-Belgian/French
-5
92X7244 1
• Label,
OP
Panel-Hangeul
-5
92X7247 1
• Label,
OP
Panel-Chinese
-5
92X7250 1
• Label,
OP
Panel-Hanzi
-5
92X7253 1
• Label,
OP
Panel-LA/Spanish
-5
92X7256 1
• Label,
OP
Panel-Swiss/French
-5
92X7259
1
• Label,
OP
Panel-Swiss/German
-6
6369881 1
• Diskette Drive (5.25)
-7
1624743 4
• Screw,
-8
92X3336 1
• Bezel-On/Off, Diskette
-9
92X3382 1
• Tape Drive Asm, Feature
-10
740501 4
• Screw,
-11
92X3309
1
• Bezel-Blank
-12
69X6909 1
• Hardfile (65MB) Models
10,
11
-12
92X7320 1
• Hardfile (105MB) Models 20,
21
-13
69X6909 1
• Hardfile (65MB) Feature-Models 10,
11
-13
92X7320 1 • Hardfile (105MB) Feature-Models 20,
21
-14
92X3381 1
• Plate, Blank
-15
92X3346 1
• Retainer Plate (Top)
-16
1624746 4
• Screw,
-17
92X3345 1
• Retainer Plate (Center)
-18
92X3347
1
• Retainer Plate (Bottom)
-19
1624746 2
• Screw,
-20
92X7346 2
• Cable Retainer
-21
92X3402
NP
• Logic
Unit
Asm (See Assembly
5)
-22
1621812
6
• Screw,
-23
92X3361 1
• Cover, Fan-Air Flow
-24
1621812 4
• Screw,
-25
92X3259 1 • Bracket, Support (Logic Frame)
Appendix
E.
Parts Catalog E-7
