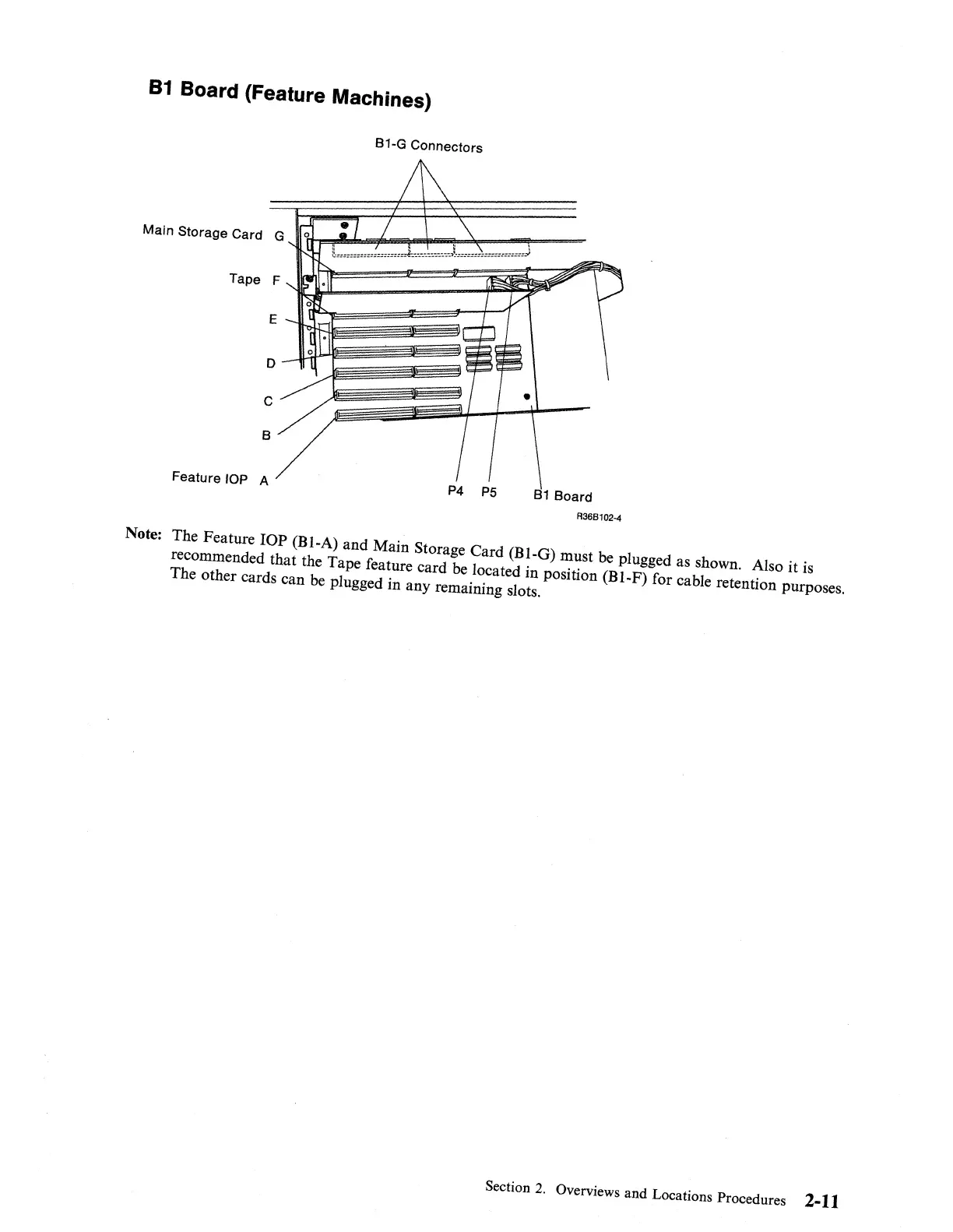

B1
Board (Feature Machines)
B1-G Connectors
Main
Storage Card
G
Tape
F
E
D
C
'"
B
Feature
lOP
A
P4
PS
B1
Board
A36B
1 02-4
Note: The Feature lOP (BI-A) and Main Storage Card (BI-G) must be plugged as shown. Also
it
is
recommended that the Tape feature card
be
located in position (BI-F) for cable retention purposes.
The other cards can
be
plugged in any remaining slots.
Section
2.
Overviews and Locations Procedures 2-11
