IBM System/36 Maintenance Information Manual

J21
Manufacturing
Test Connector
J22
Fan
o
o
o
B1-G Connectors
o
o
J24
Operator Panel
o
o
J25
Diskette
P3
P1
J23
Work
Station
~~~--------------~L-~----~~
Disk Disk
A B
Not
Used
R36B152-2

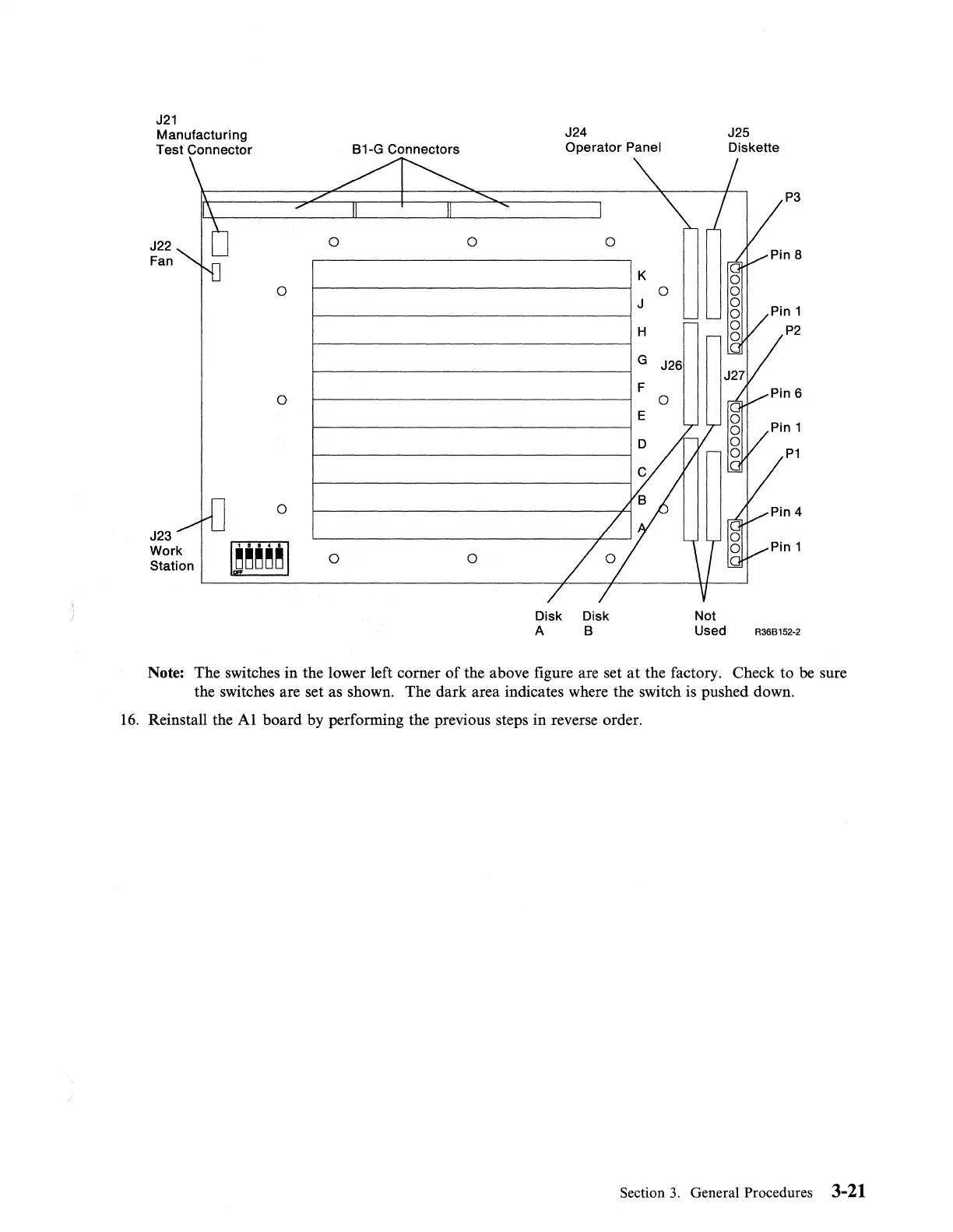

Note: The switches in the lower left comer of the above figure are set at the factory_ Check to be sure
the switches are set as shown. The dark area indicates where the switch
is pushed down.
16. Reinstall the Al board by performing the previous steps in reverse order.
