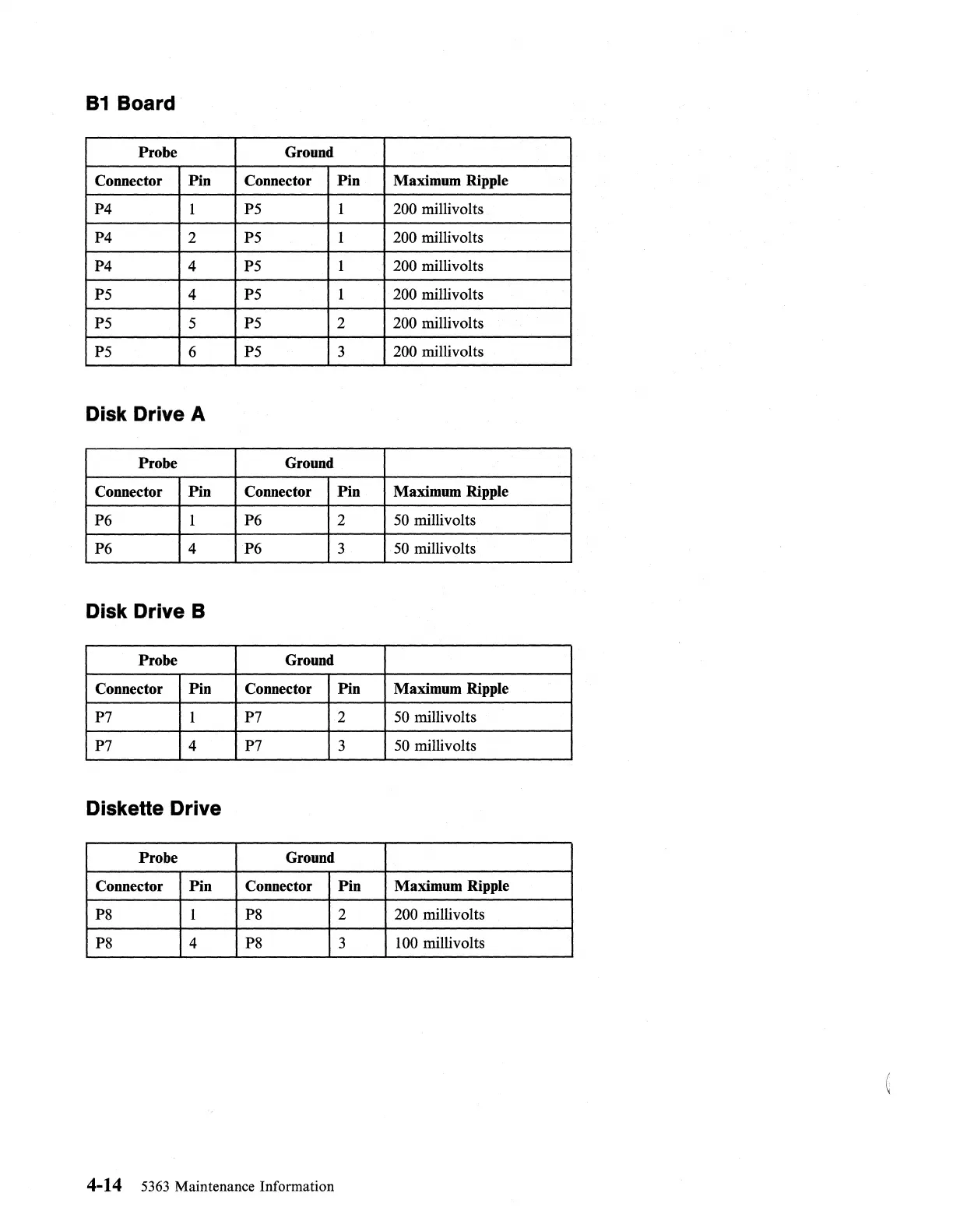

B1
Board
Probe Ground
Connector Pin Connector
Pin Maximum Ripple
P4
1
P5
1 200 millivolts
P4
2
P5
1 200 millivolts
P4
4
P5
1 200 millivolts
P5
4
P5
1 200 millivolts
P5
5
P5
2 200 millivolts
P5
6
P5
3
200 millivolts
Disk Drive A
Probe Ground
Connector
Pin Connector
Pin
Maximum Ripple
P6
1
P6
2 50 millivolts
P6
4
P6
3 50 millivolts
Disk Drive B
Probe
Ground
Connector Pin Connector
Pin Maximum Ripple
P7
1
P7
2
50 millivolts
P7
4
P7
3 50 millivolts
Diskette Drive
Probe Ground
Connector Pin Connector
Pin
Maximum Ripple
P8
1
P8
2 200 millivolts
P8 4 P8 3 100 millivolts
4-14
5363
Maintenance Information
