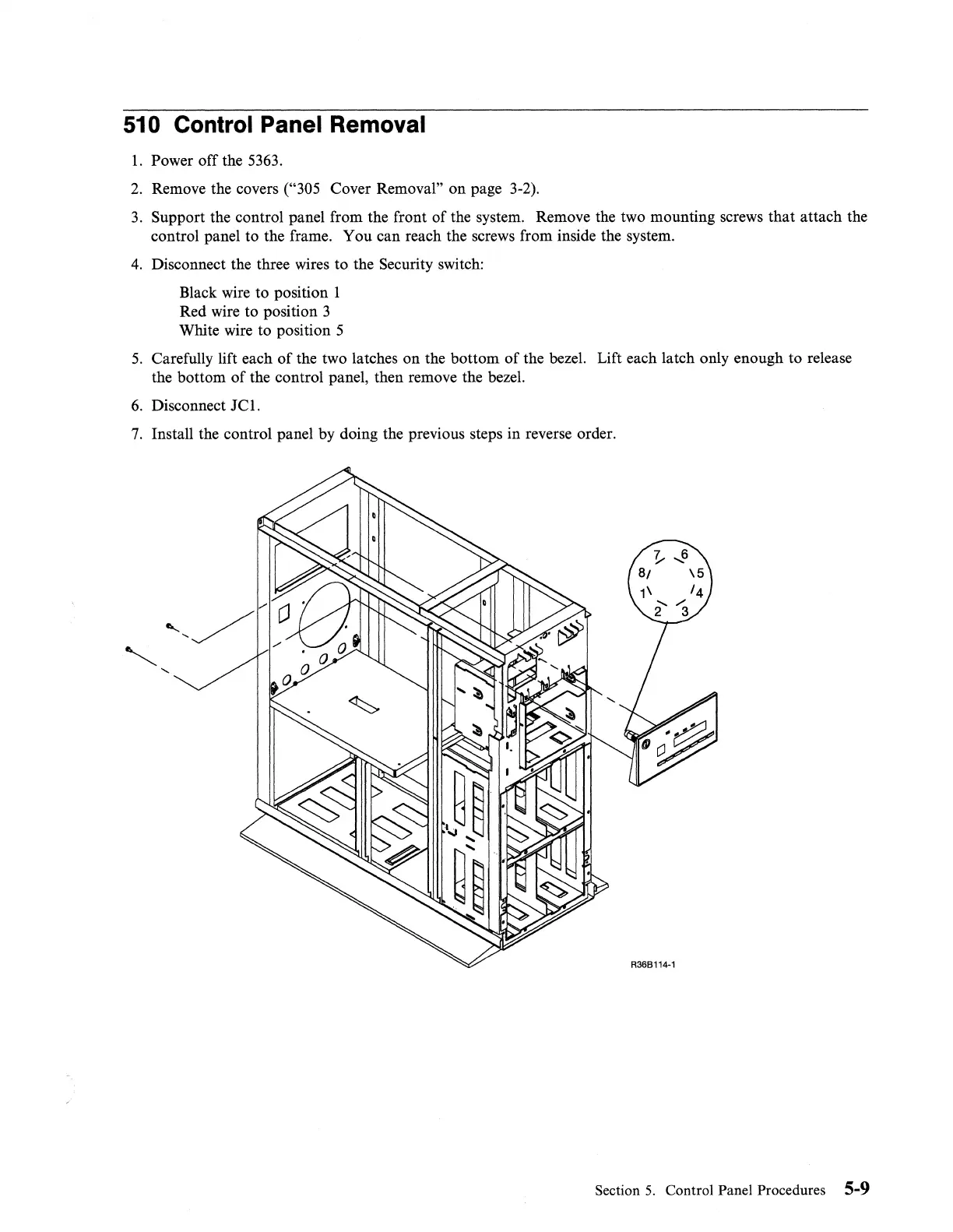

510 Control Panel Removal
1.
Power off the 5363.
2.
Remove the covers ("305 Cover Removal" on page 3-2).
3.
Support the control panel from the front
of
the system. Remove the two mounting screws that attach the
control panel to the frame. You can reach the screws from inside the system.
4.
Disconnect the three wires to the Security switch:
Black wire to position
I
Red wire to position 3
White wire to position 5
5.
Carefully lift each
of
the two latches on the bottom
of
the bezel. Lift each latch only enough to release
the bottom
of
the control panel, then remove the bezel.
6.
Disconnect JCI.
7.
Install the control panel
by
doing the previous steps in reverse order.
Section
5.
Control Panel Procedures 5-9
