7. Touch the static-protective package that contains the host port adapter to any unpainted metal
surface on the storage subsystem; then, remove the adapter from the package.
8. Align the host port adapter as shown in the following illustration:
9. Press the card in the connector and tighten the four captive fasteners.
10. Use the alignment tab to align the cover plate that comes with the optional host port adapter.
11. Secure the cover plate with two screws.
12. Install the cover (see “Removing and installing a cover” on page 91).
13. Insert the controller into the chassis.
a. Make sure that the release levers on the controller are in the open position.
b. Slide the controller into the bay until it stops.
c. Push the release levers to the closed position.
14. Reconnect the cables that you disconnected in step 3 on page 97.
15. Turn on the storage subsystem.
Host port adapter
filler panel
Screws
Alignment tab

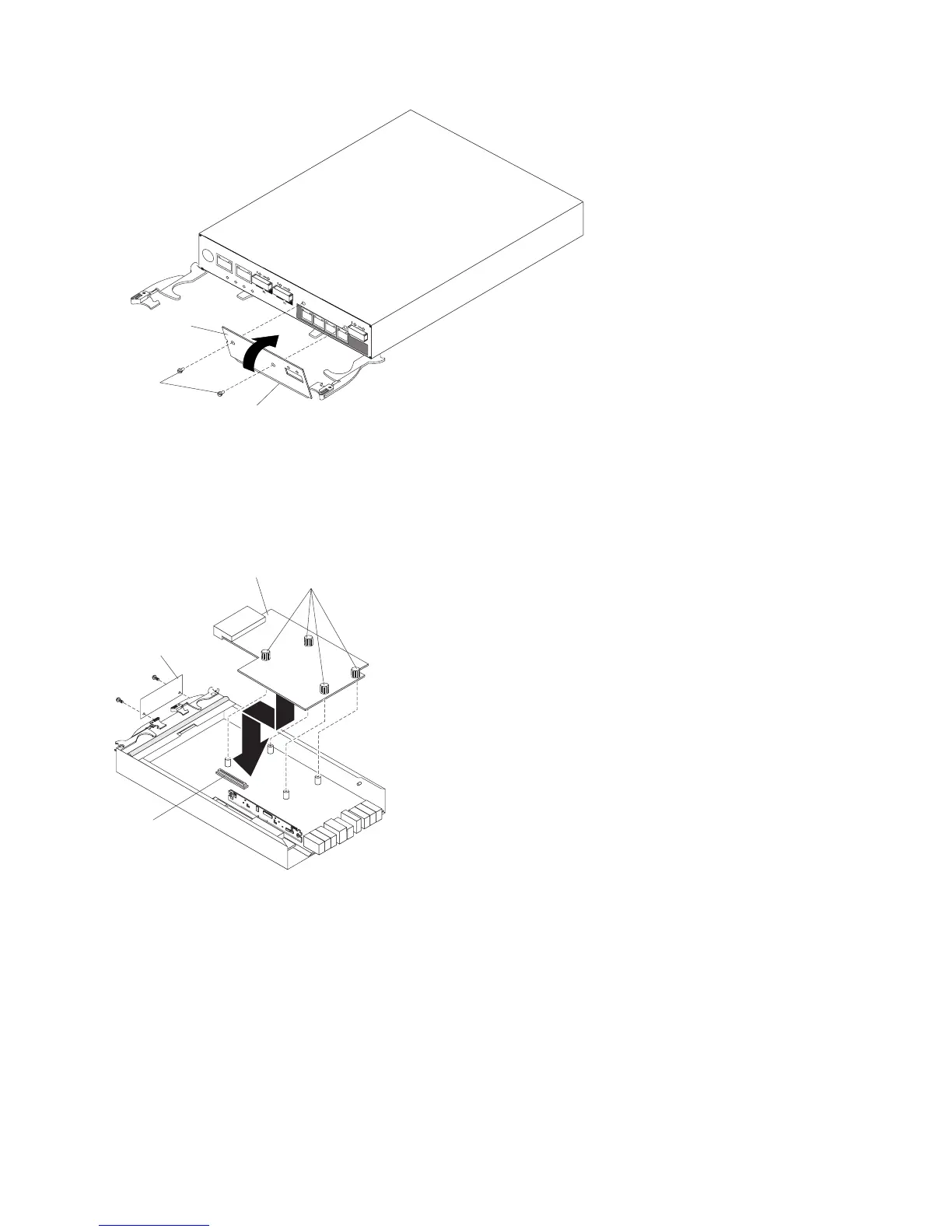

Figure 65. Removing the host port adapter filler panel
Host port
adapter
Captive
fasteners
Cover
plate
Connector
Figure 66. Installing a host port adapter
98 IBM System Storage DCS3700: Installation, User, and Maintenance Guide
